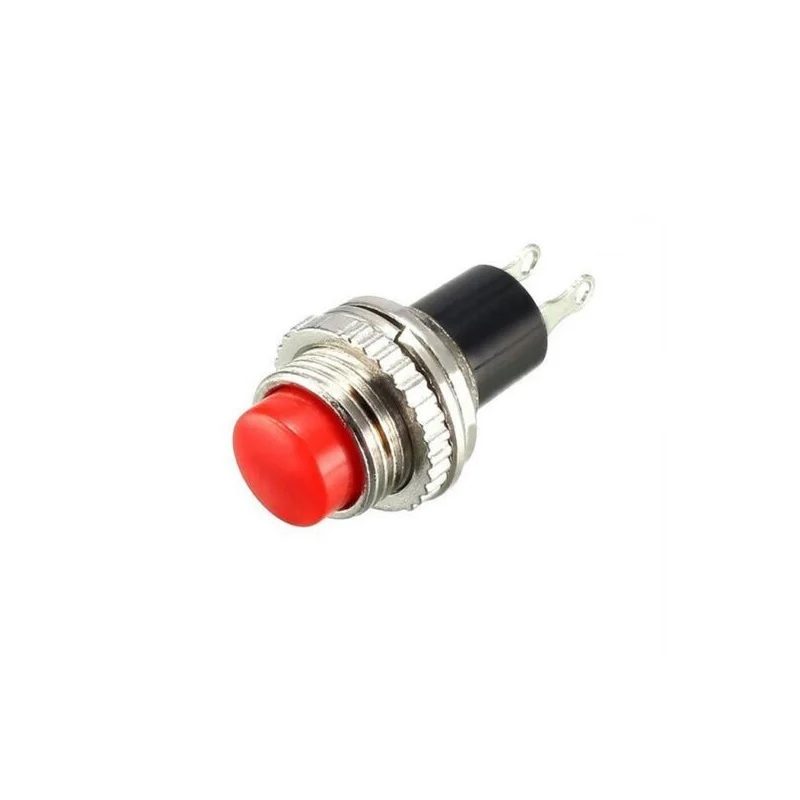

DS-316 Push Button Switch 250V 0.5A 2Pins 10mm
The DS‑316 is a mini SPST momentary push-button switch with a 10 mm threaded bezel and nut for secure panel mounting. Featuring OFF‑ON action, low contact resistance, and rated for 0.5 A at 250 VAC, it is built for dependable performance in consumer electronics, industrial controls, and DIY panels.
Features:
- SPST OFF‑ON momentary action with tactile click and automatic reset.
- Rated for 0.5 A at 250 VAC (peak up to 1 A) with ≤100 mΩ contact resistance.
- Threaded 10 mm bezel with locking nut allows firm panel installation.
- High insulation resistance ≥100 MΩ and dielectric strength up to 1500 VAC.
- Durable metal/plastic housing rated IP40 with operating temperature from –25 °C to +85 °C.
- Life expectancy of ≥10 000 electrical cycles and ≥200 000 mechanical operations.
Specifications:
| Parameter | Value |
|---|---|
| Model: | DS‑316 |
| Switch Type: | SPST momentary (OFF‑(ON)) |
| Rated Voltage: | 250 VAC |
| Rated Current: | 0.5 A (1 A peak) |
| Contact Resistance: | ≤ 100 mΩ |
| Insulation Resistance: | ≥ 100 MΩ |
| Dielectric Strength: | 1500 VAC, 50 Hz for 1 min |
| Mechanical Life: | ≥ 200,000 cycles |
| Electrical Life: | ≥ 10,000 cycles |
| Mounting Hole Diameter: | 10 mm |
| Pins: | 2 solder terminals |
| Operating Temperature: | –25 °C to +85 °C |
Applications:
- Panel-mounted momentary switches in electronic devices.
- Reset or test buttons in industrial and consumer equipment.
- Control panels for lighting, machinery, or appliances.
- DIY electronics, maker projects, and instrument panels.
- Prototyping and repair tasks requiring compact tactile switches.
Package Contents:
- 1x DS-316 Push Button Switch 250V 0.5A 2Pins 10mm
