DT-9205A Digital Multimeter

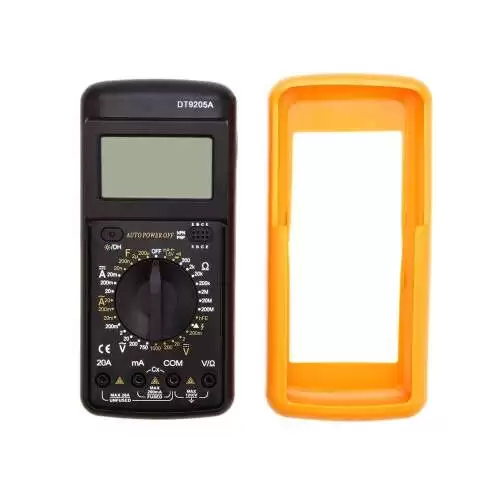

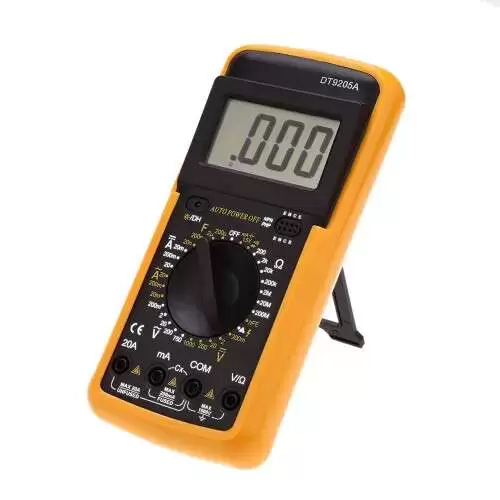

The DT-9205A is a handheld digital multimeter that provides accurate readings for both AC and DC measurements. It features an LCD display, a rotary switch for easy selection of measurement functions, and a protective casing for durability. This multimeter is designed for general-purpose electrical testing in households, laboratories, and workshops.
Features:
- Wide Measurement Range where can measure AC/DC voltage, current, resistance, capacitance, and more.
- Auto & Manual Ranging where allows flexibility in choosing measurement ranges.
- Diode & Transistor Testing where useful for checking semiconductor components.
- Continuity Buzzer where alerts the user when there is a closed circuit.
- Data Hold Function where freezes the displayed measurement for easy reading.
- Overload Protection where prevents damage to the meter in case of excess current or voltage.

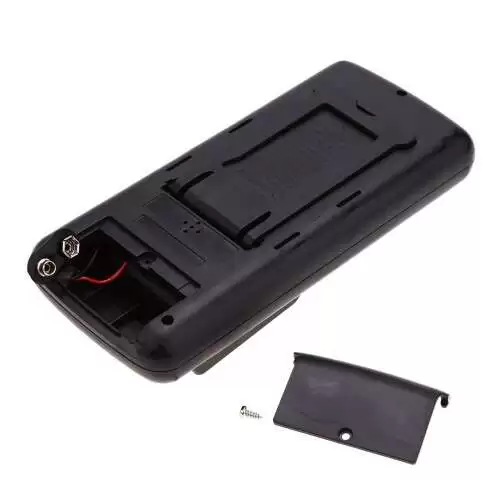

- Battery-Powered where uses a 9V battery, making it portable and convenient.
- Auto Power Off where saves battery life by turning off when not in use.
- Large LCD Display where provides clear and easy-to-read measurements.
- Durable Design where comes with a protective casing for enhanced durability.
- Sturdy & Lightweight where compact design for easy handling and storage.
Specifications:
Parameter | Range |
---|---|
DC Voltage (VDC) | 200mV to 1000V |
AC Voltage (VAC) | 200V to 750V |
DC Current (A) | 200μA to 20A |
AC Current (A) | 200μA to 20A |
Resistance (Ω) | 200Ω to 200MΩ |
Capacitance (F) | 2nF to 200μF |
Transistor Test | Yes (hFE Test) |
Diode Test | Yes |
Continuity Buzzer | Yes |
Display Type | LCD (3 ½ digits, 1999 count) |
Battery | 9V (6F22) |
Weight | Approx. 350g |
Dimensions | 180 x 90 x 45mm |
Applications:
- Electronics Repair.
- Electrical Installations.
- Automotive Testing.
- DIY Projects.
- Household Appliance Maintenance.
- Laboratory & Industrial Use.

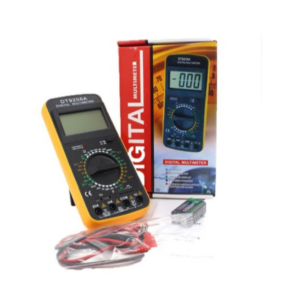

Package Contents:
- 1 X DT-9205A Digital Multimeter.
- 1 X Battery 9V.
- 1 X Instruction Manual.
- 2 X Test Lead.
