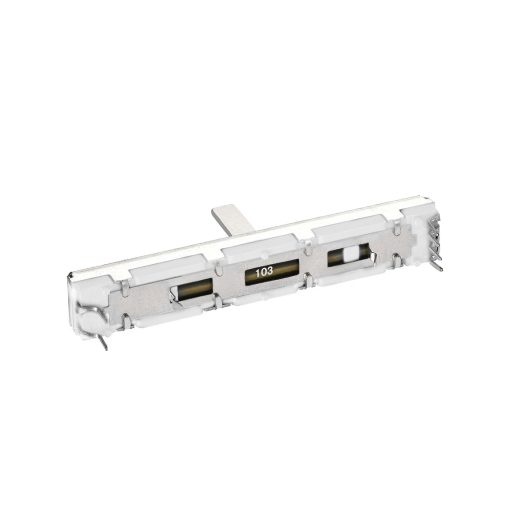

Dual Gang Linear Slide Potentiometer 10KΩ Travel Distance 45mm

Dual Gang Linear Slide Potentiometer 10KΩ Travel Distance 45mm

The Dual Gang Linear Slide Potentiometer 10KΩ Travel Distance 45mm is a matched dual-track slide potentiometer providing 10KΩ nominal resistance per gang with 45mm linear travel and a 15mm slider height, featuring an integrated dust cover for enhanced durability and a long mechanical life for consistent, repeatable manual control in audio and instrumentation applications.

Features

• Dual-gang matched construction providing two independent but matched resistance tracks for stereo or dual-channel control applications.
• 10KΩ nominal resistance per track.
• 45mm linear travel distance for fine, repeatable adjustment.
• 15mm slider height for low-profile panel and PCB mounting.
• Integrated dust cover for improved protection against contaminants and extended service life.
• Linear taper option available for true linear voltage division response.
• Long sliding life rating of 100000cycles.
• Low sliding noise and controlled residual resistance between terminals.
• Designed for PCB mounting with optional lever or frame accessories.

Specifications

Applications

• Stereo audio faders and mixing console controls.
• Matched dual-channel gain or level adjustment in audio equipment.
• User-adjustable voltage dividers in measurement and instrumentation panels.
• OEM control interfaces in industrial and test equipment requiring contaminant protection.
• Synthesizer, DJ equipment, and other musical instruments requiring precise, repeatable slider control.

Package Contents

• 1x Dual Gang Linear Slide Potentiometer 10KΩ Travel Distance 45mm.
