Features:
- This is a multifunctional tool kit that provides the necessary tools for the assembly of mechanical splices.
- It will bring you higher working efficiency.
- This fiber optic cleaver is available with a single fiber adapter for single-coated fibers from 250 to 900 microns.
- It is a simple operation for the user to remove or install the single fiber adapter and toggle between bulk split and single fiber split.
- The Pen-Type Finder is specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing, and continuity verification in an optical network during and after installation.
- Includes: Finding the breaking point, bad connections, bending, or cracking in fiber optic cables.
- Find OTDR faults.
- New Fiber Optic Cable Handle Optical Power Meter -70~10dBm FC SC Tester.
- Fixed Length 2 1 Guide Rail Slot: Can be used for inner cable stripping coating layer and positioning length Can be used to locate inner cable in optical fiber cutting.
- The Portable Optical Power Meter is a durable and accurate handheld meter designed for the installation, operation, and maintenance of fiber optic networks. It is a compact device with a backlight switch and auto power on/off capability. In addition, it provides an ultra-wide measurement range, high accuracy, user self-calibration function, and a universal port. Also, it displays linear indicators (mW) and non-linear indicators (dBm) on one screen at the same time.
Optical Power Meter DXL-40D Specifications
| Models | DXL-40D |
| Wavelength (nm) | (800nm to 1700nm) |
| Detector | InGaAs |
| measurement range (dBm) | – 70 ~ + 10dBm |
| Calibrated wave (nm) | 850,980,1270,1300,1310,1490,1550,1577,1625,1650 |
| Display Resolution | 0.01dBm |
| Power supply | Alkaline battery (2 AAA 1.5v batteries) (Not Included) |
| Battery operating time | 40 hours |
| Automatic shutdown Time | 10min |
| Operating temperature | -10~+60℃ |
| Storage temperature | -25~+70℃ |
| Relative humidity | 0 to 95% (no condensation) |
| Dimension (mm) | 190x90x28 |
Visual Fault Locator Specifications:
| Type | 1 | 10 | 20 | 30 | 50 |
| output power | > 1mW | > 10mW | > 20mW | > 30mW | > 50mW |
| wavelength | 650nm | ||||
| Connector | Universal Connector | ||||
| Battery | AA * 2 (Not Included) | ||||
| Storage Temperature | -20 — + 70℃ | ||||
| Working temperature | -10 — + 60℃ | ||||
| Dimensions | 170mmx26mmx20mm | ||||
FC-6S Optical Fiber Cleaver Specifications:
| Fashion model | FC-6S Optical Fiber Cleaver |
| Fiber Diameter | 125um |
| Coating Diameter | 250um~900um |
| Typical Cleave Angle | Within 1 Degree |
| Cutting Length | 9 – 16mm (Single Fiber-0.25mm Coating) 10 – 16mm (Single Fiber-0.9mm Coating) |
| Blade Life | 36,000 splits (3,000 per blade position) |
| Cleaver Dimensions | 65x76x61mm |

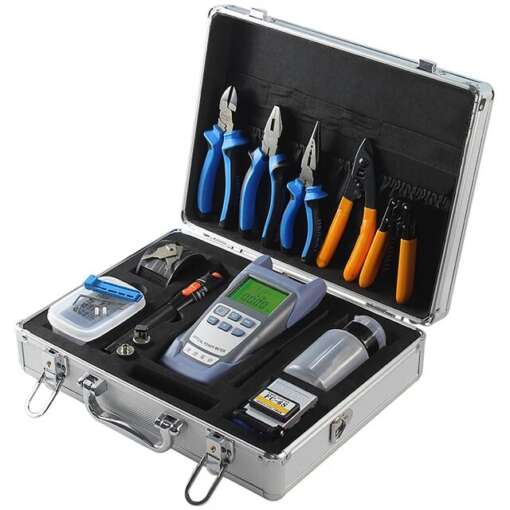

Package Included:
- Metal Bag
- Fixed-length blue device
- Fiber stripper
- FTTH drop cable stripper
- FC-6S Optical Fiber Cleaver
- Fiber cleaver package
- Dust-free paper
- Alcohol Bottle
- Visual Fault Locator
- Pen package
- Optical Power Meter DXL-40D
- Side cutting pliers; Long nose pliers
- Set of pliers
- Set of small Allen keys
