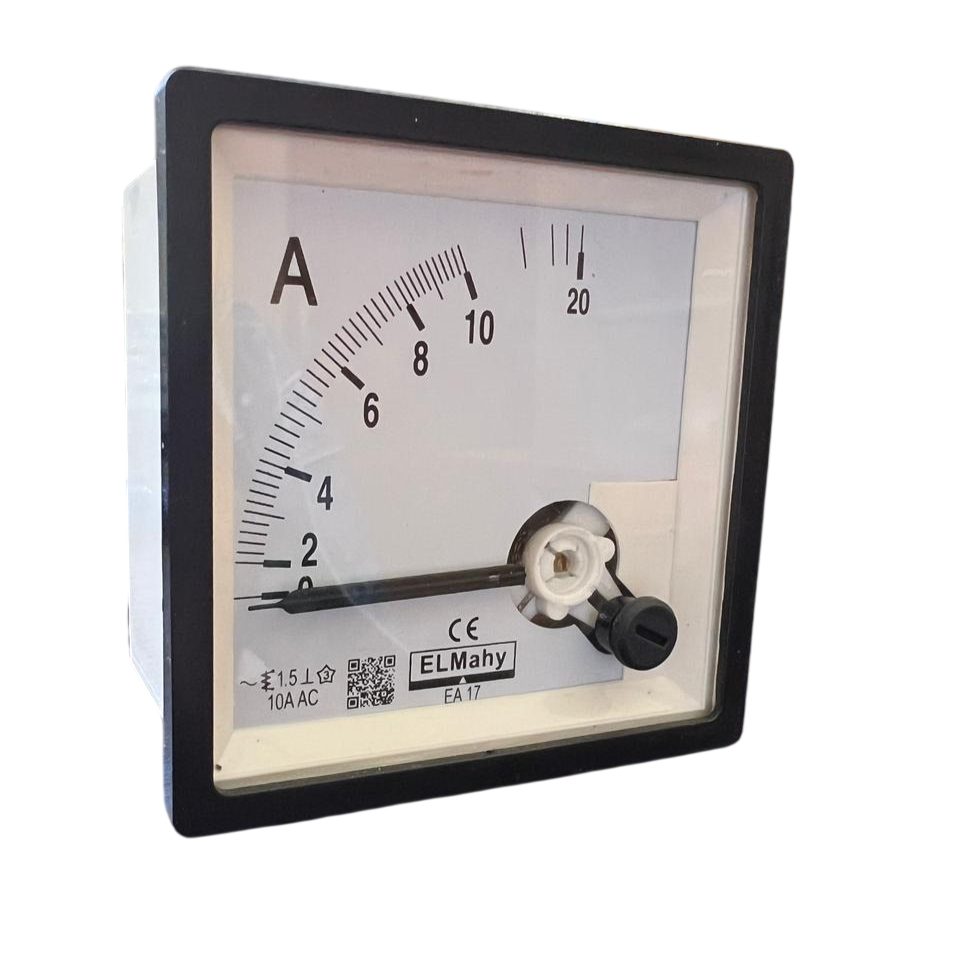

EA17 Analog Current Panel Meter 10/20 10A
The EA17 analog current panel meter is a robust industrial measuring instrument designed for monitoring AC current in electrical panels and distribution systems. It uses a moving-iron mechanism, making it suitable for accurate RMS measurement of alternating current in a wide range of applications.
This meter supports direct measurement up to 10A, and for higher currents such as 20A or more, it can be connected through a current transformer (CT). Its clear analog scale ensures quick visual monitoring, while its durable housing allows reliable operation in industrial and harsh environments.
Features:
- Analog needle display for real-time monitoring.
- Supports direct and CT-based current measurement.
- High durability for industrial environments.
- True RMS measurement capability.
- Easy panel mounting design.
- No external power supply required.
- Stable and long service life.
Specifications:
| Parameter | Value |
|---|---|
| Model | EA17 |
| Type | Analog Ammeter |
| Measurement | AC Current |
| Measuring Range | 0–10A (direct) / up to 20A (via CT) |
| Accuracy Class | Class 1.5 |
| Frequency Range | 40–72Hz |
| Max Operating Voltage | Up to 600V |
| Mounting Size | 72 × 72mm |
| Protection Rating | IP52 |
| Measurement Method | Moving-iron (True RMS) |
Applications:
- Electrical distribution panels.
- Generator control panels.
- Industrial machines.
- Power monitoring systems.
- Switchgear and MCC panels.
Package Includes:
- 1x AT-72 Analog Current Panel Meter 50/5A 72x72cm.
- 2x mounting base.
- 2x Nuts.
- 4x Flat Washer.
- 2x Coupling Nuts.
