EC11 Rotary Encoder With Push Button Switch 5pin 15mm
A rotary encoder, also called a shaft encoder, is an electro-mechanical device that converts the angular position or motion of a shaft or axle to digital output signals.
The EC11 Rotary Encoder With Push Button Switch 5‑pin 15 mm is an incremental rotary input device combining a 20‑step detented encoder and a momentary push‑button switch. Encased in durable metal shaft construction and designed for through‑hole PCB mounting, it is ideal for mechanical user interfaces in embedded systems and audio controls.
Features
- Continuous rotary encoder switch with built-in push button
- Can be used for data entry as with modern in-car CD players, for volume & on/off control or data selection via LCD
- Simple to use with PIC or ATMEL microcontrollers (Arduino-like MCUs).
- Knurled metal shaft of 15 mm length and approximately 6 mm diameter for secure grip.
- 20 detents per revolution (step angle ≈18°) delivering tactile feedback.
Specifications
| Parameter | Value |
|---|---|
| Model | EC11 |
| Detents per Revolution | 20 (≈18° step angle) |
| Shaft Length | 15 mm |
| Shaft Diameter | 6 mm |
| Switch Rating | 10 mA @ 5 V DC |
| Rotational Life | ≥ 30,000 cycles |
| Push‑Button Life | ≥ 20,000 presses |
| Rated Voltage (Encoder) | 5 V DC |
| Operating Temperature Range | –40 °C to +85 °C |

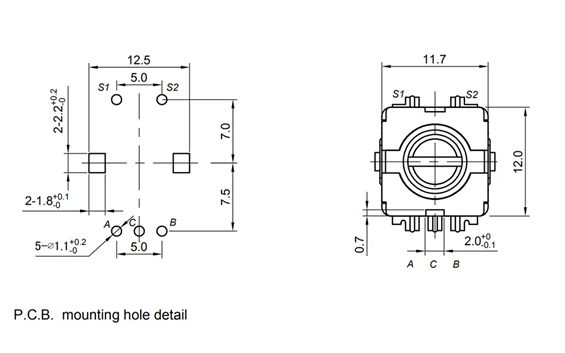

| Mounting Type | Through‑hole PCB with 5 pins |
Applications
- User input for embedded systems, menu navigation, and parameter tuning.
- Audio equipment volume or tone control.
- Industrial or automotive control panels requiring reliable rotary input.
- Prototyping mechanical interfaces on Arduino, Raspberry Pi, or microcontroller platforms.
Package Contents
- 1x EC11 Rotary Encoder With Push Button Switch 5pin 15mm.
