ECO Terminal Insulated Wire Socket Male F1.25A (10 Pcs)

Features:

• The tin-plated copper or brass base of these terminals provides good electrical connectivity while also allowing for a quick, solderless crimp connection.
• Wire terminals are used to easily connect wires to screws, posts, and other terminals/wires.
• PVC insulation protects the connection against abrasion, chemicals, oils, fuels, and solvents.
• It has a range of insulated crimp blade terminal made from copper with flared vinyl insulation.

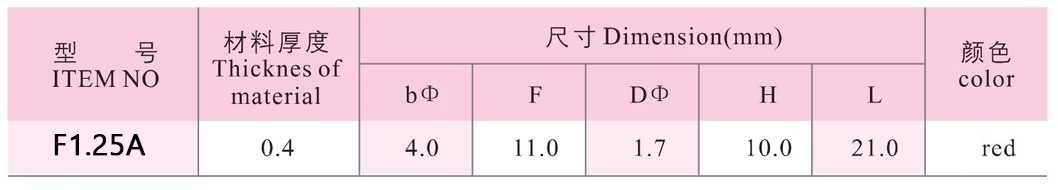

Specification:

• Model: F1.25A (ECO) Red
• Red 0.5 – 1.5 mm²
• Material: Brass
• Coating: Plating Tin
• Type: Male
• Insulation Material: PVC
• Overall Length :21 mm
• Voltage Rating 300 V
• Current Rating 10 A
• Wire Size 22 to 16 AWG
• Temperature Rating +105°C

Package include:

• ECO Terminal Insulated Wire Socket Male F1.25A (10 Pcs)
