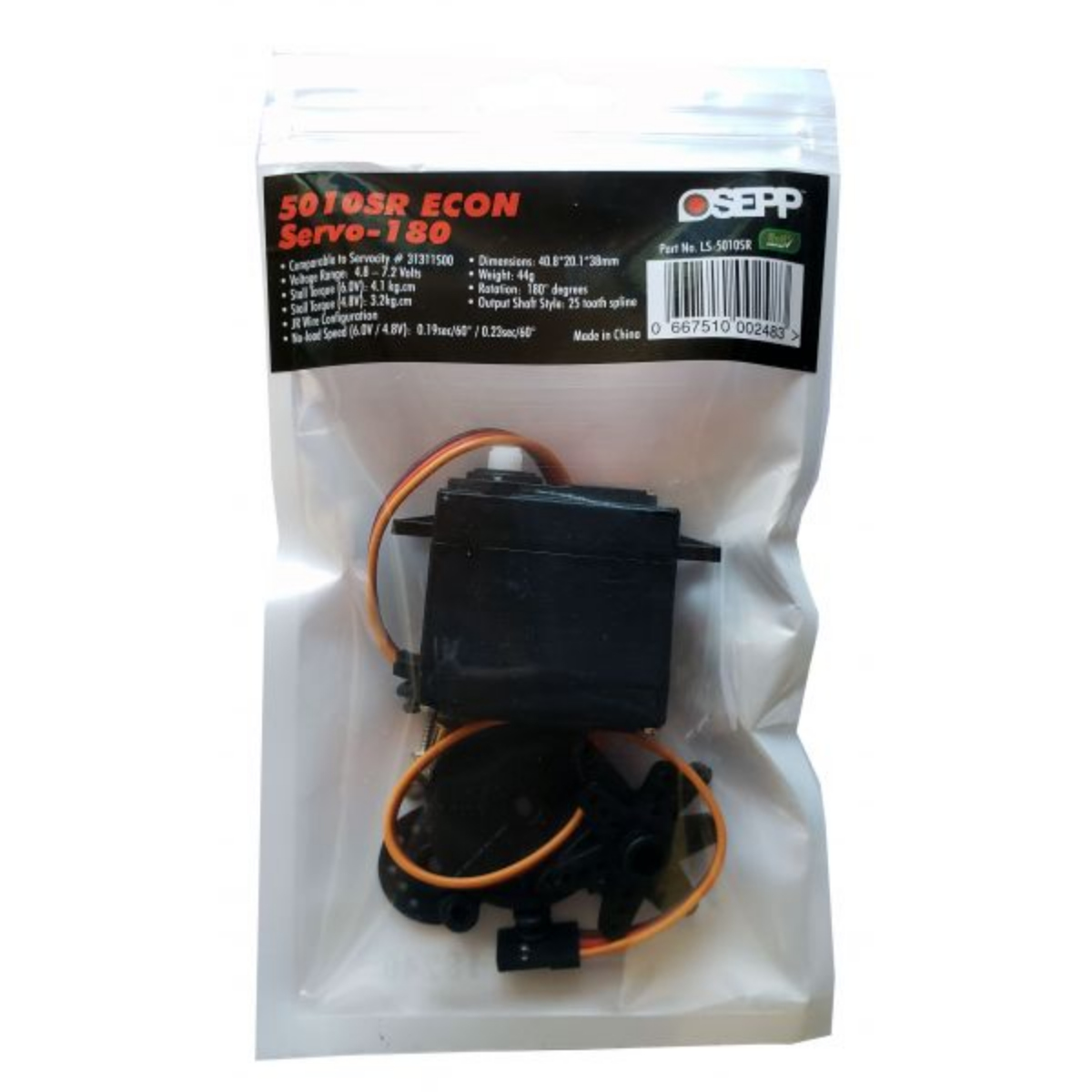

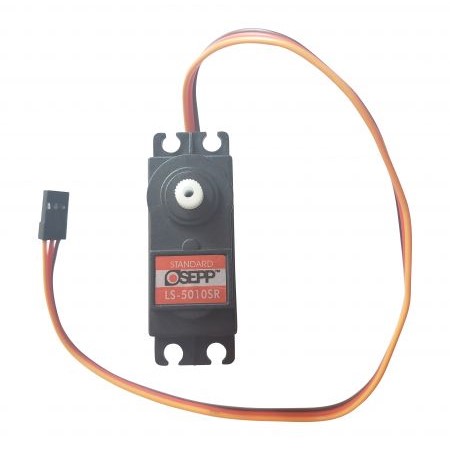

OSEPP LS-5010SR ECON Servo-180°
The OSEPP LS-5010SR is a standard-sized “ECON” series servo designed for 180-degree positional rotation. It is a versatile component offering reliable performance with a standard 25-tooth output spline. This servo is modifiable for continuous rotation if required for your specific project needs.
✅Features
- Rotation Range
- Durable Construction
- Standard Compatibility
- Wide Voltage Range
- Cored Motor
📜📚Specifications
| Parameter | Specification |
|---|---|
| Dimensions | 40.8 * 20.1 * 38 mm |
| Product Weight | 44g |
| Output Shaft Style | 25T |
| Angle Rotation | 180 degree |
| Voltage Range | 4.8~7.2 Volts |
| No-Load Speed (6.0V) | 0.19sec/60° |
| No-Load Speed (4.8V) | 0.23sec/60° |
| Stall Torque (6.0V) | 4.1kg.cm |
| Stall Torque (4.8V) | 3.2kg.cm |
| Max PWM Signal Range (Standard) | 500~2500usec |
| Pulse Amplitude | 3~5V |
| Operating Temperature | (-)10 to +50 degree C |
| Current Drain – idle (6.0V) | 20mA |
| Current Drain – no-load (6.0V) | 200mA |
| Continuous Rotation Modifiable | Yes |
| Direction w/ Increasing PWM Signal | anticlockwise |
| Deadband Width | 4usec |
| Motor Type | Cored |
| Gear Type | Plastic |
| Gear Material | POM |
| Wire Length | 300mm |
| Wire Gauge | JR |
💻Applications
- Positional Control
- Robotics
- DIY Projects
- Continuous Motion

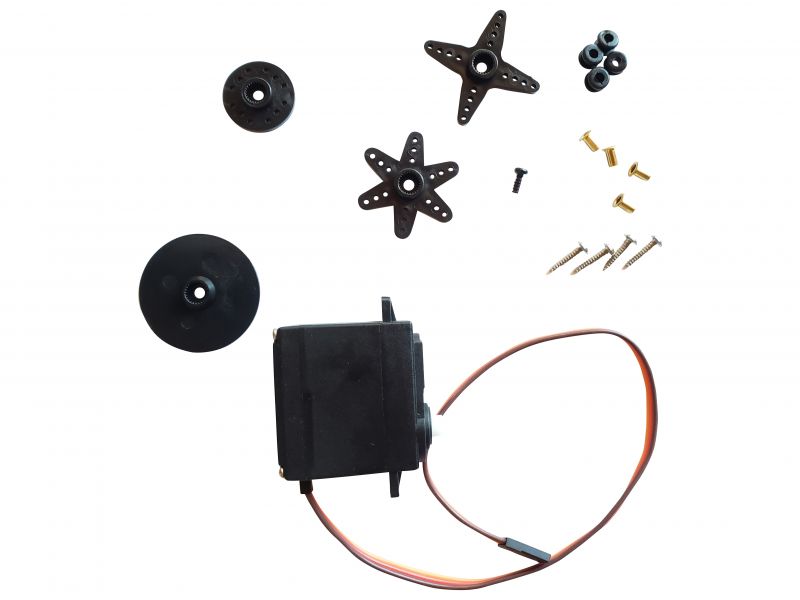

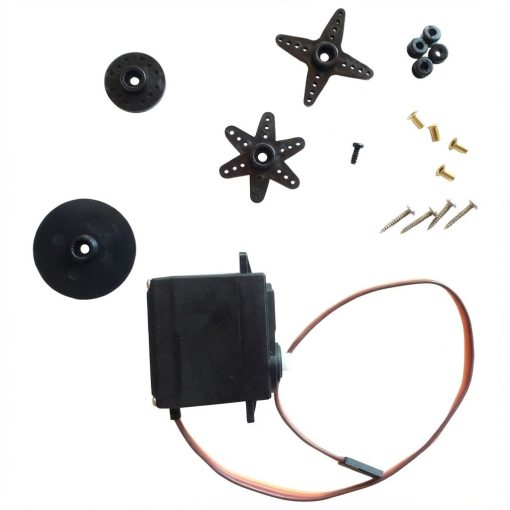

🎁Package Content
