ELECROW All-in-one Starter Kit for Pico 2|RP2350 Starter Kit: 17 Sensors & 21 Coding Lessons
The ELECROW All-in-one Starter Kit for Pico 2 is the perfect toolkit for beginners eager to explore the world of electronics and programming. Featuring the versatile Pico 2 development board and 17 unique sensors, this kit helps users learn how to control hardware and develop coding skills using Arduino IDE. Designed with educational value in mind, the kit includes 21 step-by-step lessons that guide users through building interactive projects from scratch.
Ideal for beginners and young learners, the kit encourages hands-on experimentation and problem-solving. From controlling LEDs to building smart lighting systems, temperature sensors, and even ultrasonic range finders, the lessons gradually introduce users to various applications of microcontrollers. The use of Pico 2, powered by RP2040, offers efficient performance with advanced processing capabilities for exciting projects.
Features:

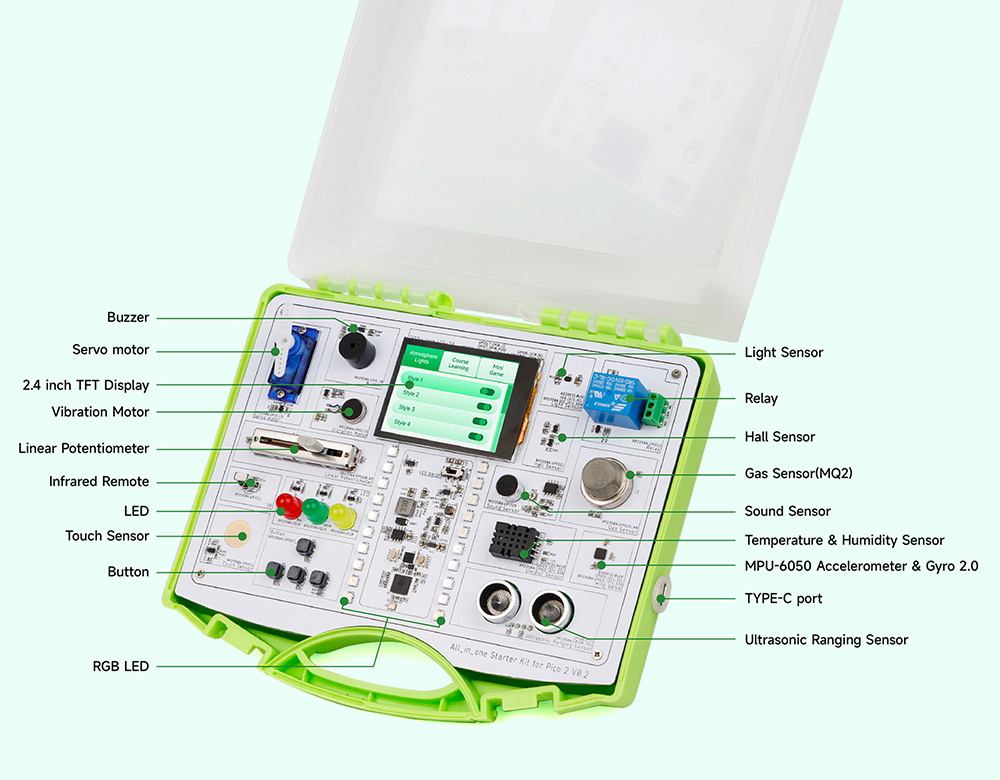

- 17 sensors with different functions integrated on a single board, with more than 20 creative tutorials.
- Common sensor board design, no need to solder wires, ready to use out of the box, quick to get started.
- Well-designed portable suitcase, small and exquisite, easy to carry.
- 2.4-inch TFT full-color touch screen.
- 20 full-color atmosphere lights, programmable to add display forms.
- Built-in mini-games that can be played right after booting, allowing seamless switching between learning and entertainment.
Specifications:
| Parameter | Value |
|---|---|
| Processor | Pico 2 RP2350 |
| Driver IC | RP2350A/QFN-60(7×7) |
| SRAM | 520KB |
| Flash | 4MB |
| Programming Language | C/C++ |
| Operating Voltage | 5V |
| Input Voltage | DC1.8-5.5V |
| Internal Dimensions | 190x135x40mm |
| External Dimensions | 190x170x46mm |
| Material | PP |
| Display Size | 2.4inch |
| Resolution | 240×320 |
| Touch Type | Capacitive |
| Display Driver IC | TD1509PR |
| Display Area | 36.72×48.96mm |
| Outline Dimensions | 43.05×60.45×2.5mm |
| Minimum System Power Consumption | 5V,26mA,0.13W |
| Maximum Power Consumption (All Functions Enabled) | 5V,100mA,0.5W |
| Peripherals Pins | 26multi-functionalGPIOpins(including4pinsavailableforADC),2xSPIinterfaces,2xI2Cinterfaces,2xUARTinterfaces,4×12-bit500kspsAnalog-to-DigitalConverters(ADCs),16controllablePWMchannels |
| External Interfaces | Type-C power and data interface, Relay connection terminals |
| Normal Operating Temperature | 0°Cto+50°C |
| Normal Operating Humidity | 20%to80%RH(non-condensing) |
| Storage Temperature | -20°Cto+70°C |
| Storage Humidity | 10%to90%RH(non-condensing) |
Configuration:
Applications:
- Learning tool for Arduino programming and electronics.
- Smart home automation and IoT projects.
- Interactive games, like the Little Dinosaur or Bouncing Ball games.
- Simple robotics, sensor-based monitoring, and alarms.
- Educational kits for classrooms or individual learning.

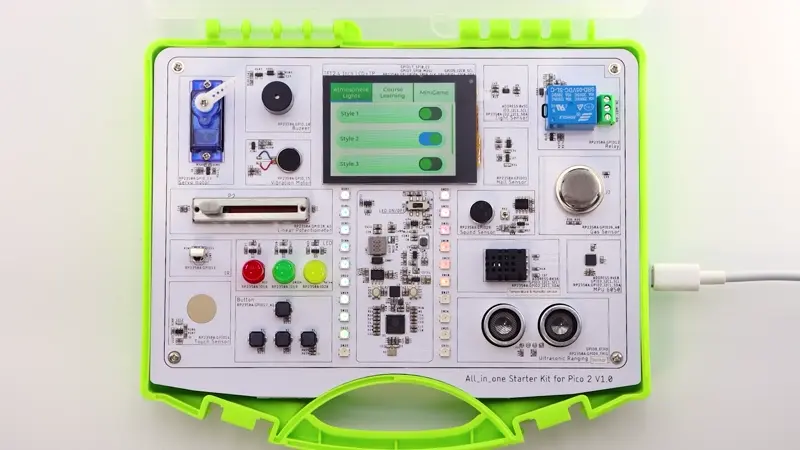

LED Control
Mini Games

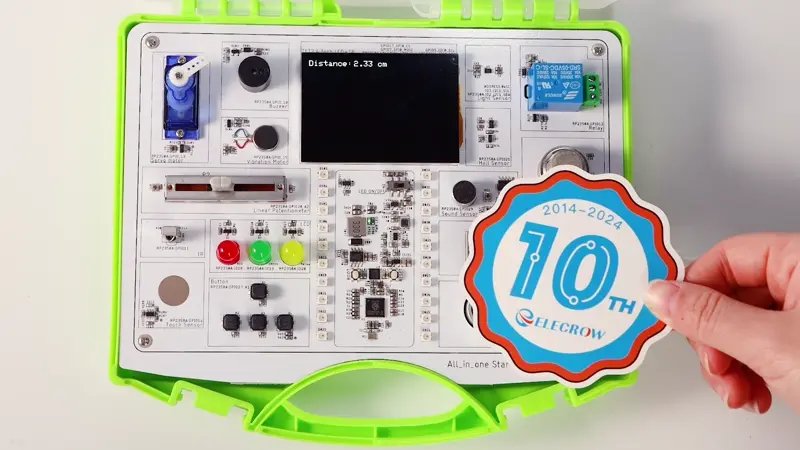

Ultrasonic Ranging Display
Package Include:
- 1x All-in-one Starter Kit for Pico 2
- 1x IR Remote Control
- 1x TYPE-C Cable
Documents:
| Document | Link |
|---|---|
| Wiki | Wiki |
| User Manual | User manual |
| Datasheet | All-in-One Starter Kit for Pico 2 Data Sheet |
