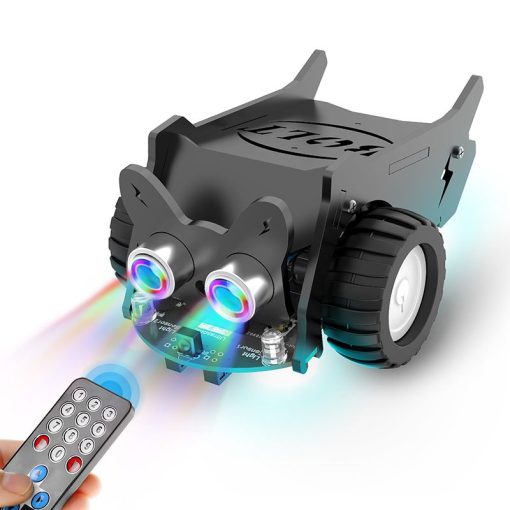

ELECROW CrowBot BOLT-with Infrared Remote Control

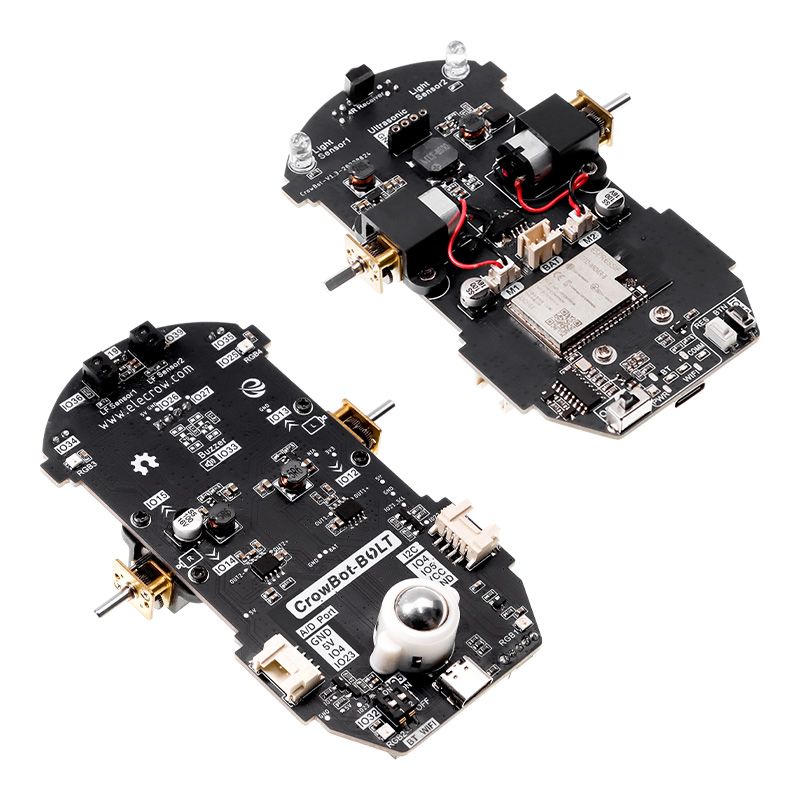

Embark on an exciting journey into the world of science, technology, engineering, art, and mathematics with the ELECROW CrowBot BOLT, your personal STEAM education robot. Designed to be an engaging and friendly introduction to programming and electronics for children aged six and up, BOLT is the perfect partner for curious minds ready to explore. At its core, BOLT is powered by a sophisticated ESP32-C3-WROOM module, a compact yet powerful microcontroller that provides both Wi-Fi and Bluetooth capabilities, opening a gateway to countless creative projects. This robot is more than just a toy; it is a comprehensive educational tool that grows with your child’s skills.
Features:

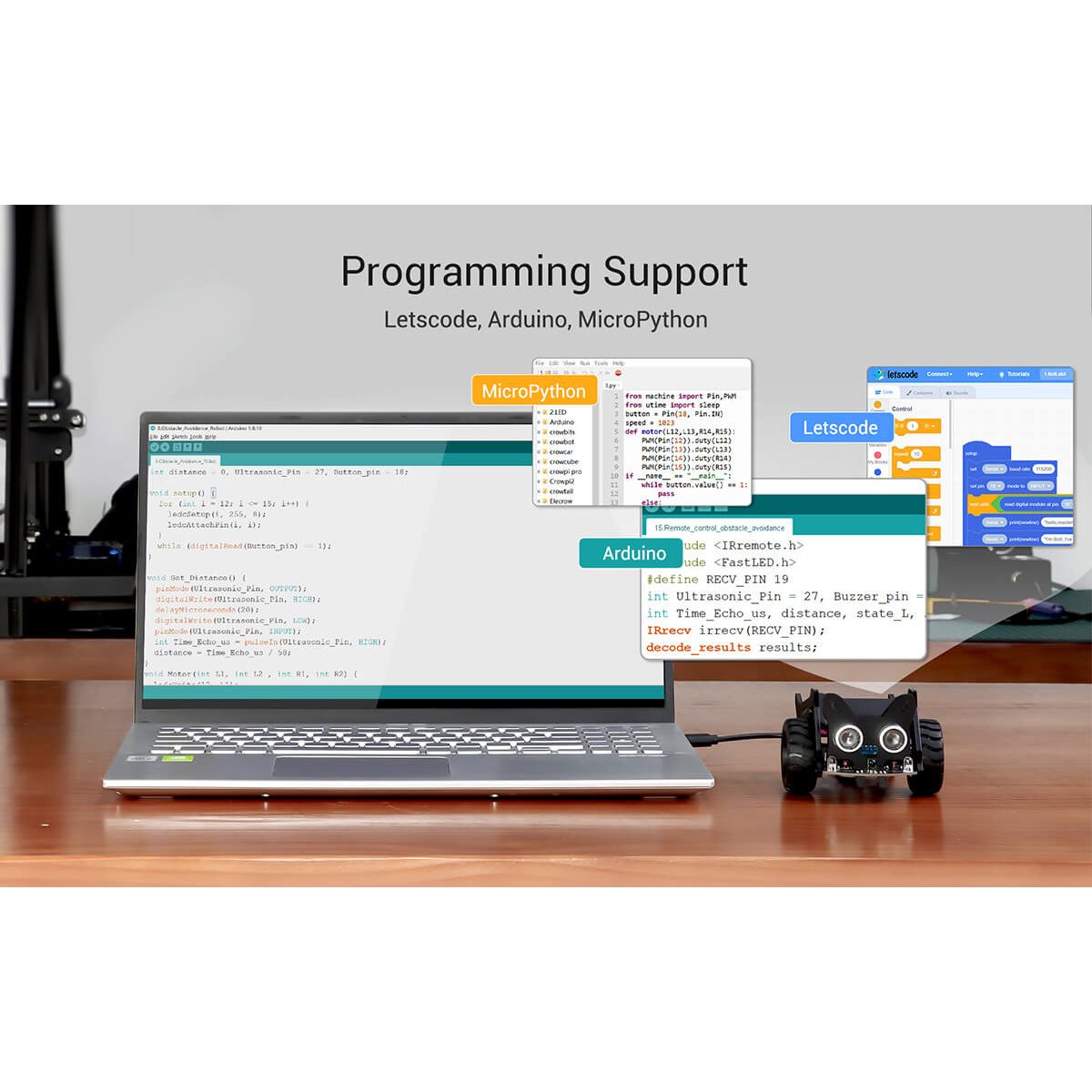

- Support for Letscode, Arduino and Python.
- Can be controlled by IR remote control, Bluetooth/WiFi control.
- The car is equipped with ultrasonic, infrared tracking, photodiode and other sensors.
- With 16 courses, it is the best choice for the entry of ESP32.

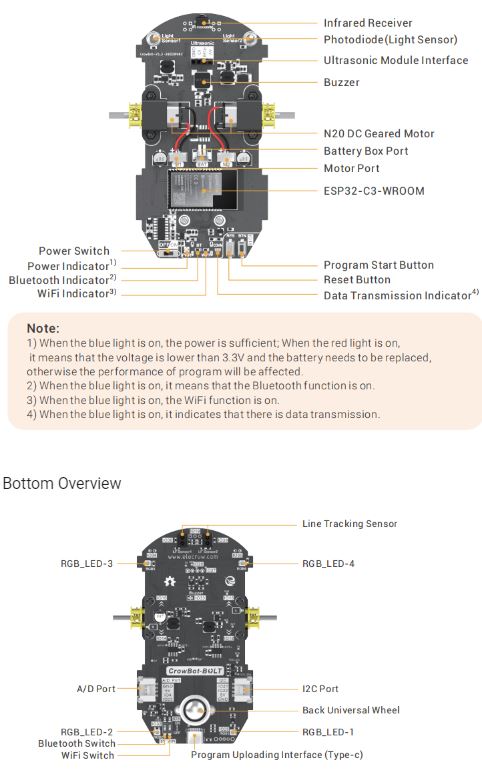

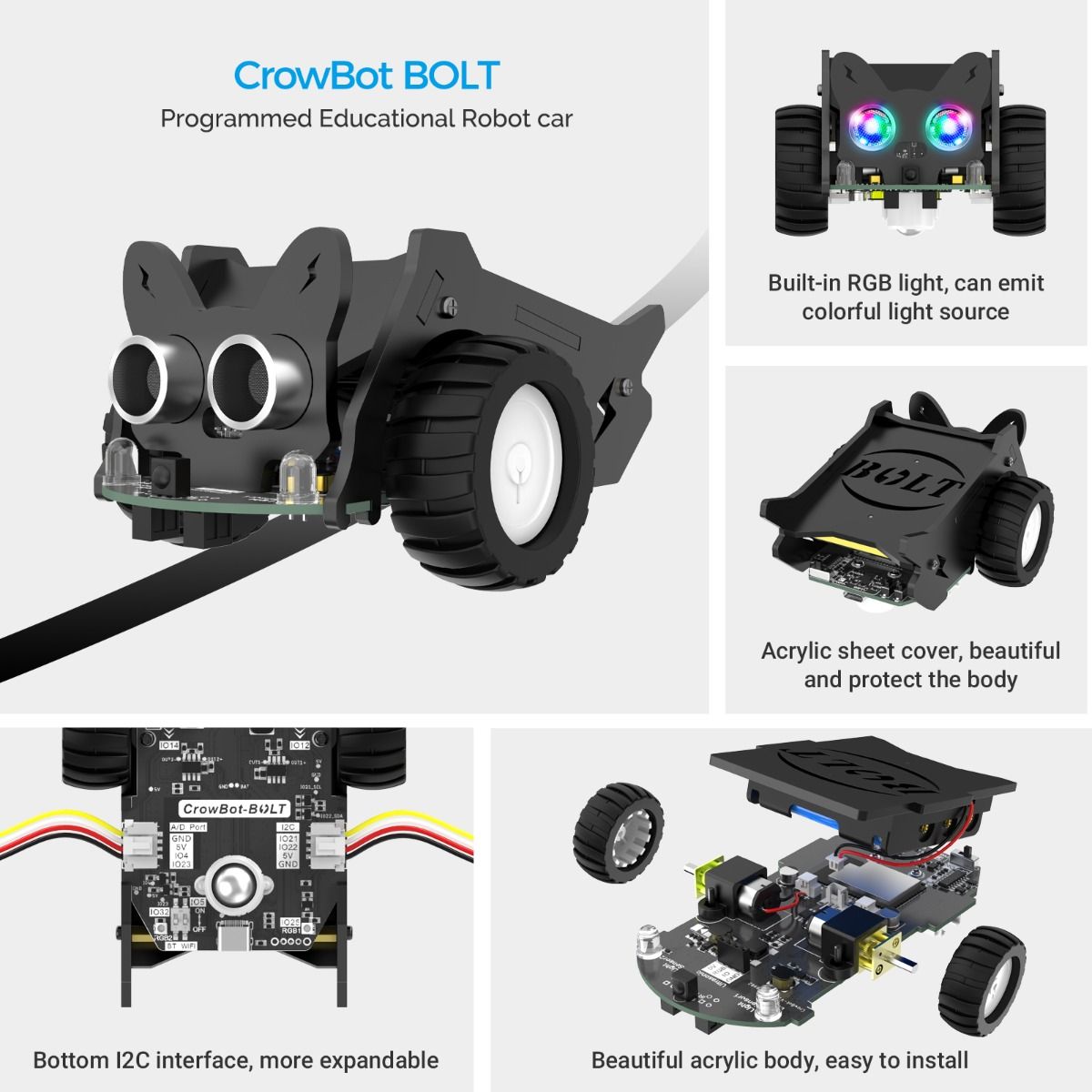

- Equipped with on board indicator LED , through which you can intuitively understand the working condition of the car.

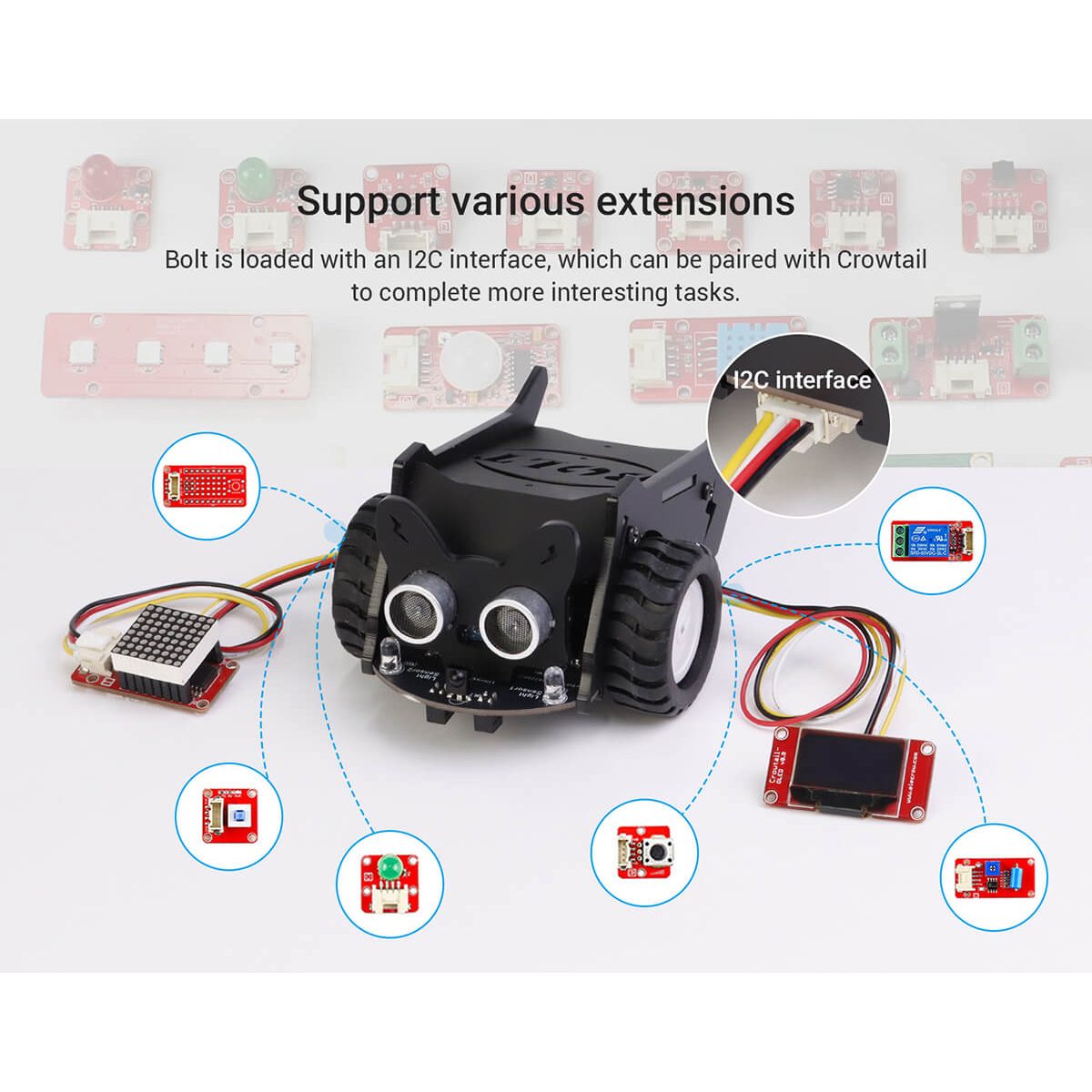

- 4Pin I2C and A/D ports are reserved to connect Crowtail sensors, creating more possibilities.
- Compatible with CrowBot Joystick, provides various methods to play.
Specifications:
| Item | Description |
|---|---|
| MCU | ESP32-WROVER-B（8MB） |
| Programmatically | Letscode，Ardunio，Micropython |
| Control method | Bluetooth Remote Control/Infrared Remote Control |
| Input | Button, Photodiode, Infrared Receiving Module, Ultrasonic Sensor, Line Tracking Sensor |
| Output | Buzzer, Programmable RGB_LED, Motor |
| Wifi&Bluetooth | Supported |
| Photodiode | Can realize the function of chasing light or avoiding light |
| Ultrasonic Sensor(with RGB; 4Pin interface) | When an obstacle is detected, the driving route of the car can be corrected to avoid the obstacle |
| RPR220 Line Tracking Sensor | Can make the car move along the dark/black lines, intelligently judge and correct the driving path |
| Buzzer | Can make the car sing, bringing a more direct sensory experience |
| Programmable RGB_LED | Through programming, it can show colorful lights in different scenes |
| Infrared receiver(3Pin interface) | Receive infrared remote control signals to realize remote control |

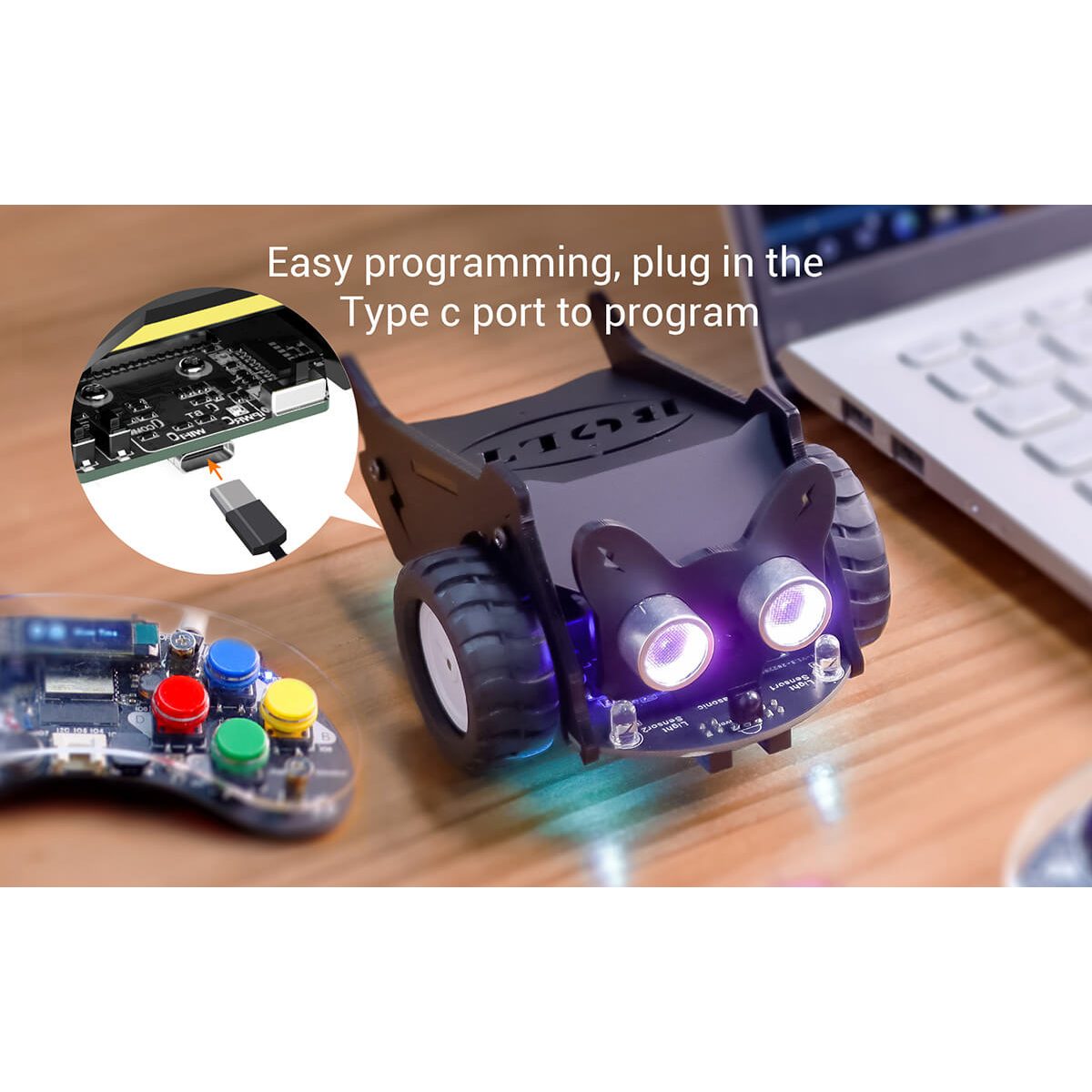

| Interface | Type c x1，I2C port x1，A/D port x1 |
| Motor type | N20 Gear Motor(drive: L9110S) |
| Operating Voltage | 3.3V~5V(AAA battery x4) |
| Work Temperature | -10℃~+55℃ |
| Dimension | 128 x 92 x 64mm |
| Weight | 200g |
Configuration:
Applications:
- STEAM and STEM education for students and hobbyists.
- Learning graphical and text-based programming (Scratch and Arduino).
- Projects in robotics, including obstacle avoidance and line-following robots.
- Introduction to electronics and sensor integration.
- Wireless control and Internet of Things (IoT) projects.

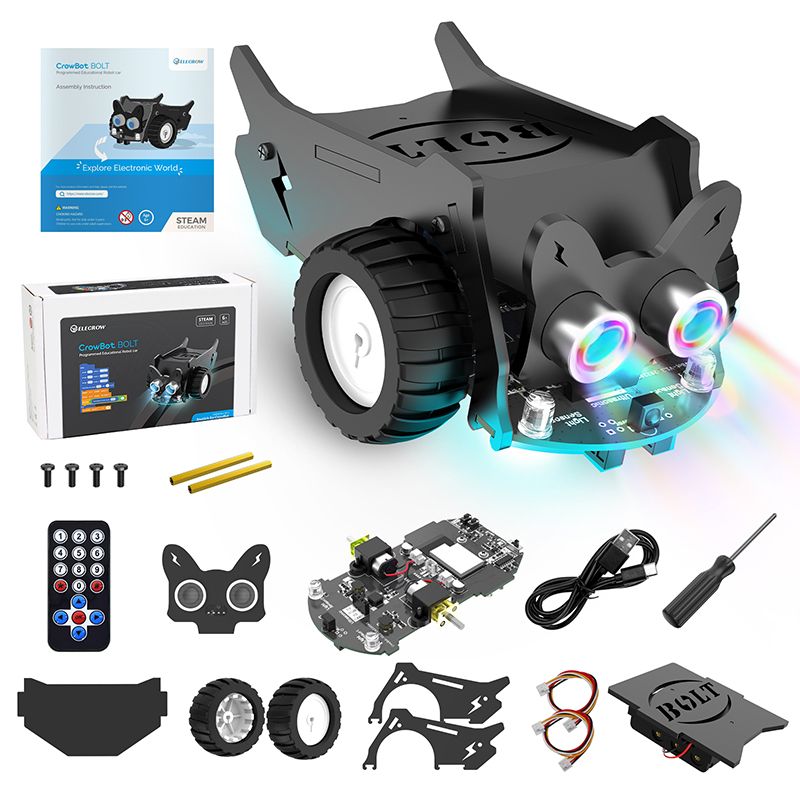

Package Include:
- 1x Chassis
- 1x Ultrasonic Sensor
- 1x Battery Holder
- 2x Wheels
- 4x M3*8mm Screws
- 2x M3*5mm Copper Column
- 2x Side Acrylic Plates
- 1x Front Acrylic Plates
- 1x Screwdriver
- 2x 4 Pin Crowtail Cable
- 1x Type C Cable x1
- 1x Infrared remote control
- 1x Instructions & Line Track Map
Documents:
| Document | Link |
|---|---|
| CrowBot BOLT Assembly Instruction | CrowBot BOLT Assembly Instruction PDF |
| Wiki | Wiki |
| CrowBot BOLT Beginner’s Guide | CrowBot BOLT Beginner’s Guide PDF |
| Certificate | Certificate PDF |
