ELECROW CrowPanel 3.5″ HMI ESP32 Display 480×320 SPI TFT LCD Touch Screen With Acrylic Case

ELECROW CrowPanel 3.5″ HMI ESP32 Display 480×320 SPI TFT LCD Touch Screen With Acrylic Case

The Elecrow CrowPanel 3.5″-HMI ESP32 Display is a sophisticated human-machine interface (HMI) module designed to empower developers in creating advanced IoT and embedded applications. Featuring a 3.5-inch SPI TFT LCD screen with a resolution of 480×320, this display delivers crisp visuals and responsive interaction through its resistive touch panel. The module is powered by the ESP32-WROVER-B, a robust dual-core 32-bit LX6 microprocessor with a clock speed of up to 240MHz, integrating 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5.0 for seamless wireless connectivity. This makes it an excellent choice for applications requiring reliable communication, such as smart home systems, industrial automation, and medical equipment.

Features:

• Integrated ESP32-WROVER-B module, built-in wireless communication 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth-compatible 5.0;

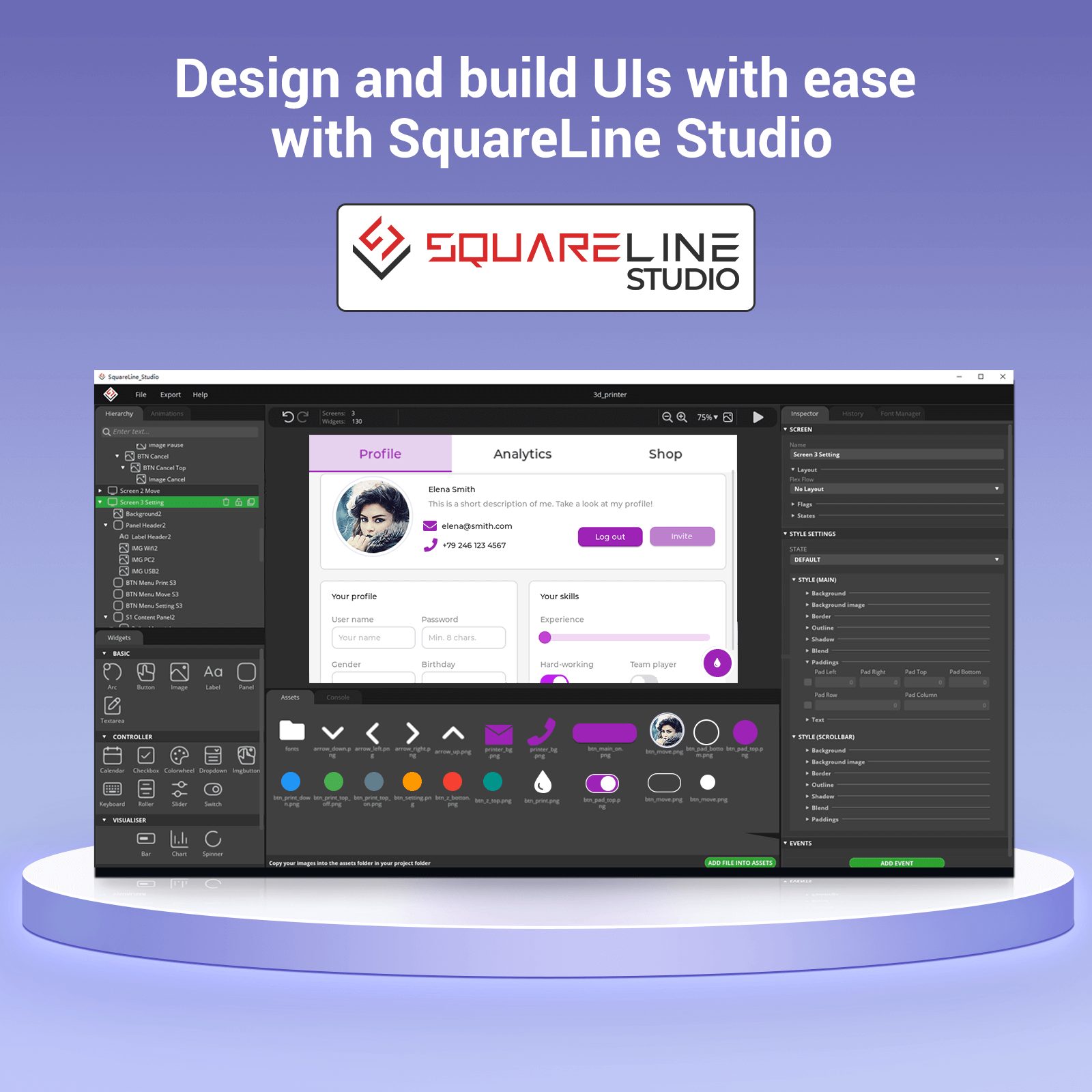

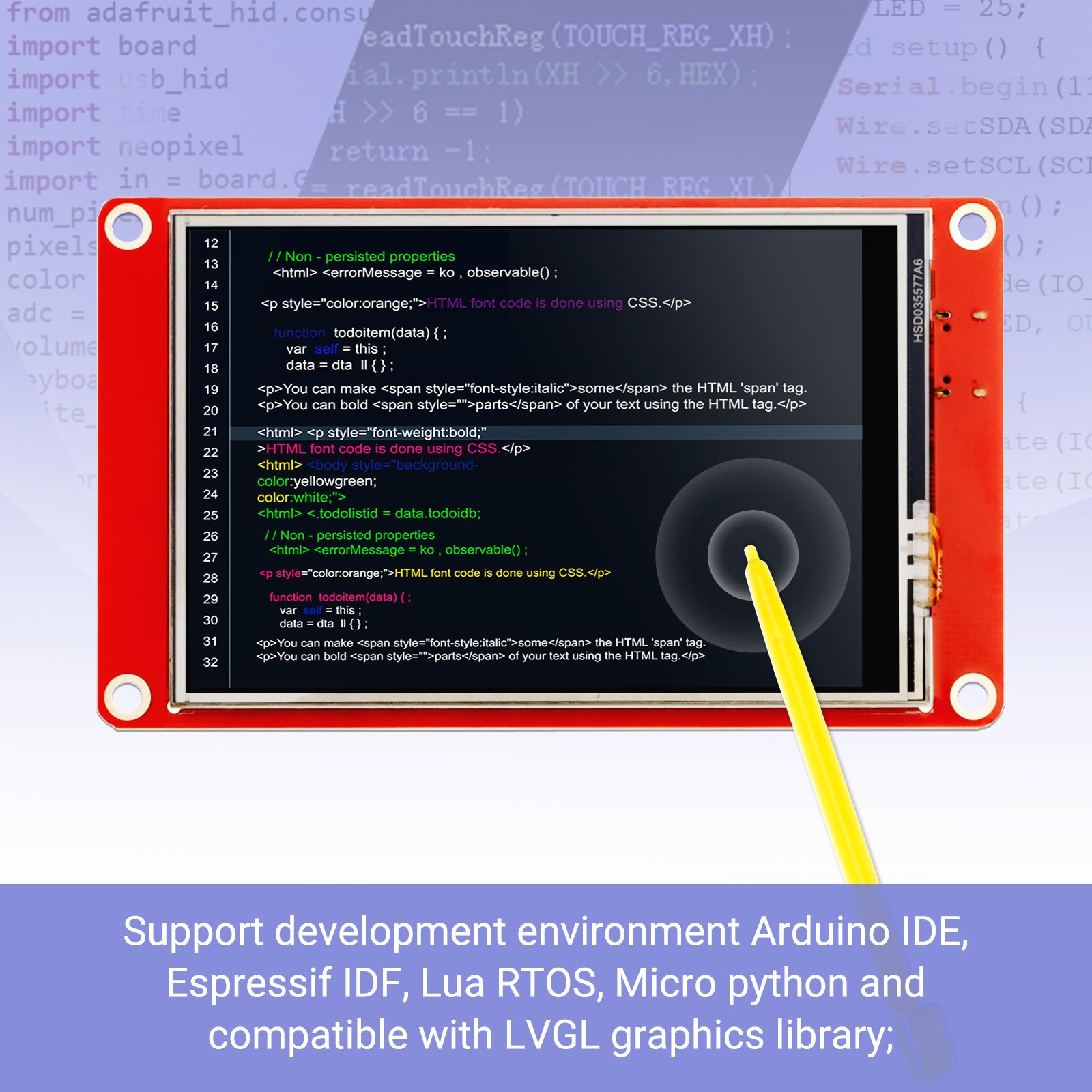

• Support development environment Arduino IDE, Espressif IDF, PlatformIO, Micro python and compatible with LVGL graphics library;
• Built-in LVGL demo interface and Arduino example, plug and play;
• LCD 480*320 3.5 inches TFT-LCD with driver IC ILI9488;

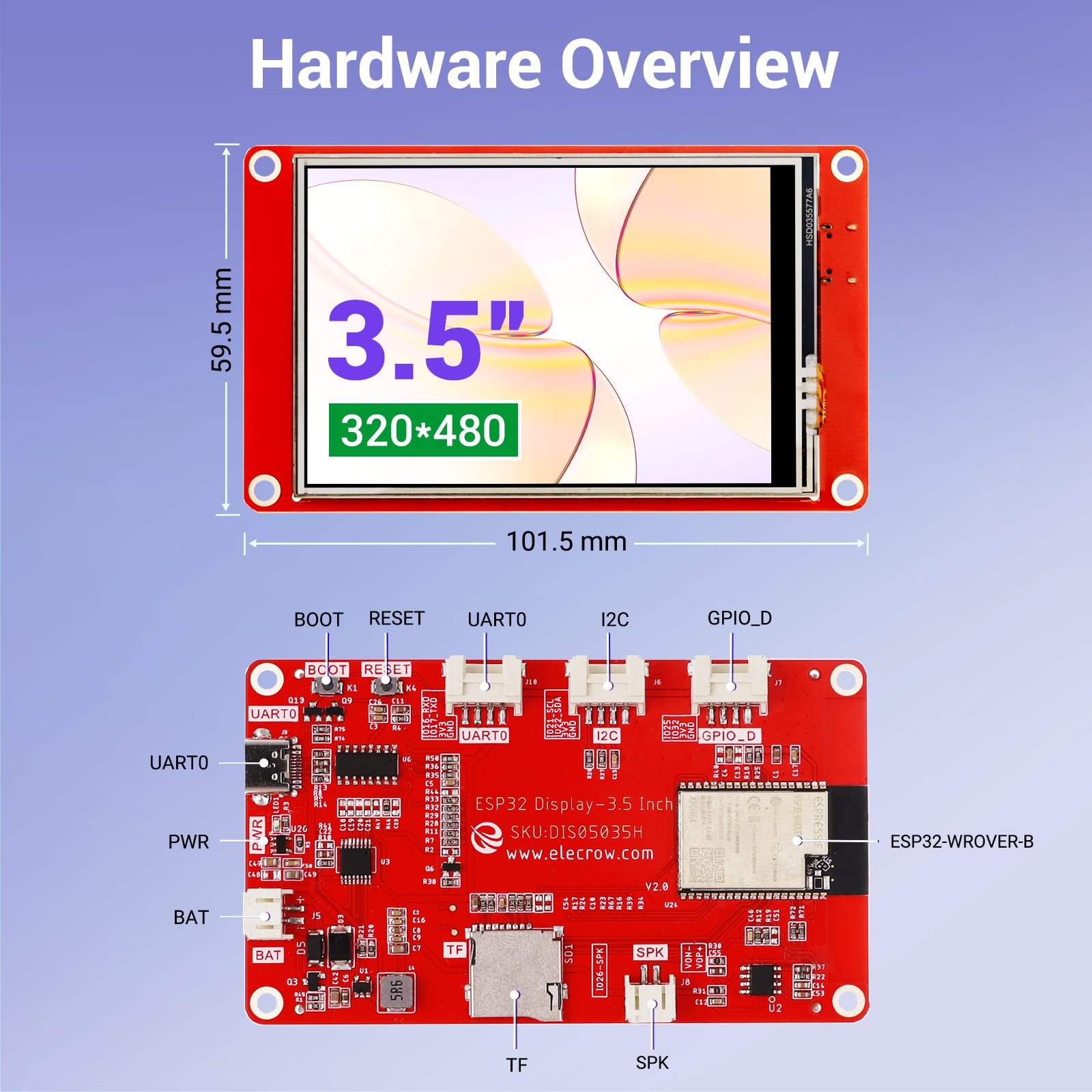

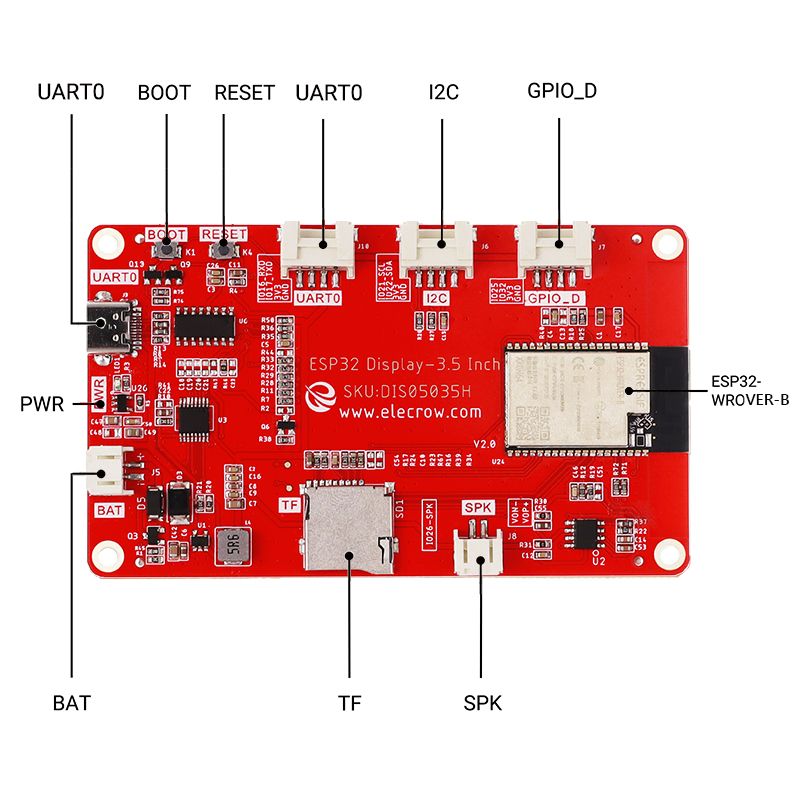

• Rich peripheral interfaces and expansion functions enable it to meet the needs of different fields.

Specifications:

Configuration:

Applications:

• Automotive HMI.
• Medical equipment.
• Smart home systems.
• Home automation.
• Industrial control.
• Civil electronics.
• IoT application devices.

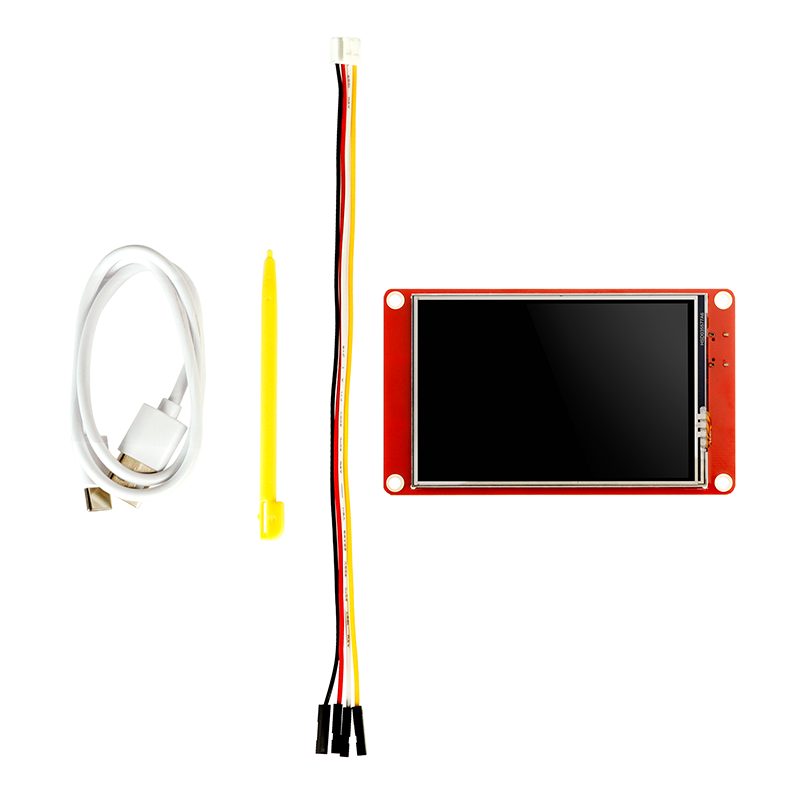

Package Include:

• 1x CrowPanel ESP32 Display 3.5 Inch Display
• 1x USB-A to Type-C Cable

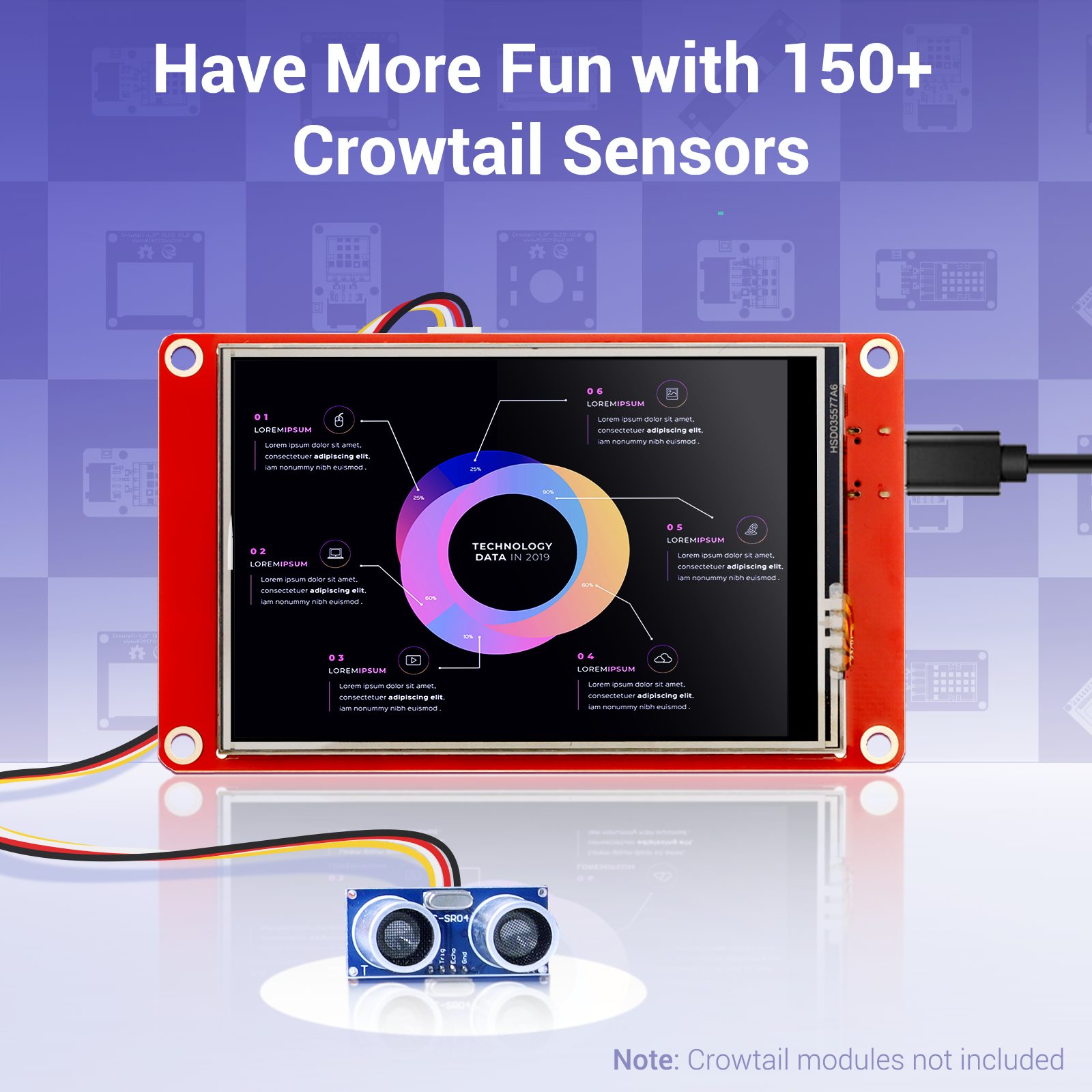

• 1x Crowtail/Grove to 4pin DuPont cable
• 1x Resistive touch pen

Documents:

• Wiki
• User Manual
• Digital Clock Project
• Schematic Diagram
• 3D File
• Specification of LCD
• ESP32-WROOM-32-N4 Datasheet
• Outline Dimensions
• LVGL Reference
• openHASP Github
• For Tactility
• CE Certificate
• Distributor Certificate

How to use:
