ELECROW CrowPanel 5.0″ HMI ESP32 Display 800×480 RGB TFT LCD Touch Screen With Acrylic Case

ELECROW CrowPanel 5.0″ HMI ESP32 Display 800×480 RGB TFT LCD Touch Screen With Acrylic Case

The ELECROW CrowPanel 5.0″ HMI ESP32 Display 800×480 RGB TFT LCD Touch Screen With Acrylic Case is a robust and feature-rich human-machine interface (HMI) solution tailored for developers and engineers working on smart home, industrial automation, and IoT applications. This advanced display module integrates a high-resolution 800×480 RGB TFT LCD with a capacitive touch screen, powered by the ESP32-S3-WROOM-1-N4R8 module, delivering exceptional performance and connectivity for a wide range of projects.

Features:

• Integrated ESP32-S3-WROOM-1-N4R8 module,built-in wireless communication 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth-compatible 5.0;

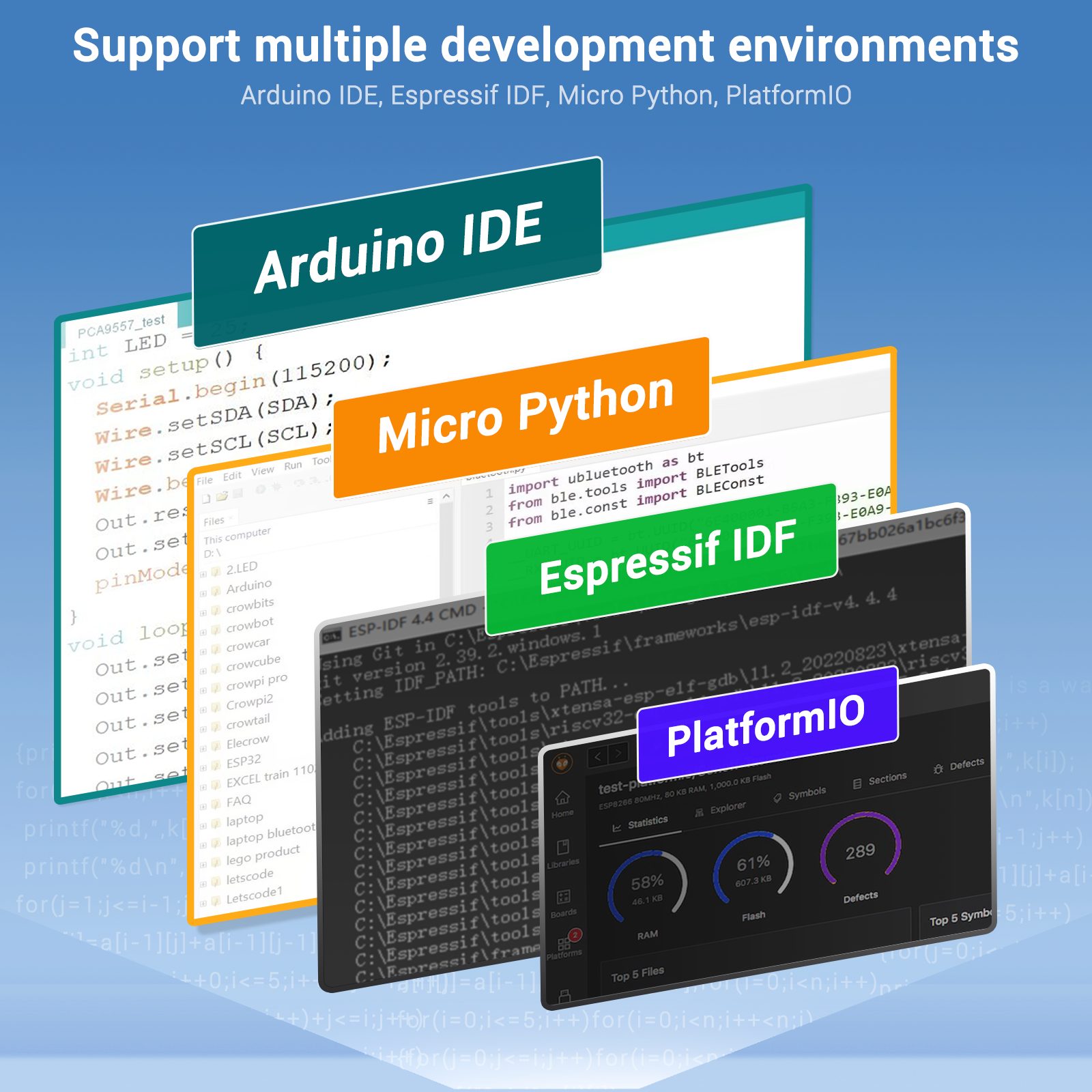

• Support development environment Arduino IDE, Espressif IDF, PlatformIO, Micro python and compatible with LVGL graphics library;
• Built-in LVGL demo interface and Arduino example, plug and play;
• LCD 800*480 5.0 inches TFT-LCD capacitive screen with driver IC ILI6122 + ILI5960;
• Rich peripheral interfaces and expansion functions enable it to meet the needs of different fields.

Specifications:

• Model: 5.0 inch CrowPanel ESP32 display
• Main Processor: ESP32-S3-WROOM-1-N4R8
• Resolution: 800*480
• Touch Type: CapacitiveTouch Screen
• Display Type: TN Panel
• Screen: TFT-LCD Screen
• Display driver: ILI6122 & ILI5960
• External power supply: DC5V-2A
• Interface: 2xUART0,2xGPIO,2xI2C,1xBattery
• Button: BOOT Button and Reset Button
• Active Area: 108 x 64.8mm(W*H)
• Working Temperature: -20℃～70℃
• Storage Temperature: -30℃～80℃

Configuration:

Applications:

• Smart home devices.
• Home automation systems.
• Industrial control panels.
• Medical equipment interfaces.
• Automotive HMI applications.
• IoT application devices.
• Civil electronics projects.

Package Include:

• 1x CrowPanel 5.0″ ESP32 Display.
• 1x USB-A to Type-C Cable.
• 1x Crowtail/Grove to 4pin DuPont cable.

Documents:

• Wiki
• User Manual
• Schematic Diagram
• 3D File
• Specification of LCD
• ESP32-S3-WROOM-1N4R8 Datasheet
• Outline Dimensions
• LVGL Reference
• openHASP Github
• For Tactility
• CE Certificate
• Distributor Certificate
