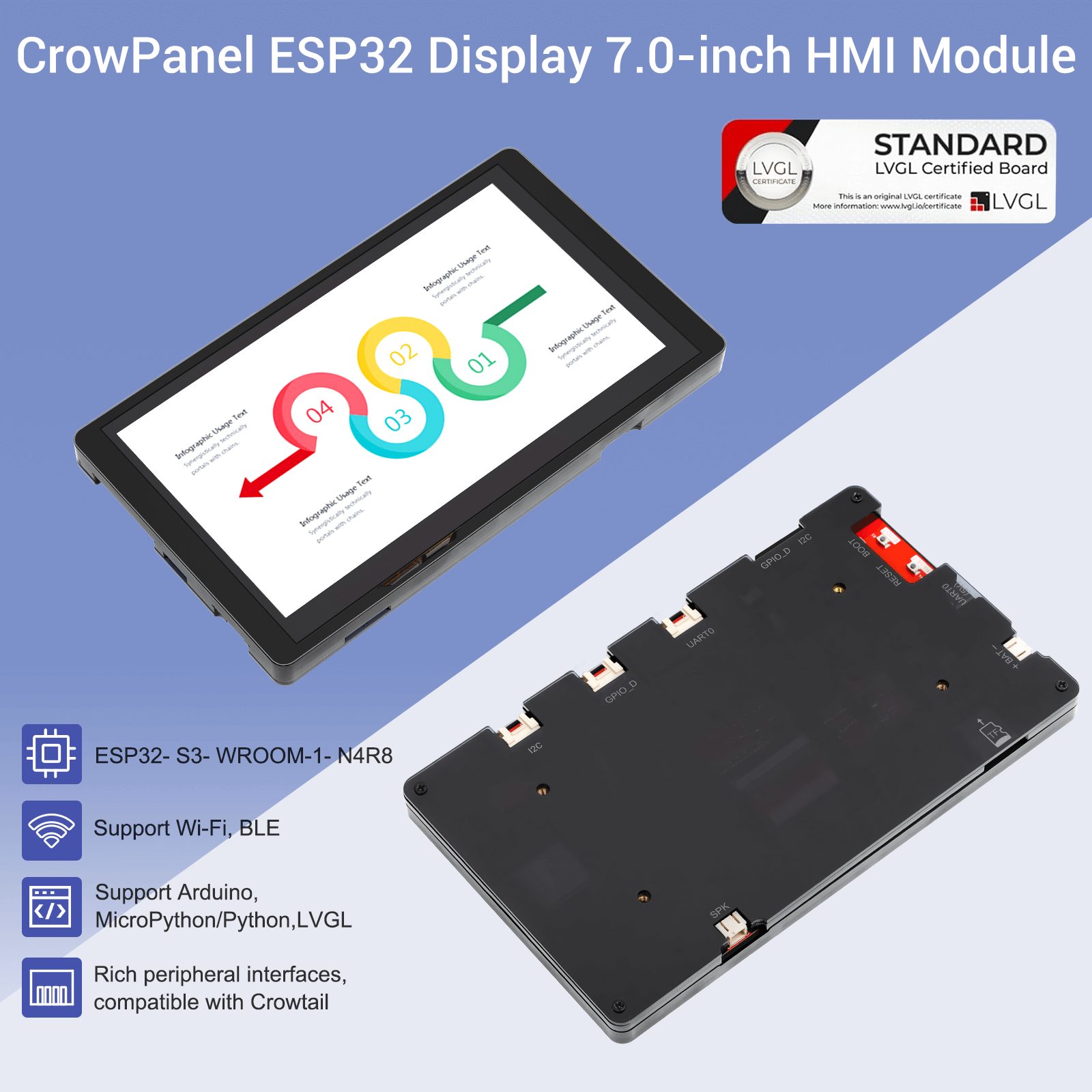

The ELECROW CrowPanel 7.0″ HMI ESP32 Display 800×480 RGB TFT LCD Touch Screen With Acrylic Case is a sophisticated human-machine interface (HMI) solution tailored for a diverse array of applications, including smart home systems, industrial automation, and Internet of Things (IoT) devices. This 7-inch display features a high-resolution 800×480 RGB TFT LCD screen with capacitive touch capabilities, delivering vibrant visuals and a responsive user experience. Powered by the ESP32-S3-WROOM-1-N4R8 module, it combines robust processing power with integrated wireless connectivity, making it an ideal choice for developers and engineers seeking to create advanced, connected interfaces.

Features:

• Integrated ESP32-S3 module, built-in wireless communication 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth-compatible 5.0;
• Support development environment Arduino IDE, Espressif IDF, PlatformIO, Micro python and compatible with LVGL graphics library;
• Built-in LVGL demo interface and Arduino example, plug and play;
• LCD 800×480 7.0 inches TFT-LCD with driver IC EK9716BD3 + EK73002ACGB;
• Rich peripheral interfaces and expansion functions enable it to meet the needs of different fields.

Specification:

• Model: 7.0 inch -CrowPanel ESP32 display
• Main Processor: ESP32-S3-WROOM-1-N4R8
• Resolution: 800*480
• Flash: 4MB
• PSRAM:8MB
• Touch Type: Capacitive Touch Screen
• Display Type: TN Panel
• Screen: TFT-LCD Screen
• Display driver: EK9716BD3 & EK73002ACGB
• External power supply: DC5V-2A

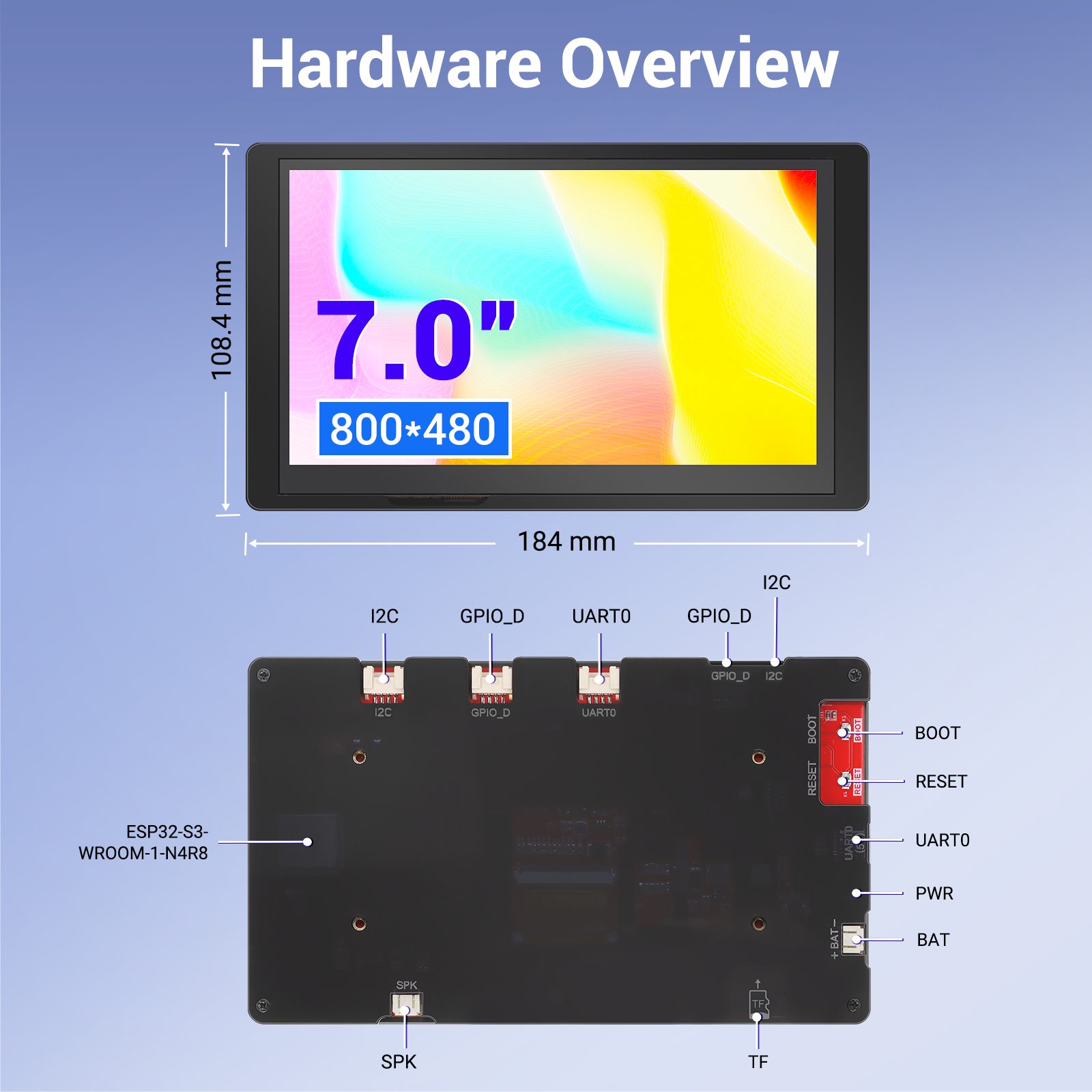

• Interface: 2*UART0,2*GPIO,2*I2C,1*Battery
• Button: BOOT Button and Reset Button

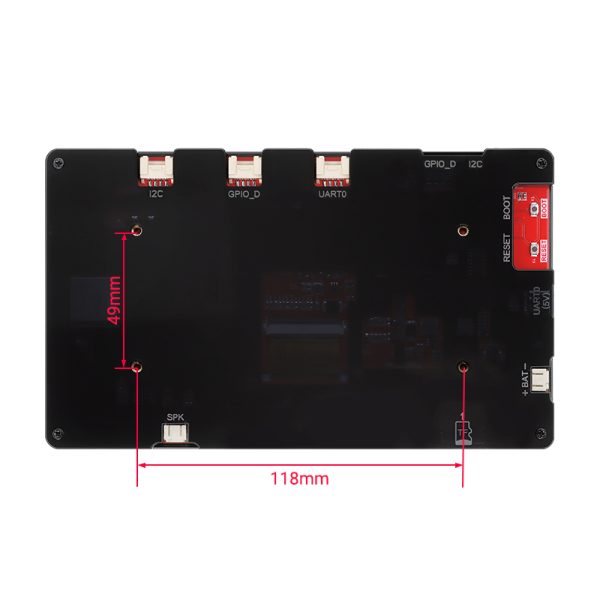

• Active Area: 153.84×85.63mm(WxH)
• Working Temperature: -20℃～70℃
• Storage Temperature: -30℃～80℃

Configuration:

Applications:

• Smart home control panels for lighting and appliance management.
• Industrial automation interfaces for machinery control.
• IoT device displays for remote monitoring and control.
• Portable electronic devices with interactive interfaces.
• Custom GUI applications for user-friendly HMIs.
• Educational projects for learning embedded systems and GUI design.

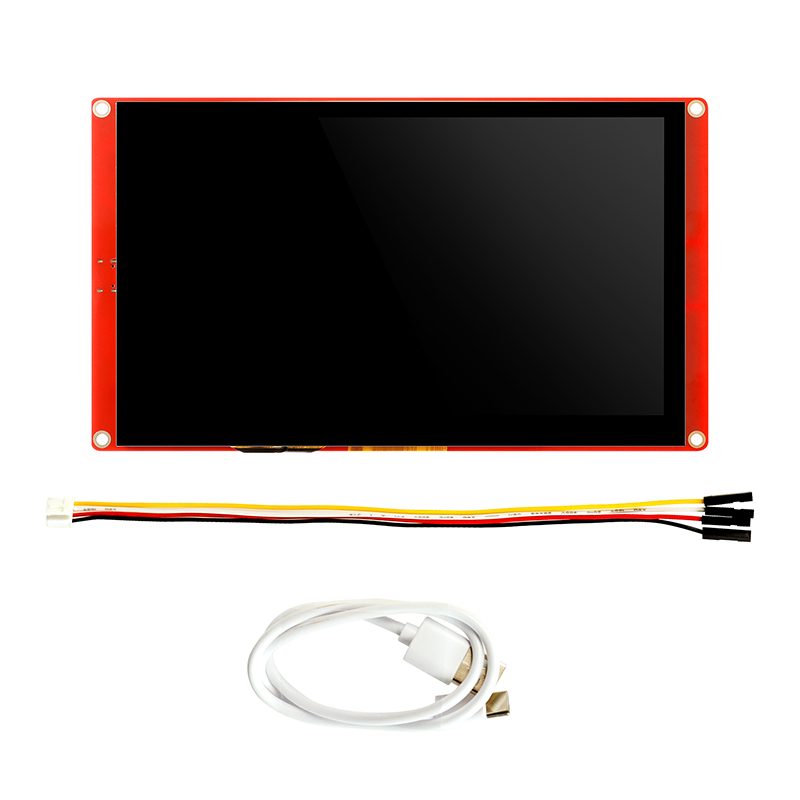

Package Include:

• 1x CrowPanel ESP32 Display 7.0 Inch Display.
• 1x USB-A to Type-C Cable.
• 1x Crowtail/Grove to 4pin DuPont cable.

Documents:

• Wiki
• User Manual
• Schematic Diagram
• 3D File
• Specification of LCD
• ESP32-S3-WROOM-1 Datasheet
• Outline Dimensions
• LVGL Reference
• openHASP Github
• CE Certificate
• Distributor Certificate
