ELECROW CrowPanel Advance 2.8“ HMI| ESP32-S3 AI-Powered IPS Touch Screen 320×240 With Acrylic Case

ELECROW CrowPanel Advance 2.8“ HMI| ESP32-S3 AI-Powered IPS Touch Screen 320×240 With Acrylic Case

The CrowPanel Advance 2.8″ HMI is an upgraded version of the CrowPanel HMI 2.8-inch display, featuring a 320×240 resolution IPS screen. It utilizes the ESP32-S3 chip as the core processor, equipped with an Xtensa 32-bit LX7 dual-core processor with a main frequency of up to 240MHz, 512KB SRAM, 8M PSRAM, and 16M Flash. This configuration provides strong data processing capabilities, making it suitable for data-intensive applications. The integrated 2.4GHz Wi-Fi and BLE functions, combined with a built-in RF antenna, ensure stable and reliable wireless connections. Additionally, the display supports diverse interfaces and low power consumption, ideal for HMI applications requiring robust wireless connectivity.

A distinctive feature is its AI functionality, utilizing an onboard microphone and speaker for voice command interaction, voice recognition, and speech synthesis. This enhances user interaction, particularly in smart home and industrial settings. The modular design allows for replaceable wireless modules, supporting protocols such as Zigbee, LoRa, nRF2401, Matter, Thread, and Wi-Fi 6, providing flexibility for various project needs.

Features:

• Equipped with ESP32-S3-WROOM-1 module as the core controller, it provides more excellent performance;
• Main frequency up to 240MHz, equipped with 512KB SRAM, 8M PSRAM and 16M Flash;
• 320*240 2.8 inches, with driver IC ST7789;
• IPS panel, 178° wide viewing angle, supports capacitive touch;
• Intelligent AI function, equipped with high-performance microphone and speaker, users can have seamless conversations with smart assistants through voice command interaction, voice recognition and speech synthesis;

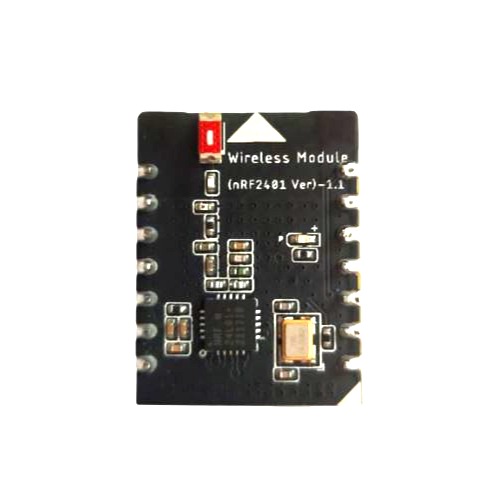

• Replaceable wireless communication module, can support multiple communication protocols such as Zigbee, LoRa, nRF2401, Matter, Thread and Wi-Fi 6 by replacing different modules;
• Built-in LVGL demonstration interface and Arduino examples, plug and play；
• The peripheral port adopts vertical and built-in terminal design, which is more in line with the compact and integrated design requirements of embedded devices.

Specifications:

Configuration:

Package Include:

• 1x CrowPanel Advance ESP32 Display-2.8 inch.
• 1x USB-A to Type-C Cable.
• 1x Crowtail/Grove 4pin DuPont cable.

Documents:

• Wiki
• ESP32-S3 Datasheet
• For Tactility

How to use:
