ELECROW CrowPanel ESP32 5.79” E-paper HMI Display with 272×792 Resolution Black/White Color Driven By SPI Interface with Acrylic Case
The ELECROW CrowPanel ESP32 5.79” E-paper HMI Display is an advanced display technology that integrates the benefits of e-paper with the powerful ESP32-S3 microcontroller. Housed in a protective acrylic case, this display ensures durability and ease of handling while delivering a high resolution of 272×792 pixels for a vivid and clear visual experience. Its classic black-and-white display is ideal for applications where readability and low power consumption are essential.

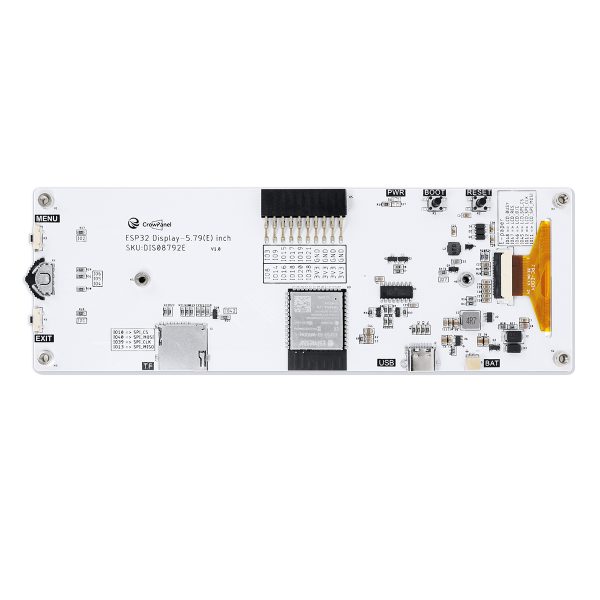

Equipped with the ESP32-S3 chip, operating at up to 240 MHz, this display provides robust performance and fast, stable data transmission via its SPI interface. The design incorporates multiple interfaces, including a BAT interface for battery connection, a UART0 interface for serial communication, a 2×10 pin GPIO interface for expansion, and a TF card slot. It also features user-friendly buttons such as a dial switch, menu button, back button, REST button, and BOOT button, facilitating seamless development and operation.
Features:
- 5.79-inch E-Paper display, 272×92 resolution, black and white, using SPI interface communication;
- ESP32-S3 as the main chip, frequency of up to 240MHz;
- Pure reflection mode, completely relying on light reflection to display content, no backlight is required, and the displayed content will not be lost even if the power is off;
- Hard-coated anti-glare display surface effectively resists glare;
- High contrast and high reflectivity provide a clearer and more vivid visual experience;
- Ultra-low power consumption and partial refresh function, significantly saving energy and achieving long standby time;
- Support full viewing angle, clearly visible from any angle;
- Rich buttons and interfaces (such as GPIO interface, UART interface, home button, etc.) for easy development and operation；
- Support multiple development environments (Arduino IDE, ESP IDF, MicroPython), suitable for different people’s needs, simplifying the secondary development process.
Specification:
| Size | 5.79 inch |
| MCU | ESP32-S3-WROOM-1-N8R8，up to 240 MHz |
| Flash | 8 MB |
| PSRAM | 8 MB |
| Material | Active Matrix Electroph oretic Display (AM EPD) |
| Driver Chip | SSD1683x2 |
| Resolution | 272(H) x 792(L) Pixel |
| Pixel pitch | 0.1755 x 0.1755 |
| Viewing Angle | Full Viewing Angle |
| Communication interface | 3-/4-wire SPI, default 4-wire SPI |
| Interface | UART0x1, BATx1, GPIOx1, TF Card Slot x1 |
| Button | Dial Switchx1, Menu Buttonx1, Back Buttonx1, REST Buttonx1, BOOT Buttonx1 |
| Development Environment | Arduino IDE、ESP IDF、MicroPython |
| Display Color | Black and white |
| Refresh Mode | Partial refresh (saves more power) |
| Display Voltage | 2.2~3.7V |
| Operation Temperature | -0~50℃ |
| Storage Temperature | -25~70℃ |
| Active Area | 47.74(H)x139.00(L)(H x L) |
Configuration:
Applications:
- Electronic label: supermarket or shelf product information and price.
- E-book reader.
- Electronic business card: display the corresponding participant information.

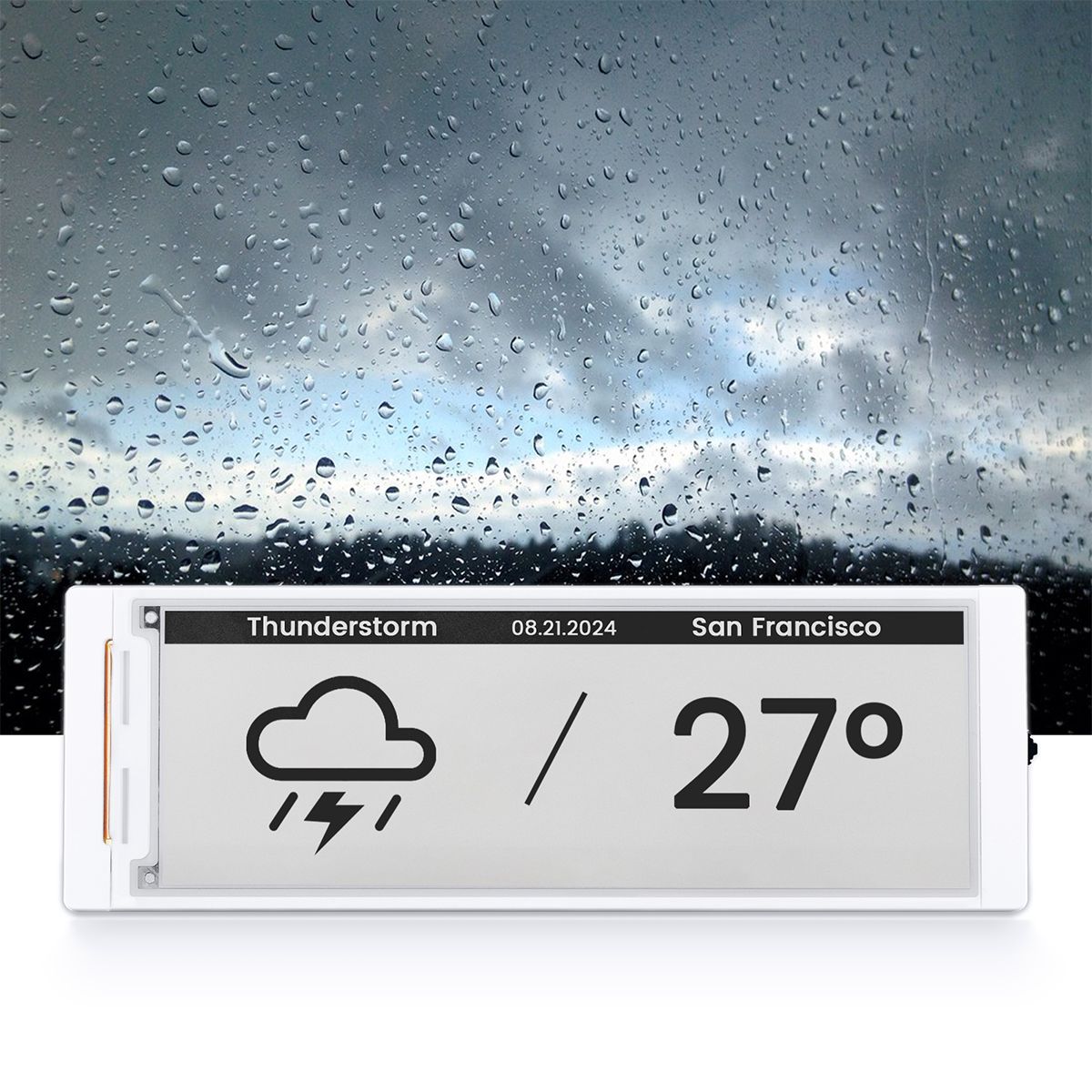

- Smart home and other applications.
Package Include:
- 1x 5.79 inch E-Paper Display.
- 1x USB Cable.
