14-pin electromagnetic relay with 4PDT contact form in compact size and transparent housing, can adjust automatically, protect and transform the electric circuit and widely used in electronic equipment, communication equipment, automatic equipment and tools etc.
Specifications
| Basics | Model | MY4NJ (Relay with Socket) | |
| Dimension (L*W*H) | 27×21×35mm | ||
| Weight | 40g | ||
| Ambient Temperature | -25℃~+55℃ | ||
| Terminal Type | solder pin | ||
| Number of Pins | 14 | ||
| Technical Parameters | Contact Form | 4PDT | |
| Contact Material | Silver alloy | ||
| Contact Capacity (Resistive load) | 5A/28V DC, 5A/240V AC | ||
| Coil Power | DC≤0.9W, AC≤1.2VA | ||
| Coil Voltage (Optional) | 24V DC | ||
| Pick-up Voltage at 23℃ | DC≤75%, AC≤80% | ||
| Drop-out Voltage at 23℃ | DC≥10%, AC≥30% | ||
| Contact Resistance @6V DC 1A | ≤100MΩ | ||
| Dielectric Strength | Between open contact | ≥1000V AC 50Hz/1min | |
| Between adjacent contact | ≥1000V AC 50Hz/1min | ||
| Between coil & contact | ≥1500VAC 50Hz/1min | ||
| Leakage current | ≤1mA | ||
| Insulation Resistance (MΩ) | ≥500MΩ at 500V DC | ||
| Service life | Electrical | 105 Times (Frequency: On 1 Time/1s, Off 1 Time/1s) | |
| Mechanical | 106 Times (Frequency: 300 Time/1min) | ||

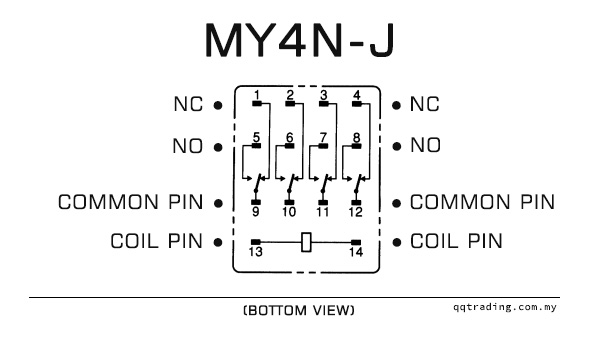

Dimensions:
