Electromagnetic Relay LY2N-J DPDT 10A 8 Pin with PTF08A Socket

Electromagnetic Relay LY2N-J DPDT 10A 8 Pin with PTF08A Socket – High-Performance Switching for Automation and Control Systems

Features:

• This general relay designed with a terminal socket, plays the role of a protector or a circuit switch.
• It can protect your electrical equipment very well.
• The 8-pin electrical relay with socket is for general purposes.
• complete with wiring base which can be Din rail mounted.
• The relay has an LED indicator

Specifications:

• Model: LY2NJ
• Output: Medium Small Electromagnetic Relay
• Contact capacity: 10A 240VAC or 28 VDC 10A

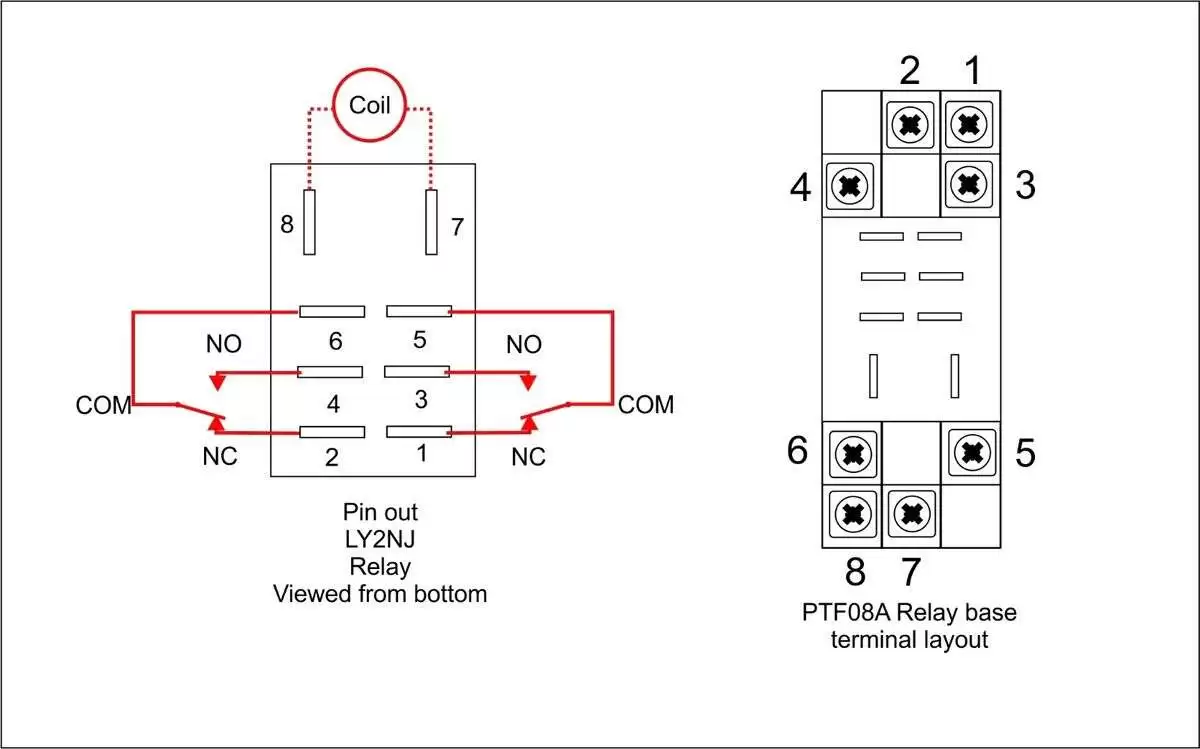

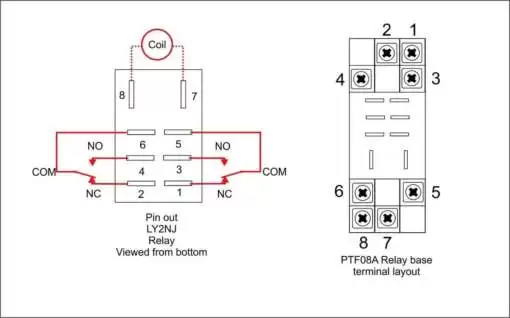

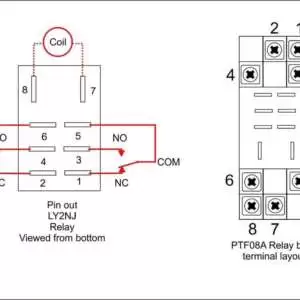

• Contact Structure: 8 pins 2 normally open NO , 2 normally closed NC
• Contacts: Silver Plated Gold
• LED indicator
• Terminal Model: Socket Type
• Coil Voltage: 12VDC , 24VDC , 24VAC , 110VAC , 220VAC (According to your choice)

Applications:

• Automation Systems: Widely used in industrial automation for controlling motors, solenoids, and other heavy-duty electrical equipment.
• Control Circuits: Ideal for use in control circuits, where a small control current is used to switch higher power devices.
• Home Appliances: Often found in household appliances for switching components like heating elements or fans.
• Relay Logic Systems: Common in relay logic systems, helping control multiple functions with a single input signal.
• Car Electronics: Used in automotive electronics for controlling lights, horns, and other high-power components.
• Security Systems: Employed in security and alarm systems for controlling switches and triggering alarms.

Note:

The Omron LY2N-J relay is available with or without the socket for your convenience, providing flexibility to suit your system setup.
