ESP32-S2 WEMOS S2 Mini Development Board

ESP32-S2 WEMOS S2 Mini Development Board

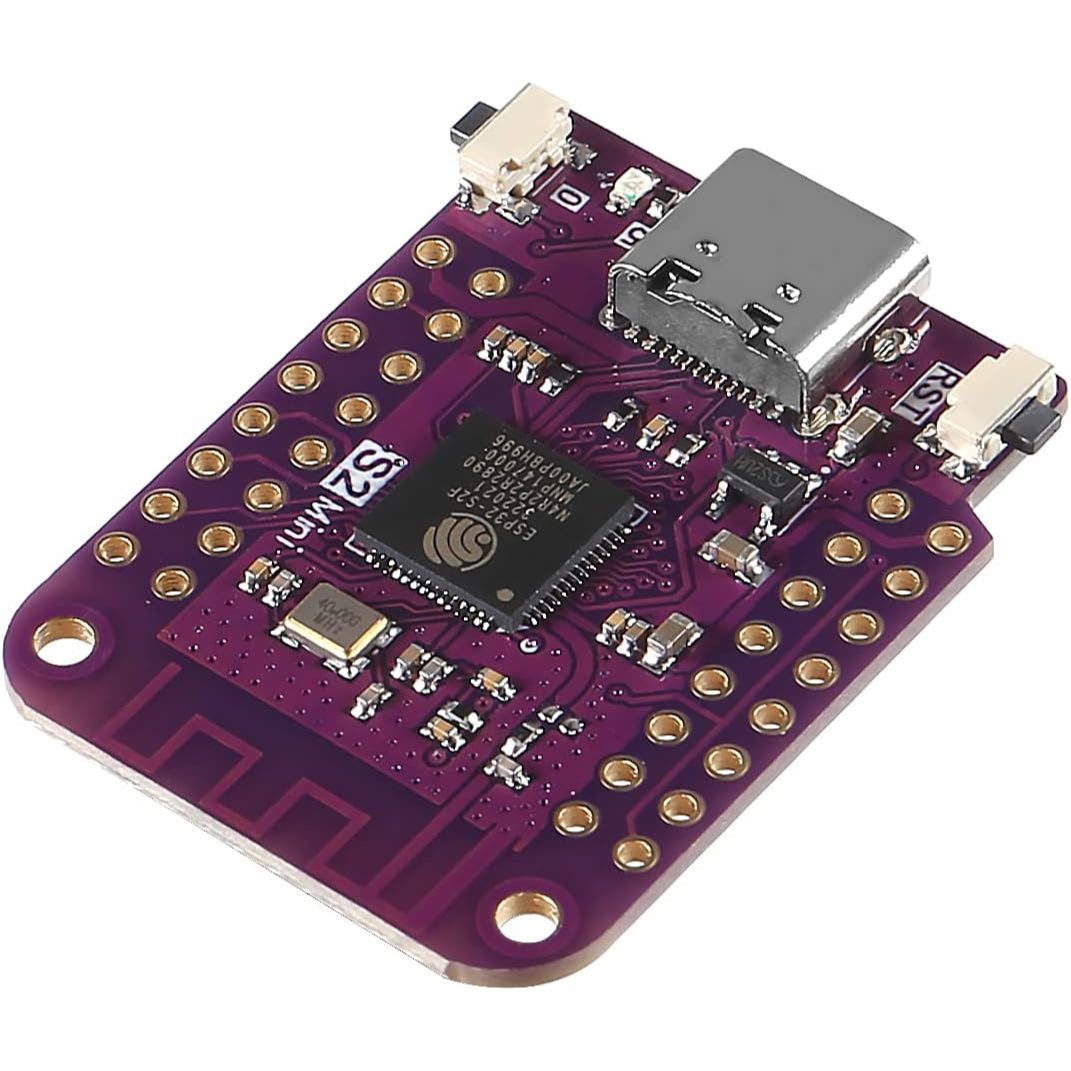

The ESP32-S2 WEMOS S2 Mini Development Board is a compact, high-performance development platform designed for embedded systems and IoT applications. Featuring the powerful ESP32-S2 single-core processor with integrated Wi-Fi, this board offers a perfect balance between performance, energy efficiency, and versatility. Built around the ESP32-S2FN4R2 chip, it includes 4MB Flash and 2MB PSRAM, making it well-suited for projects requiring ample memory and wireless connectivity.

Features:

• based ESP32-S2FN4R2 WIFI IC.
• Type-C USB.
• 4MB Flash.
• 2MB PSRAM.
• 27x IO.
• ADC, DAC, I2C, SPI, UART, USB OTG.
• Compatible with LOLIN D1 mini shields.
• Compatible with MicroPython, Arduino, Circuit Python and ESP-IDF.
• Default firmware: MicroPython.

Specifications:

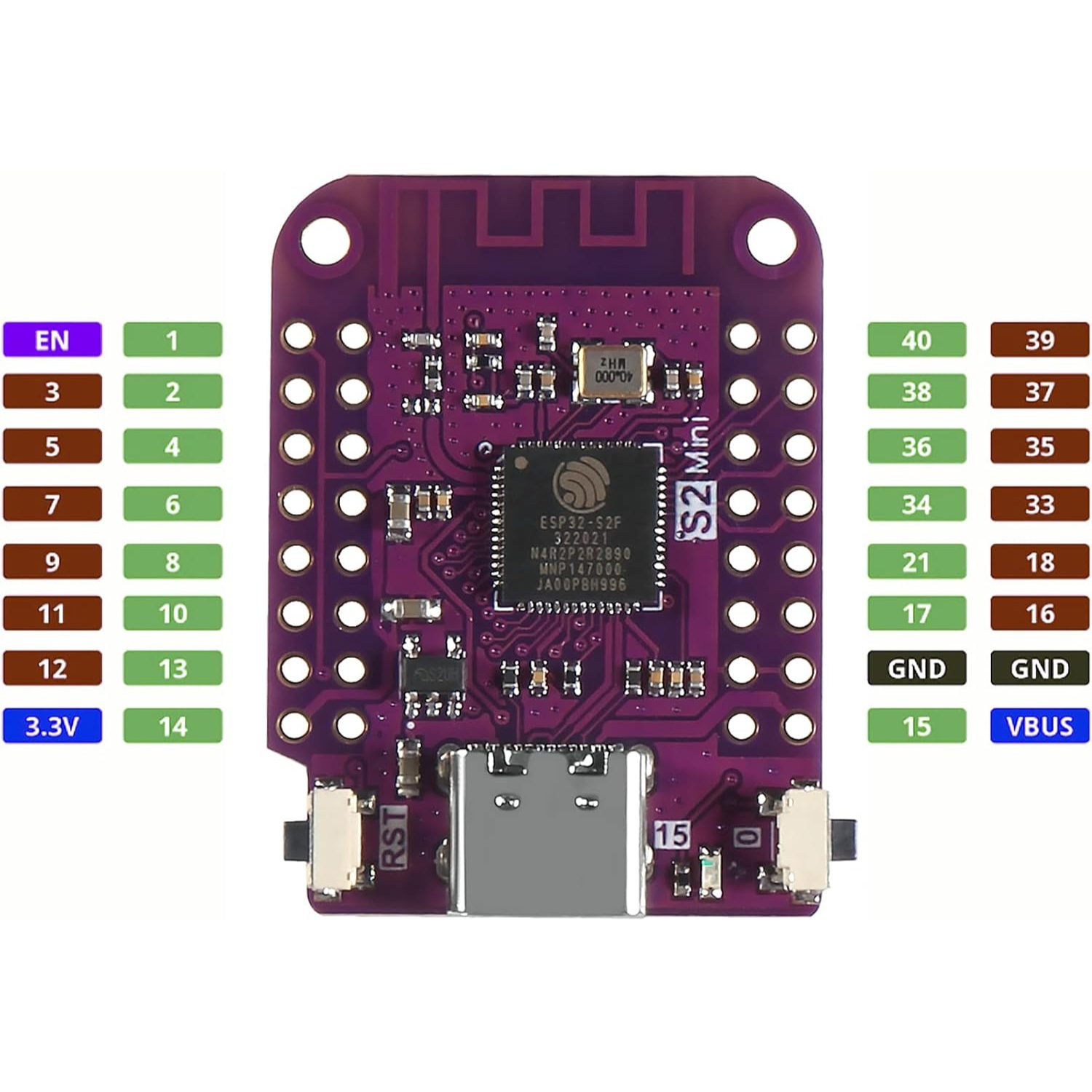

Pin Configuration:

Applications:

• IoT sensor hubs.
• Smart home devices.
• Wearable electronics.
• Industrial automation.
• Health monitoring.
• Educational projects.

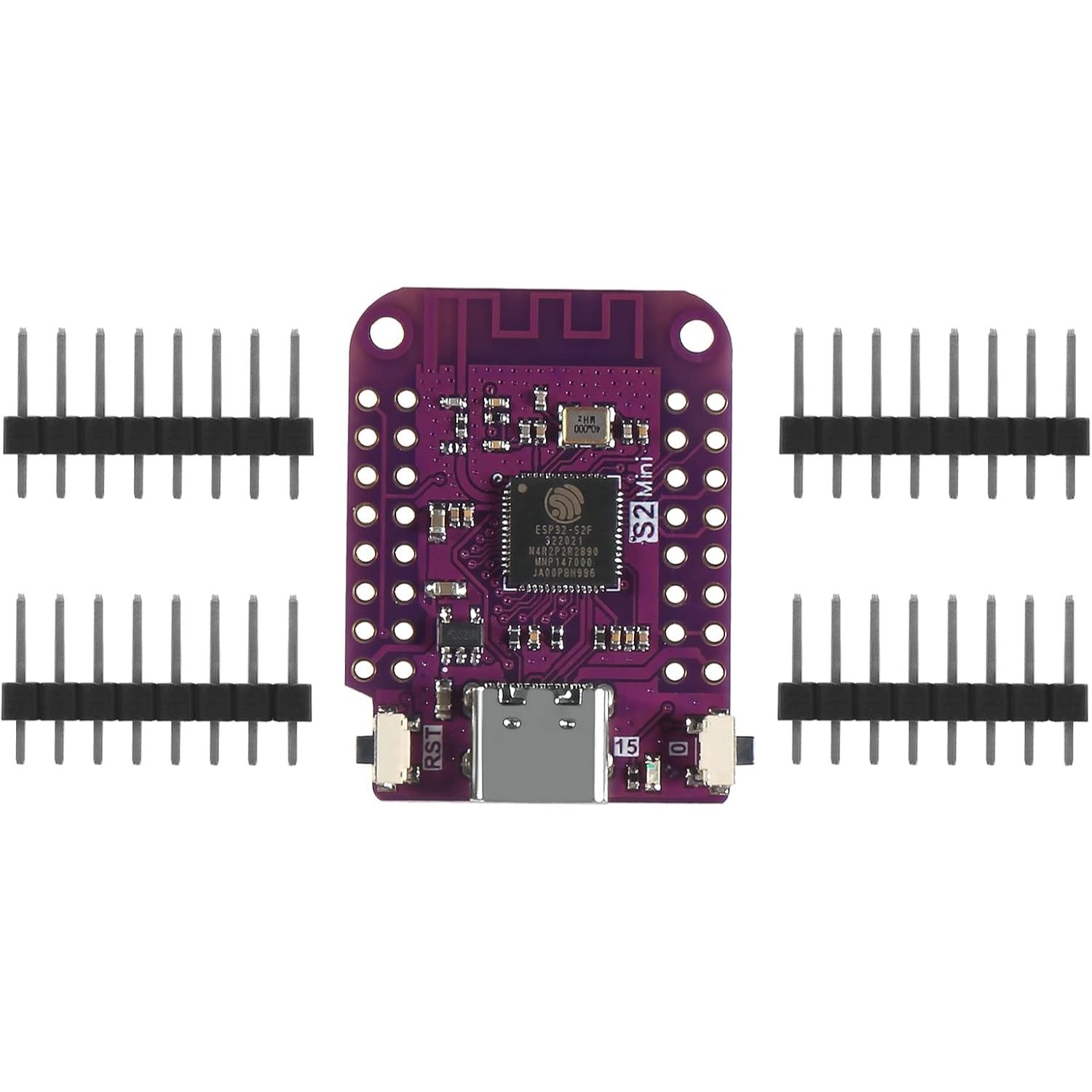

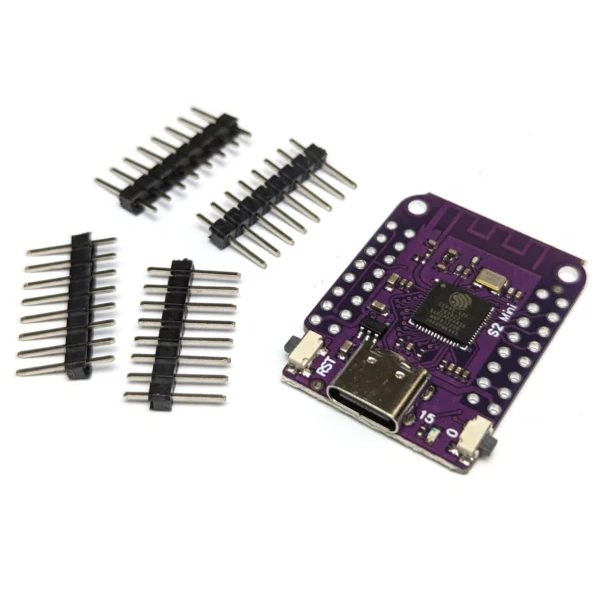

Package Include:

• 1x ESP32-S2 WEMOS S2 Mini Development Board.
• 4x Male pin header(8pins).

Documentation:

• Manufacturer Specifications
• Factory MicroPython firmware
• ESP32-S2
