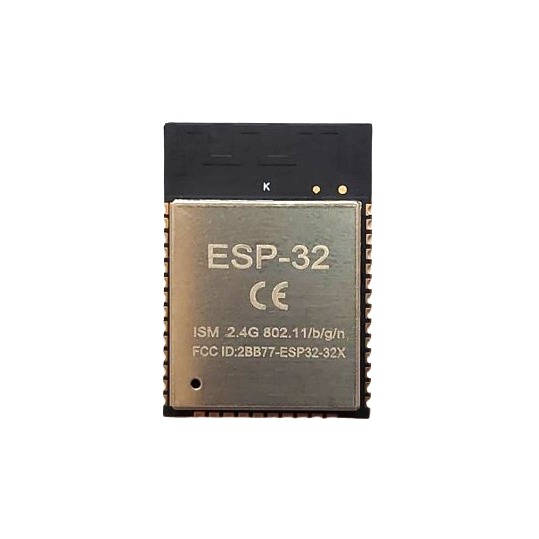

ESP32-WROOM-32 SMD,18×25.5mm WiFi Module

ESP32-WROOM-32 SMD,18×25.5mm WiFi Module

A chip from the ESP32 family based on the Espressif ESP32-WROOM-32 chipset. Designed for communication in a WiFi network in the 2.4 GHz band and the standard 802.11b/g/n (802.11n up to 150 Mb / s) and Bluetooth BLE / v4.2. The chip is available in surface-mount housing – SMD. It has 32 GPIO pins, including popular interfaces such as UART, SPI, and I2C: UART, SPI or I2C. All leads are labeled, which makes the work much easier. The compact size of the module is 18 x 25.5 x 3.1 mm.

Features:

• 18×25.5mm SMD package, ideal for space-constrained designs.
• Low power consumption, perfect for battery-operated applications.
• Wide voltage range support for flexibility in various systems.
• Easy integration with microcontrollers and development boards.
• Robust performance for IoT, wearable devices, and home automation.

Specifications

• ESP32-WROOM-32 contains two low-power Xtensa 32-bit LX6 microprocessors
• 448 KBytes ROM for booting and core functions
• 520 KBytes on-chip SRAM
• 8 KBytes SRAM in RTC SLOW
• 8 KBytes SRAM in RTC FAST
• 1 Kbit of EFUSE, 256 bits MAC
• WiFi: 802.11 b/g/n/d/e/i/k/r (802.11n up to 150 Mbps)
• Bluetooth-compatible v4.2 BR/EDR and BLE specification
• Wi-Fi mode Station/softAP/SoftAP+station/P2P
• Security WPA/WPA2/WPA2-Enterprise/WPS
• Encryption AES/RSA/ECC/SHA
• IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT
• Interfaces: SD-card, UART,SPI,SDIO,I2C,LED PWM,Motor PWM,I2S ,IR,GPIO, capacitive touch sensor, ADC, DAC, Hall sensor, temperature sensor
• Operating temperature -40 + 85C
• Operating voltate: 2.2-3.6V
• Consumption: 80 mA typ
• Dimensions: 18 mm(L) x 25.5 mm(W) x 2.8 mm(H)
• Pin pitch:1.27mm
• Shielding can height: 2 mm
• PCB thickness: 0.8±0.1mm

Pin Configuration:

Datasheet:

ESP32-WROOM-32
