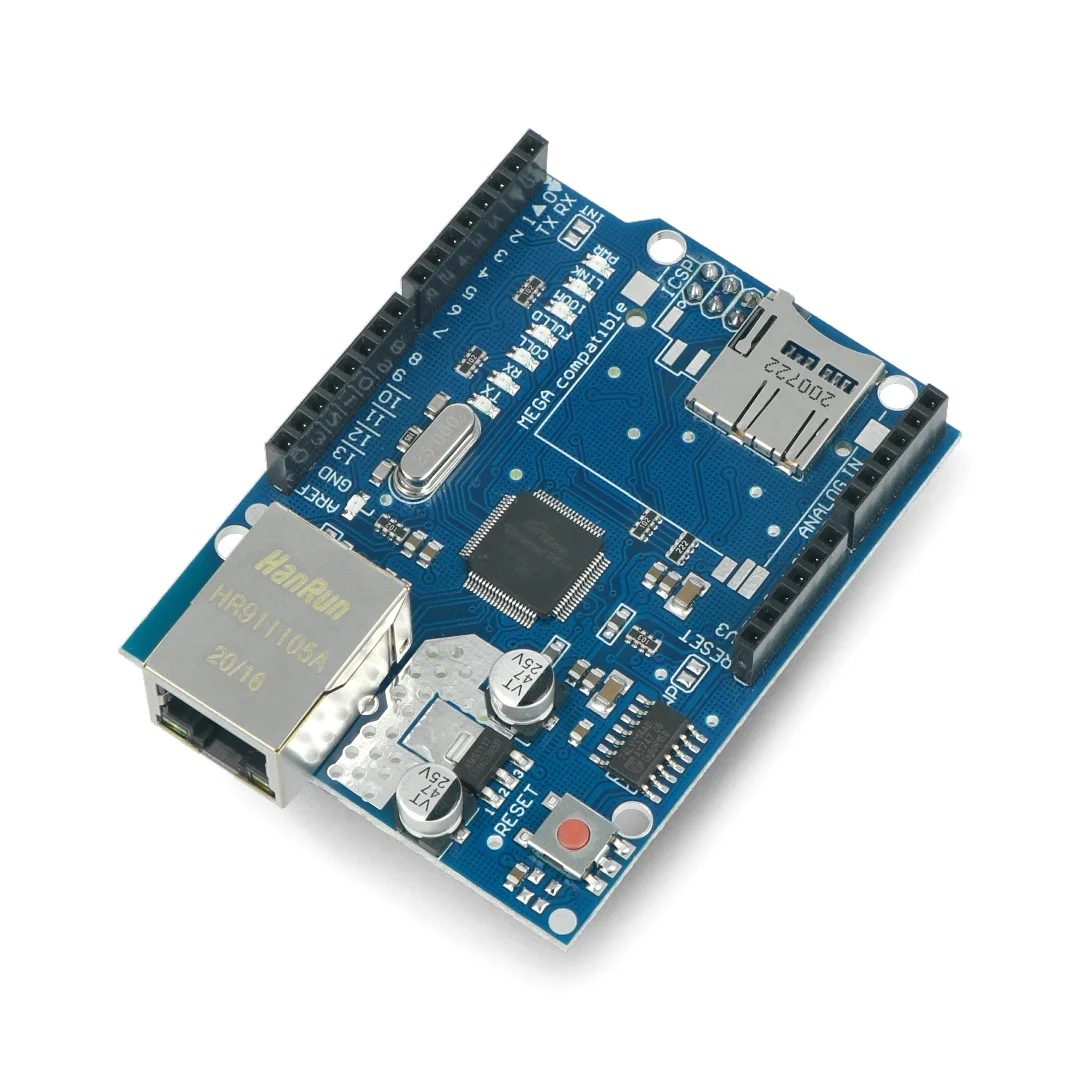

Ethernet Shield Module W5100 For Arduino

Module based on W5100, allowing users of Arduino, a simple way to connect with Ethernet. Works with the Arduino Uno and Mega 2560. It has also a device for reading memory cards microSD.

Description

Module based on W5100, allowing users of Arduino, a simple way to connect with Ethernet. Works with the Arduino Uno and Mega 2560. It has also a device for reading memory cards microSD.

The device supports embedded in the environment of Arduino IDE, the Ethernet libraries and the SD Card.

Specification

• Working voltage: 5 V
• Ethernet slot RJ45
• Equipped with the Wiznet W5100 chip
• Mounted device for reading memory cards microSD
• Communication via SPI interface
• Supports the official library of Arduino Ethernet
• Supports the official library of Arduino SD Card
• The dimensions of the plate: 70 x 55 x 30 mm

Features :

• Based on the W5100Based on the Wiznet W5100 allows an Arduino board to connect to the internet.
• Stackable Design, can directly be supported by for Arduino official Ethernet Library.
• Supports up to four simultaneous socket connections
• Can be used to store files for serving over the network.
• Compatible with the for Arduino Duemilanove (168 or 328), Uno as well as Mega (1280/2560).
• Can be accessed using the Mini SD TF library.
• The current shield has a Power over Ethernet (PoE) module designed to extract power from a conventional twisted pair Category 5 Ethernet cable.
• IEEE802.3af compliant
• Low output ripple and noise (100mVpp)
• Overload and short-circuit protection
• 1500V isolation (input to output)

W5100 Datasheet
