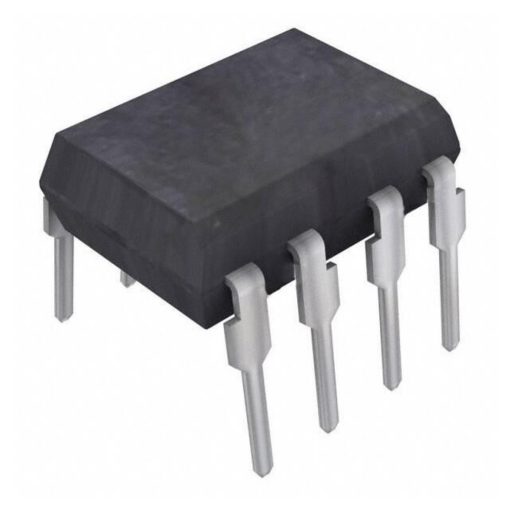

EVERLIGHT 6N137 50mA 10Mbps 1.4V 4.5V~5.5V DC DIP-8 Logic Output Optocoupler

EVERLIGHT 6N137 50mA 10Mbps 1.4V 4.5V~5.5V DC DIP-8 Logic Output Optocoupler

The EVERLIGHT 6N137 50mA 10Mbps 1.4V 4.5V~5.5V DC DIP-8 Logic Output Optocoupler is a sophisticated optical isolation device designed for high-speed digital signal transmission and noise immunity in electronic systems. This component integrates an infrared emitting diode with a high-speed integrated photodetector logic gate, providing a strobable output that enhances control flexibility. Operating on a supply voltage range of 4.5V to 5.5V DC, it supports data rates up to 10Mbps, making it ideal for applications requiring fast and reliable logic level interfacing while maintaining electrical isolation between input and output circuits. The typical forward voltage of 1.4V at 10mA input current ensures efficient operation, and the device’s 50mA maximum forward current rating allows for robust performance under varying loads.

Features:

• High-speed data transmission up to 10Mbps.
• Minimum common mode transient immunity of 10kV/μs for EL2611 variant.
• Guaranteed operation from -40°C to +85°C temperature range.
• Logic gate output with enable function for strobable control.
• High isolation voltage of 5000Vrms between input and output.

Specifications:

Pin Configurations:

Applications:

• Ground loop elimination in electronic systems.
• Interfacing LSTTL to TTL or 5V CMOS logic.
• Line receivers for data transmission.
• Data multiplexing in communication networks.
• Isolation in switching power supplies.
• Pulse transformer replacement in power electronics.
• Computer peripheral interfaces for signal isolation.
• High-speed logic ground isolation in industrial controls.

Package Include:

1x EVERLIGHT 6N137 50mA 10Mbps 1.4V 4.5V~5.5V DC DIP-8 Logic Output Optocoupler.

Datasheet:

6N137
