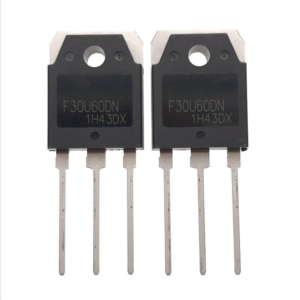

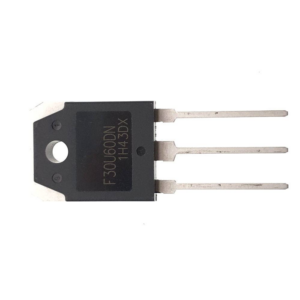

High Power 600V 30A Diode Array – Common Cathode, Through Hole, TO-3P
Product Attributes
| Type | Description |
| Category | Diodes
Rectifiers Diode Arrays |
| Diode Configuration | 1 Pair Common Cathode |
| Technology | Standard |
| Voltage – DC Reverse (Vr) (Max) | 600 V |
| Continuous forward current (If) | 30A |
| Voltage – Forward (Vf) (Max) @ If | 1.6 V @ 15 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 45 ns |
| Current – Reverse Leakage @ Vr | 20 µA @ 600 V |
| Operating Temperature – Junction | 175°C |
| Mounting Type | Through Hole |
| Package / Case | TO-3P-3 |
F30U60DN Datasheet
