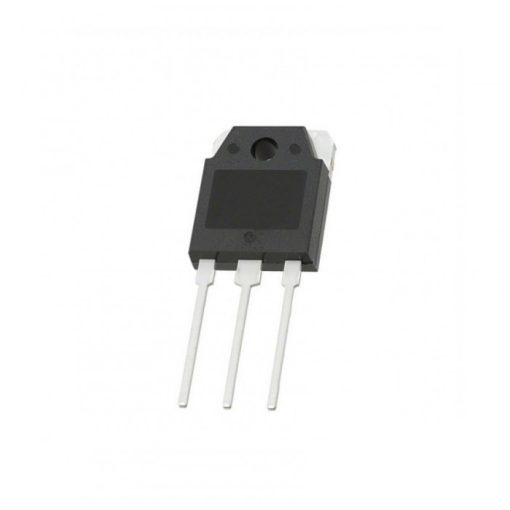

F70UP30DN 70A 300V Ultrafast Dual Diode TO-3P
F70UP30DN 70A 300V ultrafast dual diode in TO-3P package with low forward voltage and fast recovery for high-efficiency power applications.
90.00 EGP
Buy NowF70UP30DN 70A 300V Ultrafast Dual Diode TO-3P
The F70UP30DN 70A 300V Ultrafast Dual Diode TO-3P is a high-efficiency power rectifier designed for fast switching and high-current applications. This device features a dual diode configuration with a common cathode structure, allowing compact circuit design and simplified thermal management in high-power systems.
Features:
- Ultrafast recovery diode with soft recovery characteristics.
- Dual diode configuration with common cathode structure.
- High current capability up to 70A.
- Reverse voltage rating up to 300V.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Ultrafast Soft Recovery Diode. |
| Configuration | Dual diode (common cathode). |
| Repetitive peak reverse voltage (VRRM) | 300V. |
| Continuous forward current (IF(AV)) | 70A (Tc=110°C). |
| Single pulse forward surge current (IFSM) | 600A (Tc=25°C). |
| Maximum repetitive forward current (IFRMS) | 150A (square wave, 20kHz). |
| Operating junction temperature (TJ) | -55°C to +175°C. |
| Storage temperature (TSTG) | -55°C to +175°C. |
| Forward voltage (VF) per diode | 0.96V typ / 1.20V max (IF=40A, 25°C). |
| Forward voltage (VF) per diode @125°C | 0.85V typ / 1.00V max (IF=40A). |
| Reverse leakage current (IR) per diode | 10µA typ (VR=VRRM, 25°C). |
| Reverse leakage current @150°C | 100µA max (VR=400V). |
| Reverse recovery time (trr) per diode | 35ns typ / 45ns max (IF=0.5A, IR=1A, IRR=0.25A). |
| Reverse recovery time (trr) | 26ns typ / 32ns max (IF=1A, VR=30V, di/dt=200A/µs). |
| Junction‑to‑case thermal resistance (RθJC) | 0.82°C/W typ / 2.0°C/W max. |
| Package | TO‑3P (as confirmed by physical part). |

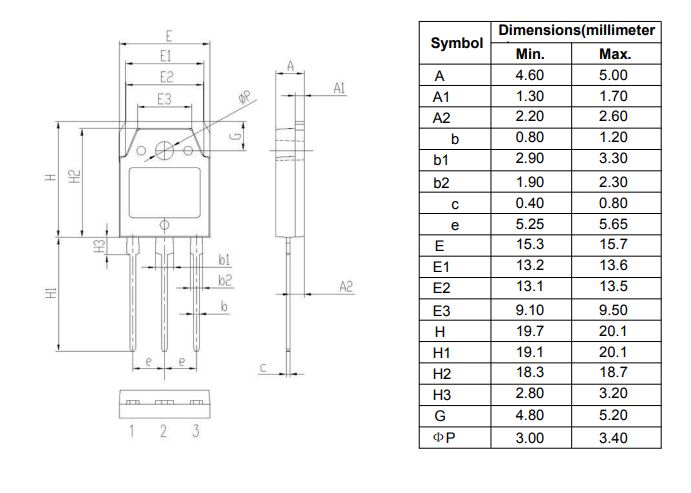

| Mounting type | Through hole. |

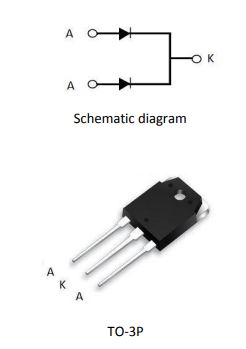

Pin Configuration:
Applications:
- Switching Mode Power Supplies (SMPS).
- Freewheeling and clamping circuits.
- Motor drive and control systems.
- Inverters and converters.
- Industrial welding equipment.
- UPS and power backup systems.
- High-frequency rectification circuits.
Package Include:
1x F70UP30DN 70A 300V Ultrafast Dual Diode TO-3P.
Datasheet:
Note: Datasheet is for F60UP30DN (60A). F70UP30DN is a custom variant with IF(AV) increased to 70A. All other specs identical.
