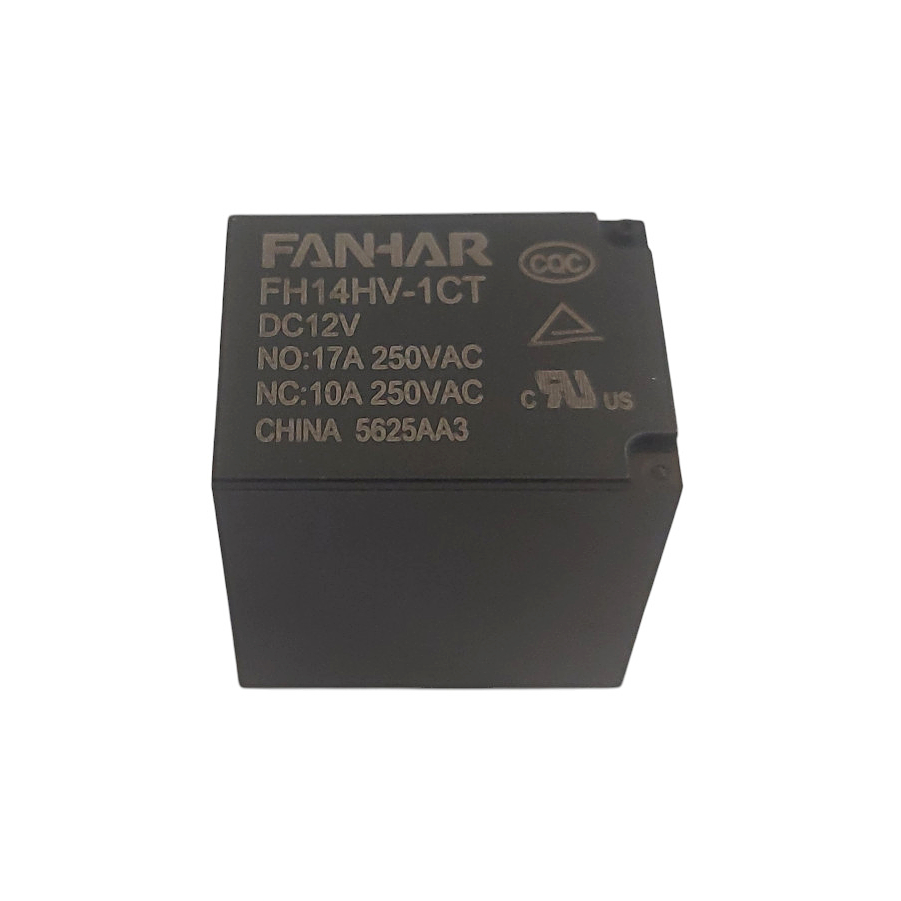

FANHAR Power Relay FH14HV-1CT-DC12V 17A 5 Pin

FANHAR Power Relay FH14HV-1CT-DC12V 17A 5 Pin

Introducing the FANHAR FH14HV-1CT-DC12V, a compact and reliable power relay designed for high-performance switching in a variety of applications. This relay is part of the high dielectric strength FH14HV series, making it a robust choice for demanding electrical environments. With a 17A switching capability and a durable UL Class F insulation system, the FH14HV ensures both safety and longevity. Its ultra-small, standard PCB terminal design allows for easy integration into your projects. The use of AgSnO2 (Silver Tin Oxide) contact material provides excellent resistance to arc erosion and welding, ensuring stable and reliable performance over a long operational life.

Features

● 17A switching capability
● Products with operating temperature of 105℃ are available
● UL insulation system:Class F
● Ultra – small type,standard PCB terminals.
● Outline Dimensions:(21.0 x 16.0 x 21.3)mm

Applications

• Household Appliances
• Industrial Control
• Smart Home Devices
• New Energy Systems
• Power Management

Documents

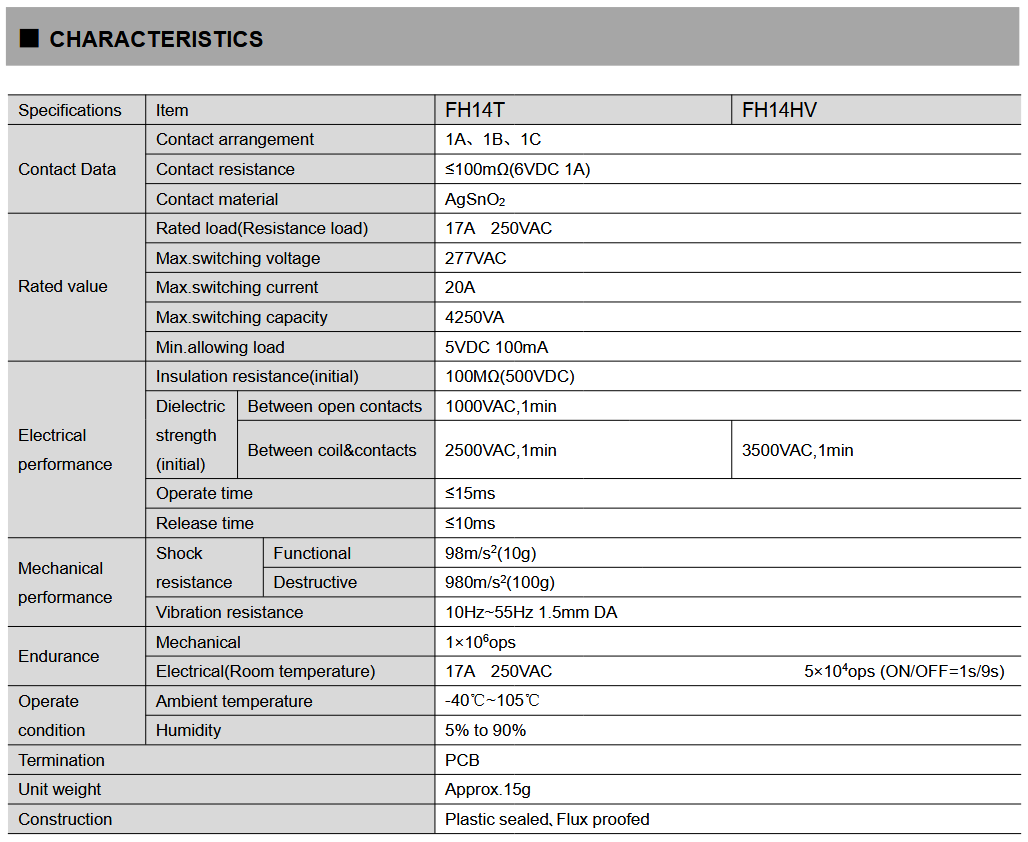

• FH14T FH14HV DataSheet
• FH14T FH14HV ROHS VERIFICATION REPORT
• FH14T FH14HV TUV Certificate
