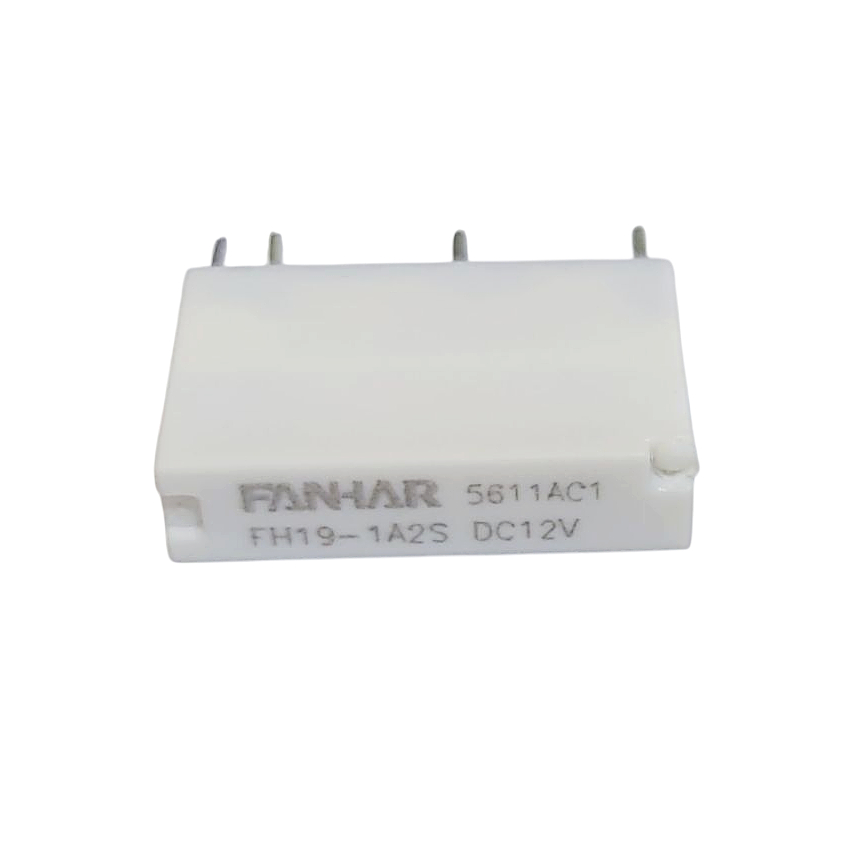

FANHAR Power Relay FH19-1A2S-DC12V 5A 4 Pin
FANHAR relays are electromechanical switches used to control circuits. They use a small current to control a larger current, offering isolation and automation for various applications.
70.00 EGP
Buy NowFANHAR Power Relay FH19-1A2S-DC12V 5A 4 Pin
The FANHAR Power Relay FH19-1A2S-DC12V 5A 4 Pin is a compact and efficient relay featuring a bifurcated welded double contact structure. With a slim 5mm thickness, it is ideal for high-density installations. This relay offers a high-sensitive type with a coil power of 120mW and is environmentally friendly, complying with RoHS standards. It is perfect for industrial control systems requiring robust performance and durability.
Features
- Bifurcated welded double contact structure for enhanced reliability
- Slim 5mm thickness, suitable for high-density installation
- High-sensitive type with 120mW coil power
- UL insulation system: Class F
- Environment-friendly product (RoHS compliant)

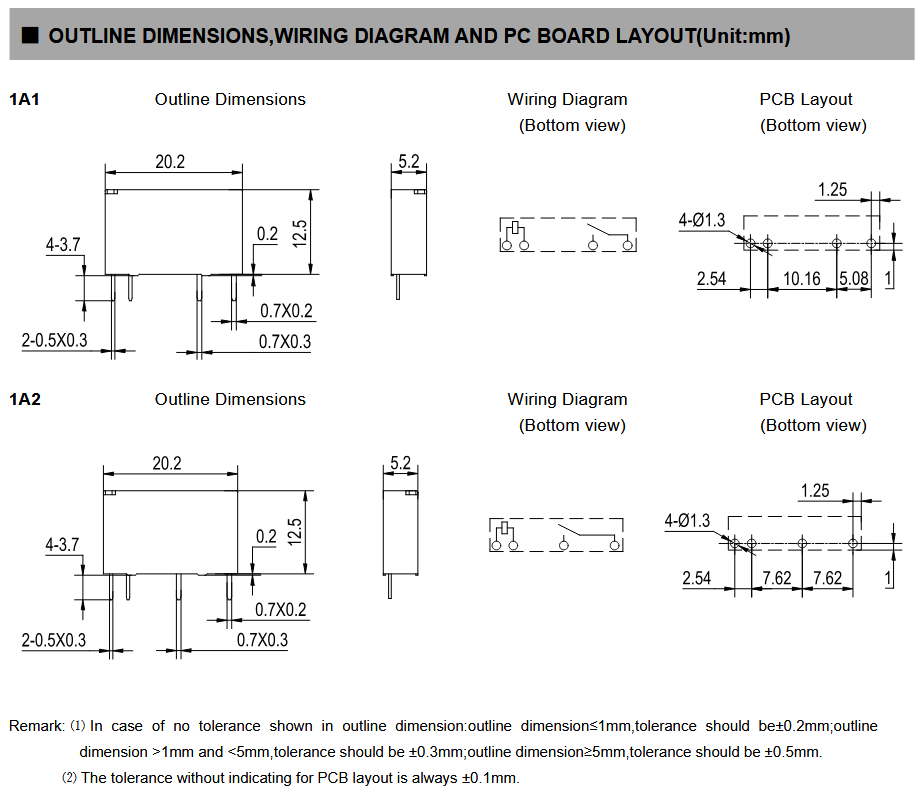

- Compact outline dimensions: (20.2×5.2×12.5)mm
- Main application: Industrial Control
Applications
- Industrial Control Systems
- High-density electronic assemblies
- Automation and process control
Certifications

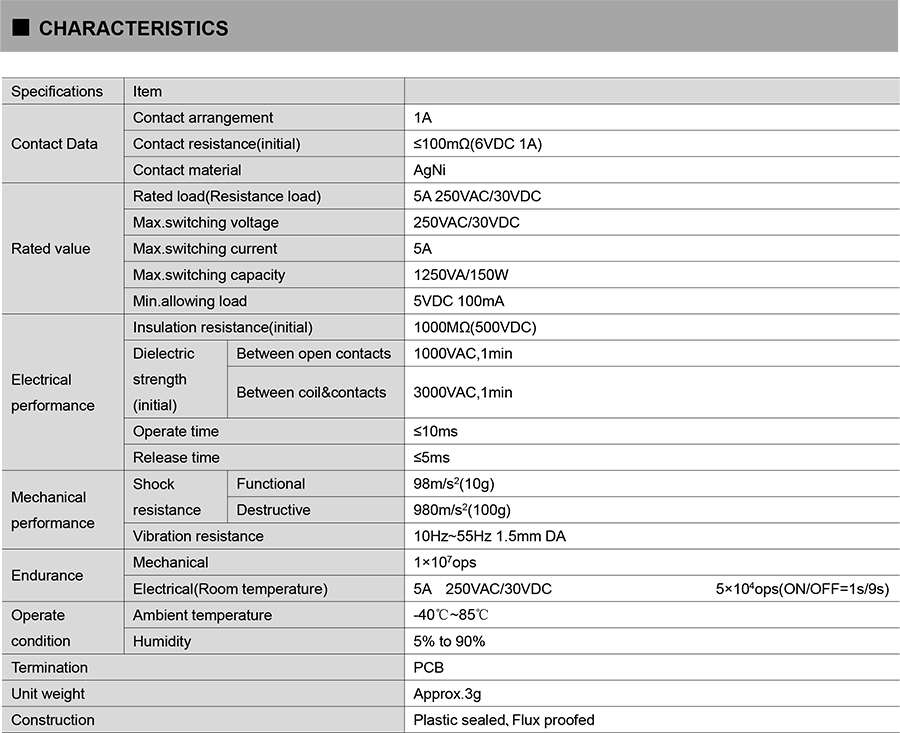

DataSheet
| Weight | 3 g |
|---|
