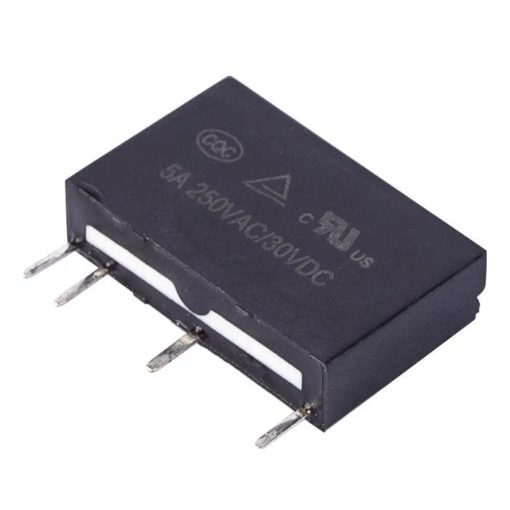

FANHAR Power Relay FH19-1A2S-DC5V 5A 4 Pin

FANHAR Relay FH19 Description

• Product type: FH19
• 5A switching capability
• Coil voltage: 5V
• The thickness of the product is 5mm, suitable for high density installation
• High sensitive type, coil power is 120mW
• UL insulation system: Class F
• Environment-friendly product(RoHS compliant)
• Outline Dimensions: (20.2×5.2×12.5)mm
• Main application: Industrial Control
• Functions equal to: HF49FD(Hongfa), G6DS(Omron), PA/APAN3(Panasonic), PCN(TE)

FH19 Datasheet
