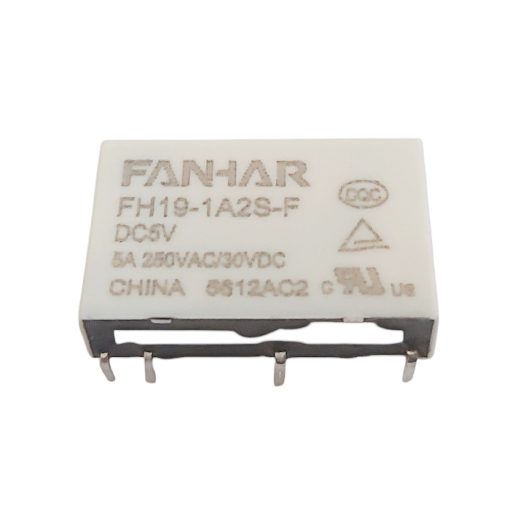

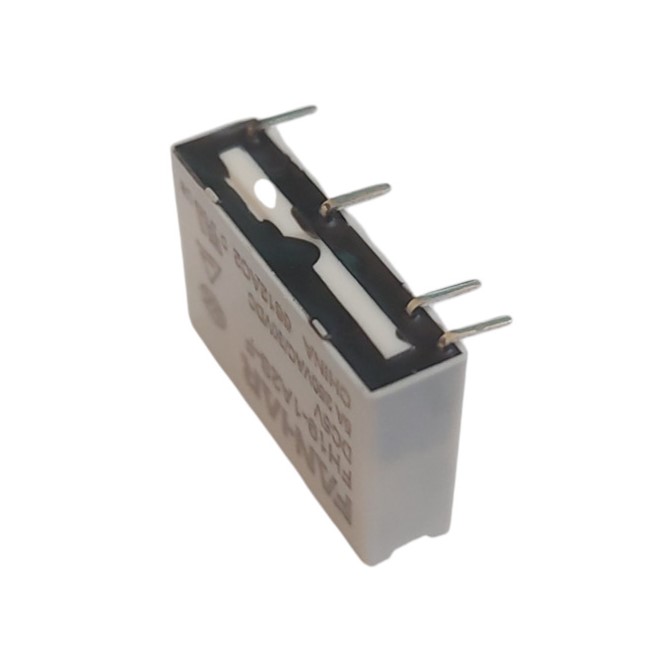

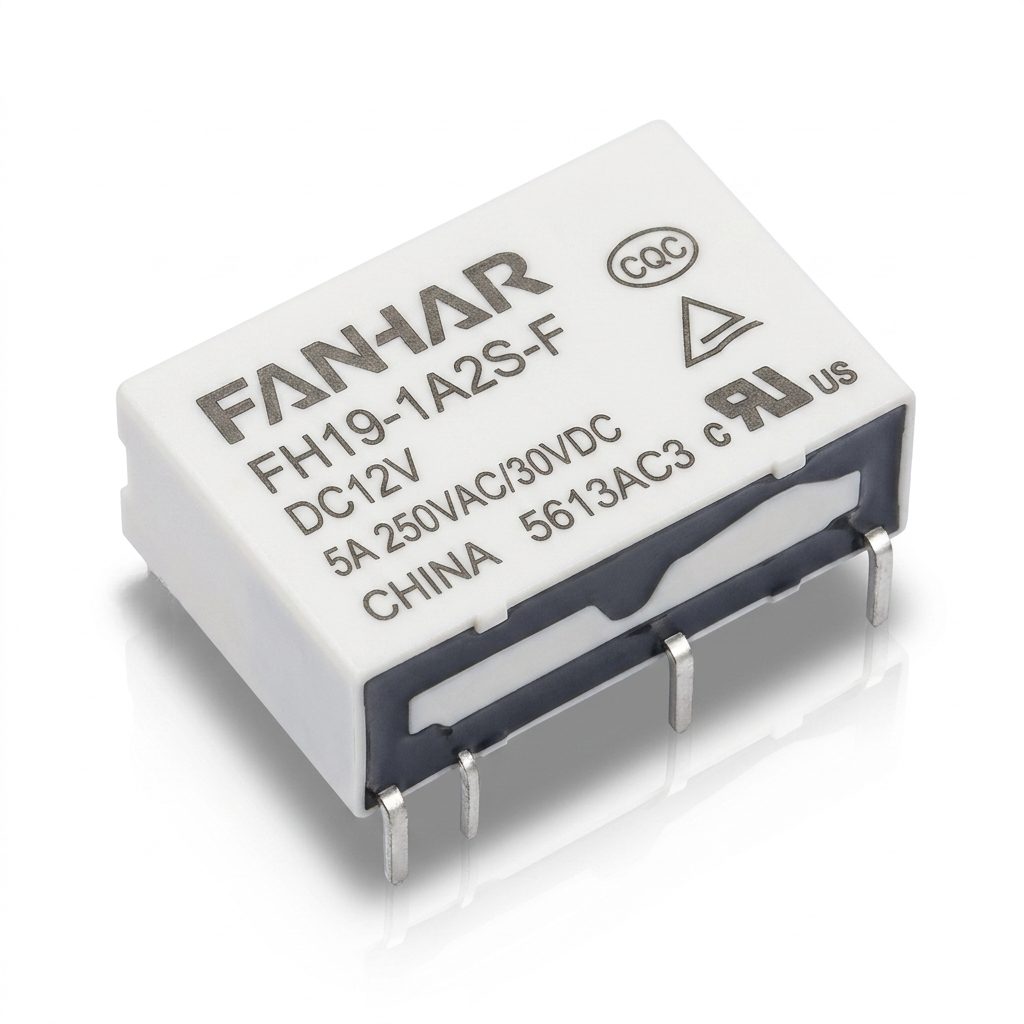

FANHAR Power Relay FH19-1A2S-F-DC5V 5A 4 Pin
The FANHAR FH19 Power Relay is a compact 5mm thick relay with 5A capacity, ideal for high-density industrial control. Features bifurcated contacts, 120mW coil, and RoHS compliance. Operates -40°C to 85°C.
60.00 EGP
Buy NowFANHAR Power Relay FH19-1A2S-F-DC5V 5A 4 Pin
The FH19-1A2S-F-DC5V is a 5A power relay from Zhejiang Fanhar Electronics Co., Ltd., tailored for industrial control systems. Its plastic-sealed construction protects against harsh environments, while the 4-pin configuration with a 5V DC coil offers versatile mounting options. This relay is perfect for applications requiring robust switching capabilities in a compact form factor.
Features
- Bifurcated welded double contact structure
- The thickness of the product is 5mm,suitable for high density installation
- High sensitive type,coil power is 120mW
- UL insulation system:Class F
- Environment-friendly product(RoHS compliant)
- Outline Dimensions:(20.2×5.2×12.5)mm
- Main application:Industrial Control
Applications
- Industrial control systems
- Automation equipment
- Power management circuits
- High-density PCB layouts
Documents
| Weight | 3 g |
|---|
