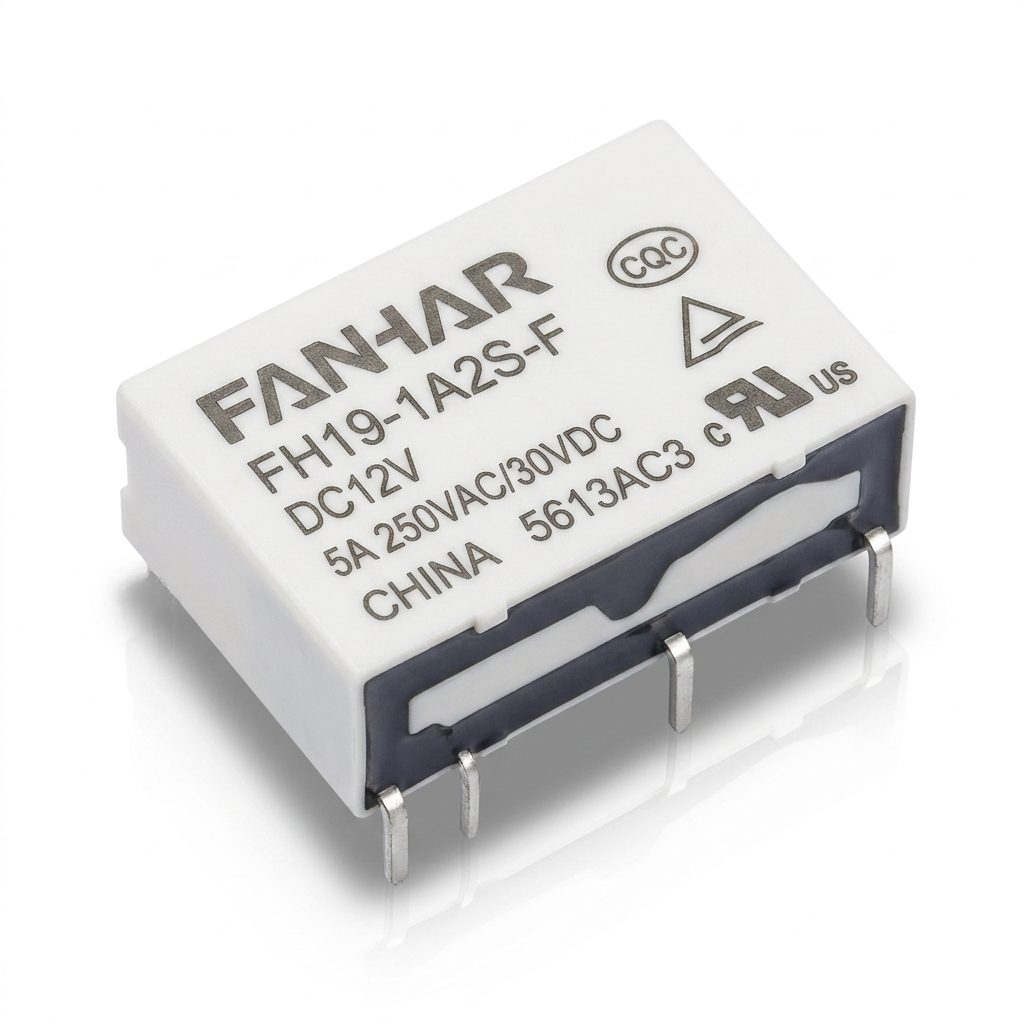

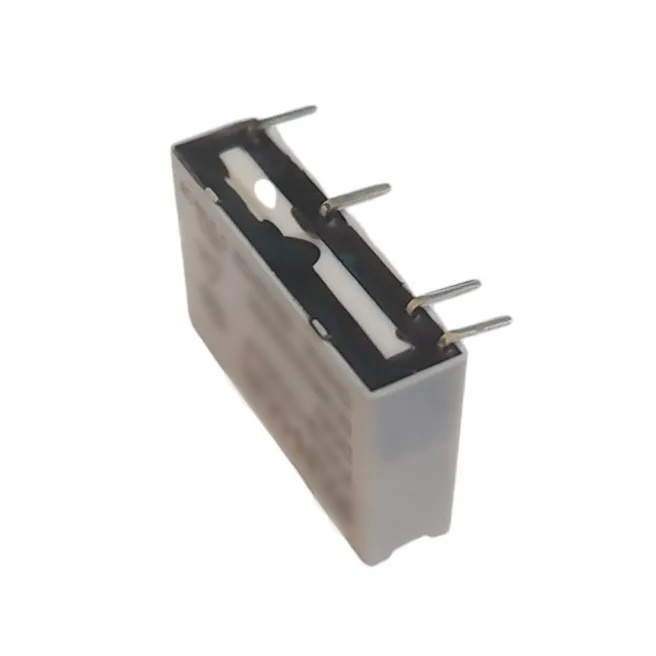

FANHAR Power Relay FH19-1A2S-F-DC12V 5A 4 Pin

FANHAR Power Relay FH19-1A2S-F-DC12V 5A 4 Pin

The FANHAR Power Relay FH19-1A2S-F-DC12V 5A 4 Pin is a high-sensitivity, environmentally friendly power relay designed for high-density installations. With a slim 5mm thickness and a bifurcated welded double contact structure, this relay offers exceptional performance and durability. Operating at a 12V DC coil voltage with a 120mW power consumption, it is ideal for industrial control systems requiring efficient and robust switching capabilities.

Features

• Bifurcated welded double contact structure for enhanced reliability
• Ultra-thin 5mm design, perfect for high-density installations
• High-sensitivity type with a coil power of 120mW
• UL insulation system: Class F
• RoHS compliant, environmentally friendly product
• Compact outline dimensions: (20.2×5.2×12.5)mm
• Plastic sealed construction for use in unclean environments

Applications

• Industrial control systems
• Automation equipment
• Power management circuits
• High-density PCB layouts

Documents

• FH19 EN(F) DataSheet
• FH19 ROHS VERIFICATION REPORT
• FH19 W19 TUV Certificate
