FANHAR Power Relay W15-2CST-DC24V 8A 8 Pin

FANHAR Power Relay W15-2CST-DC24V 8A 8 Pin

The FANHAR W15-2CST-DC24V 8A Power Relay is designed to provide robust performance in a wide range of industrial, home appliance, and control applications. This relay features a 24V DC coil voltage and is equipped with a 2FormC contact arrangement, ensuring reliable switching of high-power devices. With a rated load capacity of 8A at 250VAC and 30VDC, the W15-2CST-DC24V is an ideal choice for controlling larger systems while maintaining safe operation under varying load conditions.

Features:

• DPDT (double-pole double-throw) contact arrangement.
• 8A rated load capacity for AC and DC circuits.
• 24VDC coil voltage, low power consumption.
• 8-pin PCB mount standard base.
• Dielectric strength: 2.5kV (contacts), 5kV (coil to contacts).

Specifications:

Applications:

• Home appliances.
• Industrial control systems.
• Automotive electronics.
• Power control systems.
• DIY electronics projects.

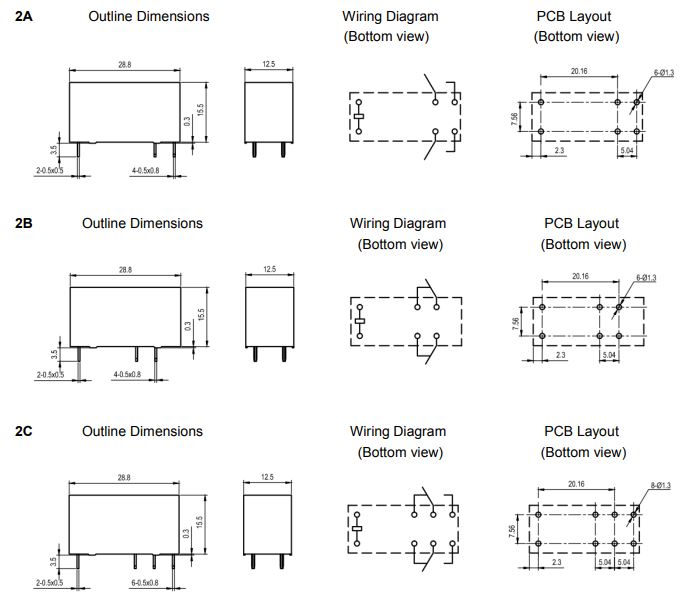

Datasheet:

W15-2
