FANHAR Power Relay W15-2CST-DC5V 8A 8 Pin

FANHAR Power Relay W15-2CST-DC5V 8A 8 Pin

The FANHAR W15‑2CST‑DC5V 8A 8‑Pin Power Relay is part of the W15‑2 series of power relays, designed for reliable switching of moderate loads in automation, smart‑home, PCB‑mounted and industrial control systems. With a nominal coil voltage of 5 V DC, this variant offers a low‑voltage drive interface suitable for micro‑controller applications or digital logic control. The “2C” in the model name indicates a 2‑pole changeover (double‑throw) contact arrangement, providing flexibility when switching two circuits or providing alternate outputs from a single coil activation.

Features:

• 5 V DC nominal coil voltage for low‑voltage drive systems.
• Dual changeover (2C) contact configuration for flexible circuit control.
• Rated for up to 8 A switching at 250 VAC or 30 V DC, with maximum switching current up to 12 A.
• Nominal coil current ~80 mA (approx. 62.6 Ω coil resistance) and coil power ~400 mW.
• High insulation/dielectric strength: 2.5 kV between contact sets, 5 kV coil‑to‑contacts.

Specifications:

Applications:

• Home appliances.
• Industrial control systems.
• Automotive electronics.
• Power control systems.
• DIY electronics projects.

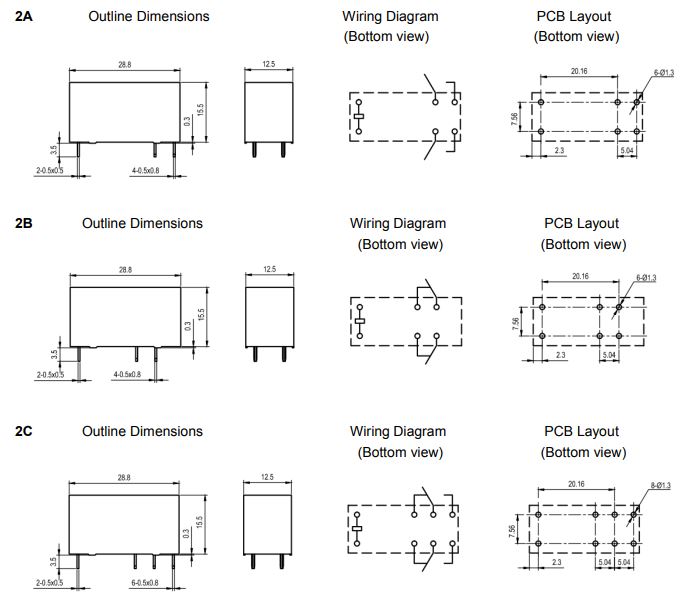

Datasheet:

W15-2
