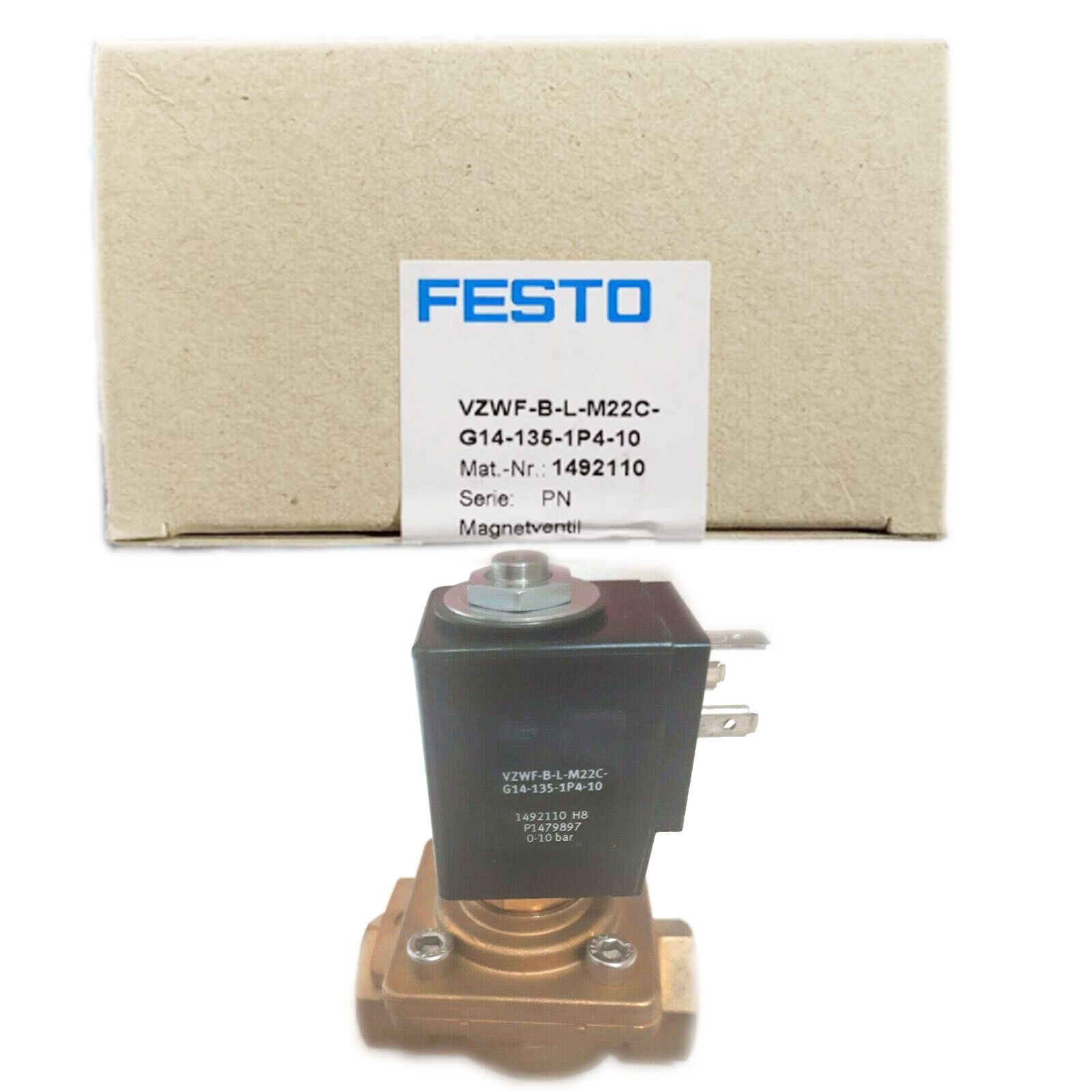

FESTO VZWF-B-L-M22C-G14-135-1P4-10 Solenoid Valve
The FESTO VZWF-B-L-M22C-G14-135-1P4-10 Solenoid Valve is a high-performance, direct-operated valve designed for precise control of fluid and gas flow in industrial applications. Engineered with robust materials, it ensures durability and long service life even in demanding environments. This solenoid valve features a normally closed (NC) configuration, meaning it remains shut when de-energized, allowing fluid passage only when actuated. It is equipped with a G 1/4″ port size, making it compatible with various piping systems. With an operating pressure range of up to 10 bar, it is suitable for controlling liquids and gases with high efficiency. The coil voltage and power consumption are optimized for industrial automation, ensuring reliable switching performance. Additionally, its compact design allows for easy installation in confined spaces. This FESTO solenoid valve is ideal for applications in pneumatics, hydraulics, and fluid handling systems, providing consistent performance and precise flow regulation.
Features:
- Direct-operated solenoid valve where Ensures precise control without requiring a minimum differential pressure.
- Normally Closed (NC) configuration where Valve remains closed when de-energized and opens upon activation.
- Compact and durable design where Ideal for industrial applications with space constraints.
- High-performance materials where Built to withstand demanding conditions, ensuring long service life.
- Reliable switching performance where Designed for consistent operation in fluid and gas flow control.
- G 1/4″ port connection where Standardized threading for compatibility with various piping systems.
- High-pressure capacity where Suitable for applications requiring pressures up to 10 bar.
- Optimized coil voltage and power consumption where Ensures efficient and reliable operation.
- Versatile application where Used in pneumatics, hydraulics, and other industrial fluid handling systems.
Specifications:
- Design: Diaphragm valve Force pilot operated
- Type of actuation: Electric
- Sealing principle: Soft
- Mounting position: Solenoid vertical
- Type of mounting: In-line installation
- Part Number: 1492110
- Connection Process valve: G1/4
- Electrical connection: Type A Plugs To EN 175301-803 Square design
- Nominal size: 5 mm
- Valve function: 2/2-way, closed, monostable
- Manual override: None
- Flow direction: Non-reversible
- Medium: Compressed air to ISO 8573-1:2010 [7:-:-] Inert gases Mineral oil Water Neutral fluids Other media on request
- Nominal pressure PN: 40
- Pressure difference: 0 MPa
- Pressure difference: 0 bar
- Pressure difference: 0 psi
- Characteristic coil data: 24 V DC: 11.0 W
- Permissible voltage fluctuations: +/- 10 %
- Symbol: 00992976
- Medium pressure: 0 MPa … 1 MPa
- Medium pressure: 0 bar … 10 bar
- Medium pressure: 0 psi … 145 psi
- viscosity: 22 mm²/s
- Media temperature: -10 °C … 80 °C
- Ambient temperature: -10 °C … 35 °C
- Leakage rate to EN 12266-1: A
- Flow rate Kv: 8 m³/h
- Standard nominal flow rate (standardised to DIN 1343): 1920 l/min
- Switching time on: 130 ms
- Switching time off: 180 ms
- Note on materials: RoHS-compliant
- LABS (PWIS) conformity: VDMA24364 zone III
- Material housing: Cast brass
- Material number housing: CW617N
- Material seals: NBR
- Material screws: High-alloy stainless steel
- Material number screw: 4301
- Product weight: 1000 g
- Degree of protection: IP65
- Corrosion resistance class CRC: 1- Low corrosion stress
Applications:
- Industrial Automation and Manufacturin.
- Water and Fluid Handling Systems.
- HVAC and Refrigeration Systems.
- Pneumatic and Hydraulic Systems.
- Food and Beverage Industry.
- Medical and Pharmaceutical Equipment.
- Chemical and Process Industries.
- Automotive and Transportation.
