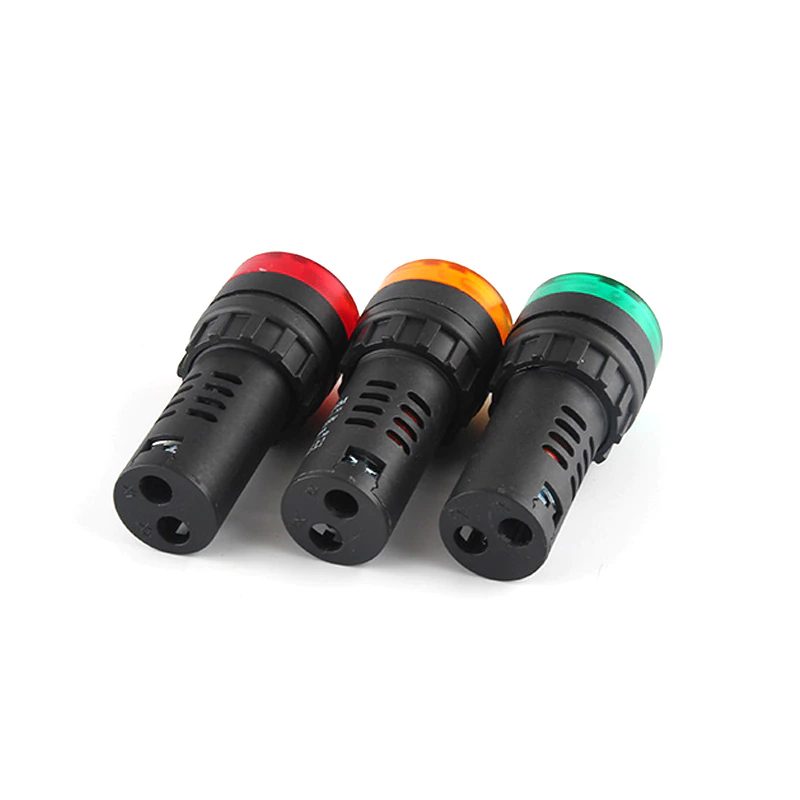

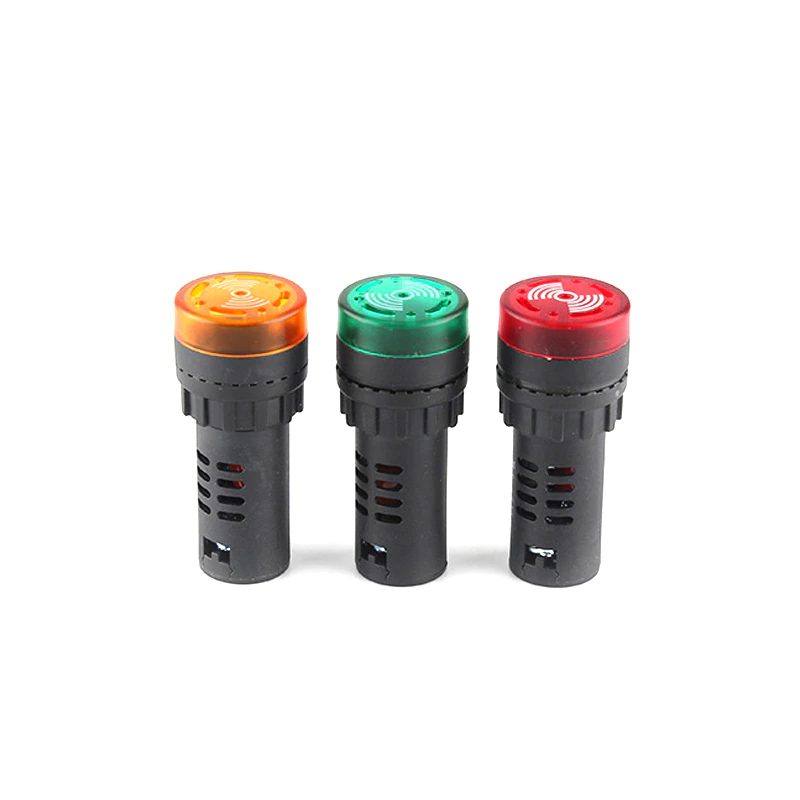

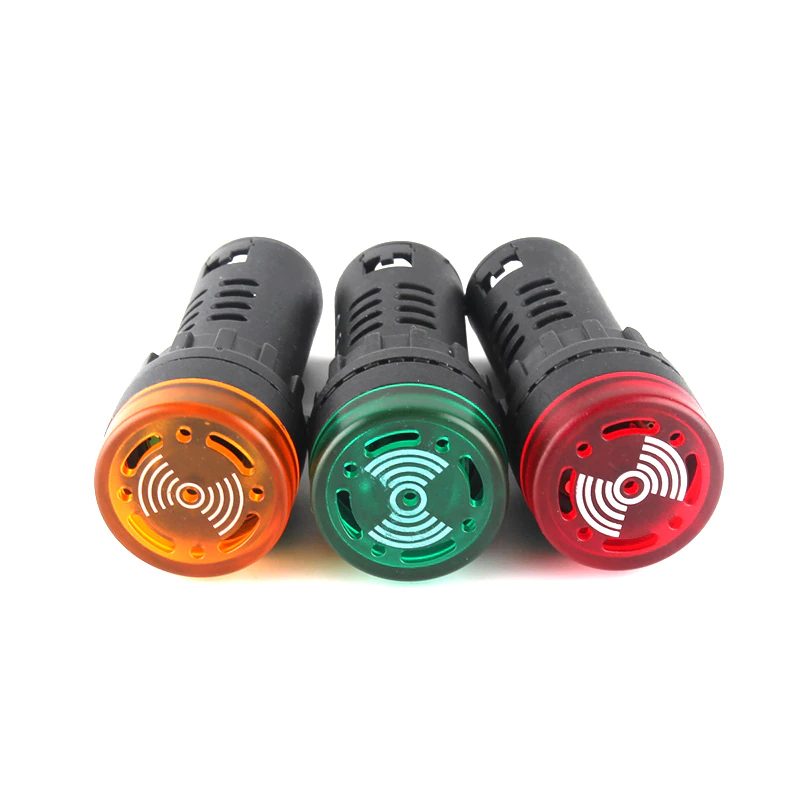

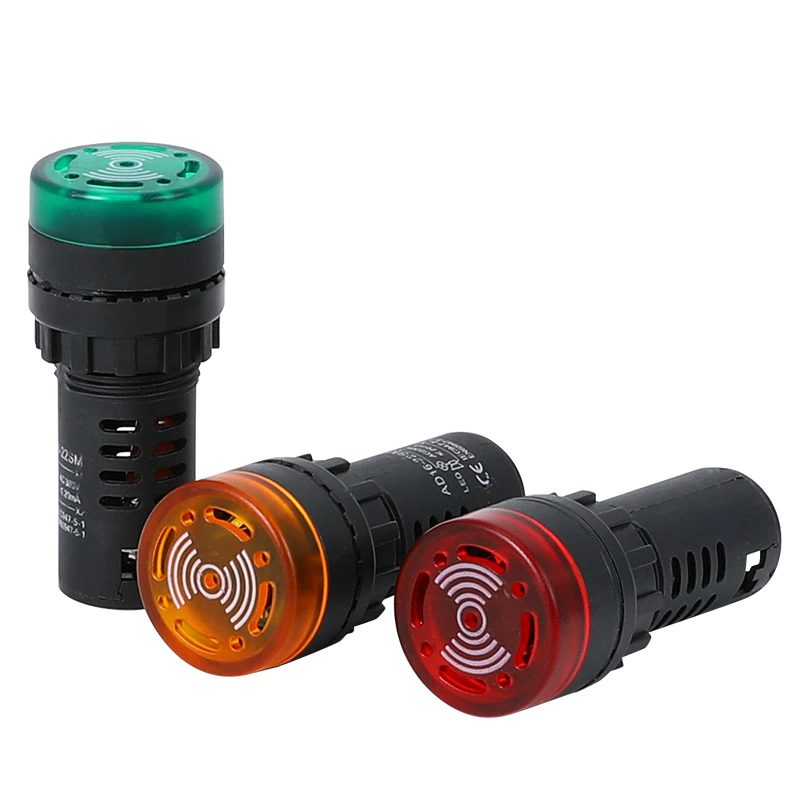

AD22-22SM Flash Buzzer 220VAC
The AD22‑22SM is a flush-fit indicator designed for control panels, signaling systems, and machine automation. Combining a high-brightness LED that flashes visibly with an integrated buzzer producing audible alarms at around 80 dB, this module operates at 220 VAC with low power consumption (~20 mA). Housed in robust, flame-retardant plastic with IP65 protection, it installs easily into standard 22 mm control panel cutouts and is ideal for industrial warning and status indication.
Features
- Flashing LED indicator combined with 80 dB buzzer for dual sensory alerts.
- Operates reliably at 220 VAC (50–60 Hz) with a current draw of approximately 20 mA.
- Compact 22 mm panel-mount design, compatible with standard control cutouts.
- Durable plastic housing with IP65 protection, ensuring environmental resistance.
- Flame‑retardant and interference-resistant components for safety and reliability.
Specifications
| Parameter | Value |
|---|---|
| Panel Cutout | 22 mm |
| Operating Voltage | 220 VAC, 50–60 Hz |
| Current Consumption | ~20 mA |
| Buzzer Sound Level | ~80 dB |
| Protection Rating | IP65 |
| Housing Material | Flame-retardant plastic |

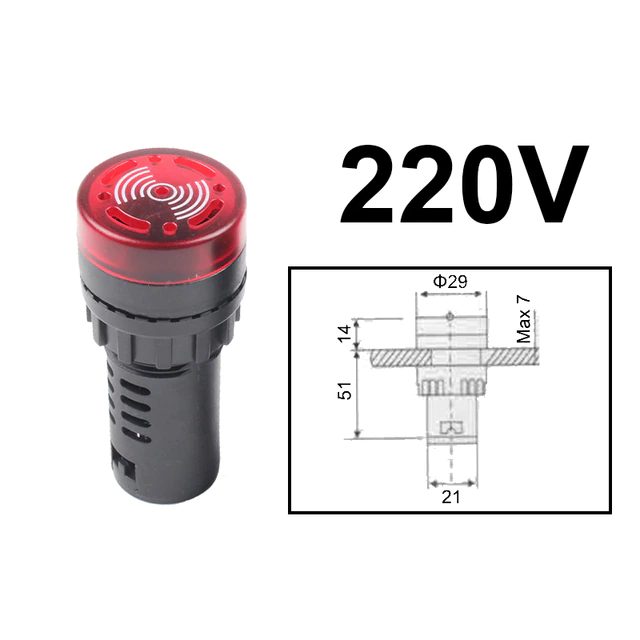

| Overall Length | 65 mm |
| Sound Type | Intermittent beep |

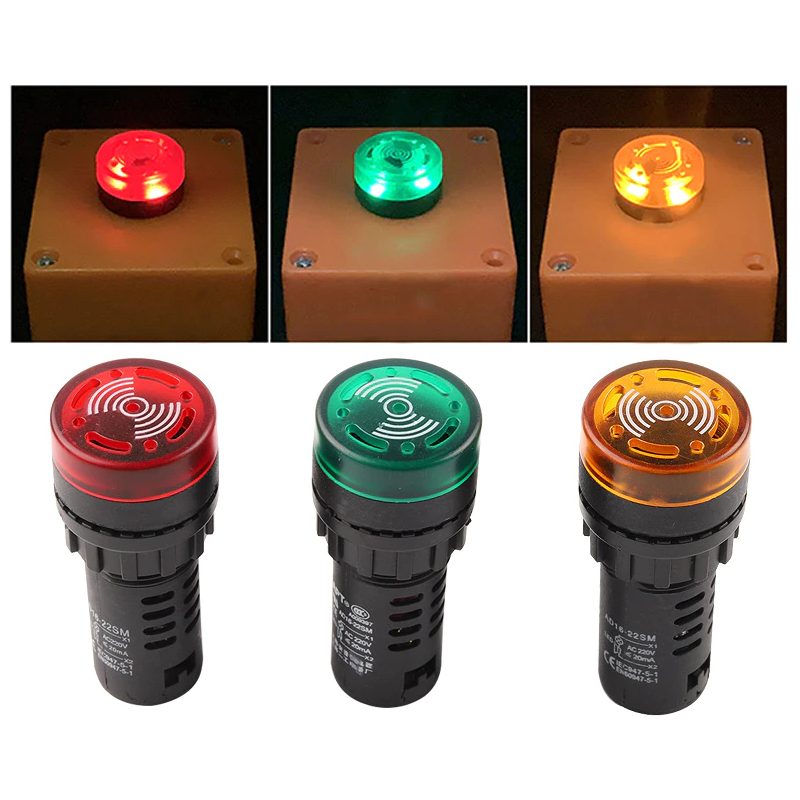

| Colors | Red / Green |
Applications
- Industrial machinery warning systems and status alerts.
- Control panels for automation, HVAC, and security.
- Access control and door automation signal modules.
- Emergency or malfunction notification in electrical enclosures.
Package Contents
- 1× AD22-22SM Flash Buzzer 220VAC (of specified color).
