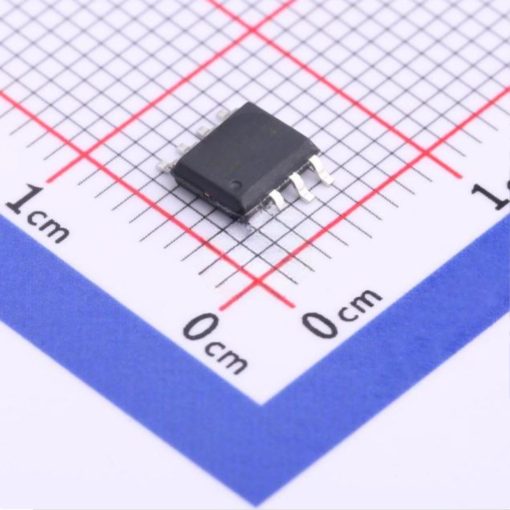

FM5088A SOP-8 lithium battery protection SMD IC

FM5088A SOP-8 lithium battery protection SMD IC

The FM5088A, manufactured by Shenzhen Fuman Electronics Co., Ltd., is a highly integrated lithium battery protection integrated circuit (IC) designed for single-cell lithium-ion or lithium-polymer battery applications. This IC incorporates advanced power MOSFETs, high-precision voltage detection circuits, and delay circuits to provide comprehensive protection against overcharge, overdischarge, overcurrent, and short circuit conditions. Housed in a compact SOP-8 package, the FM5088A is ideal for space-constrained designs in portable electronics and battery-powered devices, such as smartphones, tablets, power tools, and energy storage systems.

Features:

• Internally integrated advanced power MOSFET equivalent to about 16mΩ;
• 2-stage discharge overcurrent protection: over-discharge current 1, load short-circuit current;
• Charge overcurrent protection
• With 0V charging function
• Delay time is set internally
• High-precision voltage detection;
• Low quiescent current consumption: normal operating current3.0uA
• useSOP-8Packaging type: plastic packaging.

Specifications:

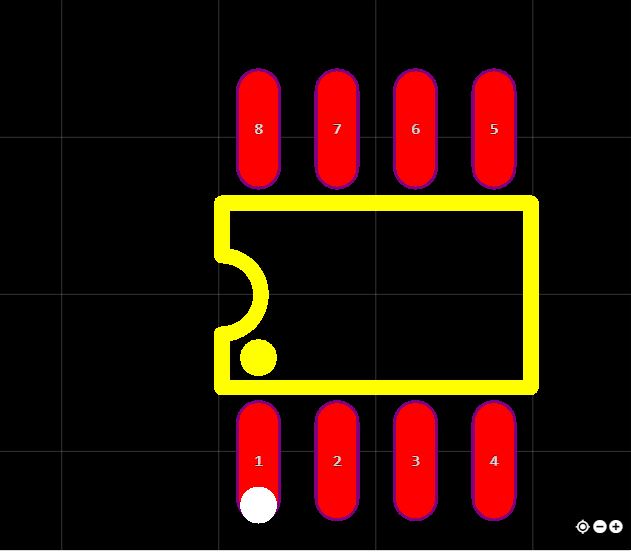

Pin Configuration & Foot Print:

Applications:

• Lithium-ion battery packs for portable devices.
• Smartphones and tablets.
• Power tools.
• Electric vehicles.
• Energy storage systems.
