FQA40N60 N-Channel MOSFET Transistor 40A 600V 3-Pin TO-3PN

FQA40N60 N-Channel MOSFET Transistor 40A 600V 3-Pin TO-3PN

The FQA40N60 N-Channel MOSFET Transistor 40A 600V 3-Pin TO-3PN is a high-performance N-channel MOSFET designed for high-voltage and high-current applications. this device utilizes advanced planar technology to deliver efficient switching performance and low conduction losses. With a drain-source voltage rating of 600V and a continuous drain current capacity of 40A, the FQA40N60 is well-suited for demanding applications such as power supplies, motor control, and lighting systems. Its TO-3PN package offers excellent thermal performance, making it ideal for use in environments where heat dissipation is critical.

Features:

• High-Speed Switching Enables rapid operation with minimal energy loss.
• Low Gate Charge Facilitates efficient drive requirements.
• Low On-Resistance Ensures efficient conduction with minimal power loss.

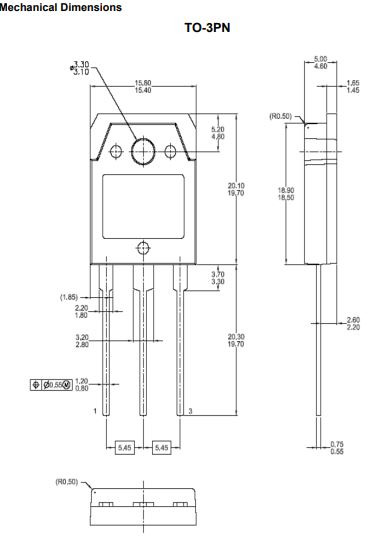

• TO-3PN Package Provides robust construction and efficient heat dissipation.

Specifications:

• Drain-Source Breakdown Voltage (VDS): 600V
• Continuous Drain Current (ID): 40A
• Gate-Source Voltage (VGS): ±20V
• Gate Threshold Voltage (VGS(th)): 4.5V
• Total Gate Charge (Qg): 250nC
• Power Dissipation (PD): 195W
• Operating Junction Temperature (TJ): -55°C to +150°C

Pin Configuration:

Applications:

• Power supplies
• Motor controls
• DC-DC converters
• Inverters
• Audio amplifiers

Package Include:

• 1x FQA40N60 N-Channel MOSFET Transistor 40A 600V 3-Pin TO-3PN.
