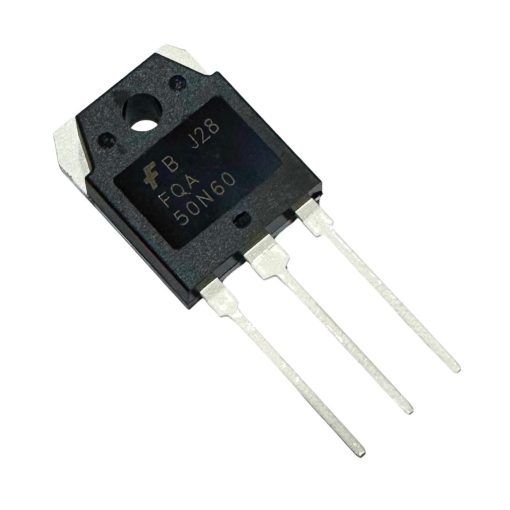

FQA50N60 MOSFET Transistor N-Channel 600V 50A TO-3PN
The FQA50N60 MOSFET Transistor N-Channel 600V 50A TO-3PN is a high-performance N-Channel MOSFET transistor designed for fast switching and efficient power handling in high-voltage applications. Encased in a durable TO-3PN package, it is capable of withstanding 600V drain-to-source voltage and delivering up to 50A of continuous current, making it ideal for use in power supplies, motor drives, inverters, and high-efficiency switching circuits. The transistor offers low on-resistance and high-speed switching characteristics, which help minimize power losses and improve thermal performance in demanding electronic systems. Its robust design ensures reliable operation even under high load conditions.
Features:
- High voltage capability with 600V drain-to-source rating.
- 50A continuous drain current for high-power applications.
- Low R<sub>DS(on)</sub> (on-resistance) for reduced conduction losses.
- Fast switching speed for efficient operation in high-frequency circuits.
- TO-3PN package for enhanced heat dissipation and mechanical durability.
- Avalanche energy rated for ruggedness under inductive loads.
- Suitable for switch mode power supplies (SMPS), motor control, and inverters.
- Reliable performance under high temperature and voltage stress.
Specifications:
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current – Continuous Drain (Id) @ 25°C | 50A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 160mOhm @ 500mA, 10V |
| Vgs(th) (Max) @ Id | 5V @ 4mA |
| Gate Charge (Qg) (Max) @ Vgs | 94 nC @ 10 V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 6300 pF @ 25 V |
| Power Dissipation (Max) | 1040W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package | TO-3PN |
Pin Configuration:
Dimensions:
Applications:
- Switch-Mode and Resonant-Mode.
- Power Supplies.
- DC-DC Converters.
- Laser Drivers.
- AC and DC Motor Drives.
- Robotics and Servo Controls.
Package Contents:
- 1 X FQA50N60 MOSFET Transistor N-Channel 600V 50A TO-3PN
