FQPF18N60C 18A 600V N-Channel MOSFET Transistor TO-220F
The FQPF18N-60C 18A 600V N-Channel MOSFET Transistor TO-220F is a high-performance power MOSFET designed for fast switching and high-efficiency power conversion applications. Built using advanced MOSFET technology, this device provides excellent switching characteristics, high voltage capability, and low conduction losses, making it ideal for modern power electronics systems.
Features:
- N-Channel power MOSFET transistor.
- High drain-source voltage rating up to 600V.
- Continuous drain current up to 18A.
- Low drain-source on-resistance for improved efficiency.
- Fast switching performance for high-frequency circuits.
Specifications:
| Parameter | Value |
|---|---|
| Drain-Source Voltage | 600V |
| Gate-Source Voltage | ±30V |
| Drain Current Continuous (TC=25°C) | 18A |
| Drain Current Continuous (TC=100°C) | 11A |
| Drain Current Pulsed | 72A |
| Power Dissipation | 68W |
| RDS(on) | 0.65Ω max |
| Gate Threshold Voltage | 2V to 4V |
| Total Gate Charge | 48nC typ |
| Operating Junction Temperature | -55°C to +150°C |
| Package | TO-220F |

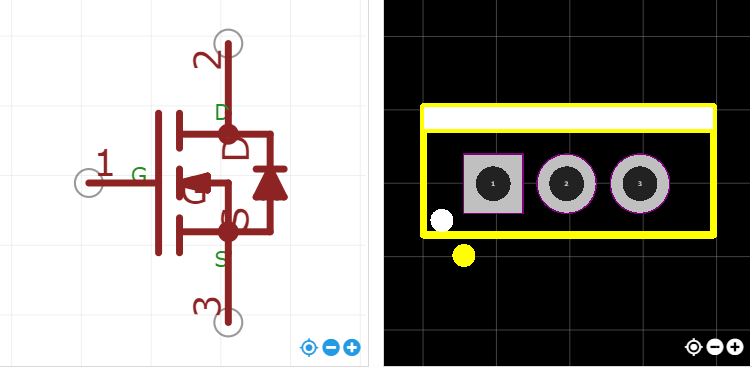

Pin Configuration:

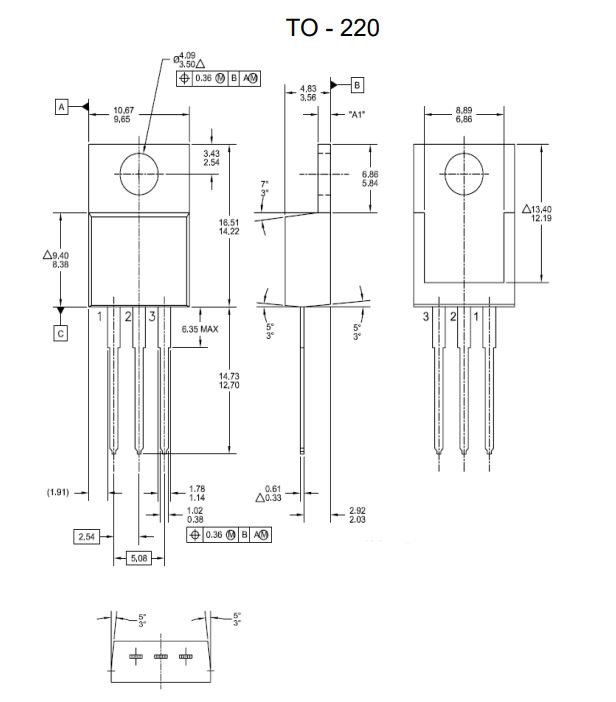

Footprint:
Applications:
- Switch mode power supplies and DC-DC converters.
- Motor drivers and inverter circuits.
- Battery chargers and adapters.
- Power factor correction stages.
- Lighting ballasts and LED drivers.
- Industrial power control and automation systems.
- General high-voltage switching applications.
Package Include:
1x FQPF18N-60C 18A 600V N-Channel MOSFET Transistor TO-220F.
