With optocoupler isolation, the control signal and the power of the controlled device are isolated, which greatly increases the rigidity of the interference. PWM speed regulation widely used to control the start and stop of the motor. The signal input side can be welded to the terminal or pin itself, compatible breadboard output can be soldered to the terminal or direct wire.
Features:
- Compatible with MCU and control board, 3V or 5V signal.
- High-level start, low-level stop, PWM speed regulation.
- Widely used to control the start and stop of the motor, solenoid valve, and other tributary equipment.
- The signal input side can be welded to the terminal or pin itself, compatible breadboard.
- Output can be soldered to the terminal or direct wire.
Specifications:
- Product Type: MOSFET
- Number of Channels: 1 Channel
- Transistor Polarity: N-Channel
- Vds – Drain-Source Breakdown Voltage: 100 V
- Id – Continuous Drain Current: 9.4 A
- Rds On – Drain-Source Resistance: 210 mOhms
- Vgs th – Gate-Source Threshold Voltage: 4 V
- Vgs – Gate-Source Voltage: 20 V
- Qg – Gate Charge: 25 nC
- Minimum Operating Temperature: – 55 C
- Maximum Operating Temperature: + 175 C
- Pd – Power Dissipation: 48 W
- Dimensions: 33.5×16.6mm
Package Includes:

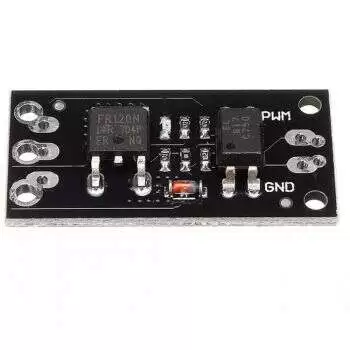

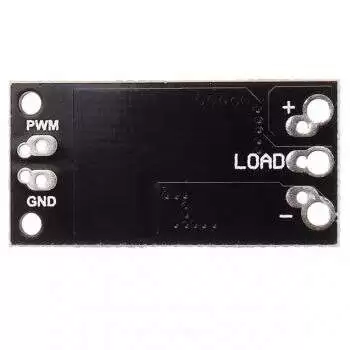

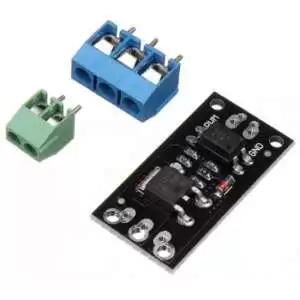

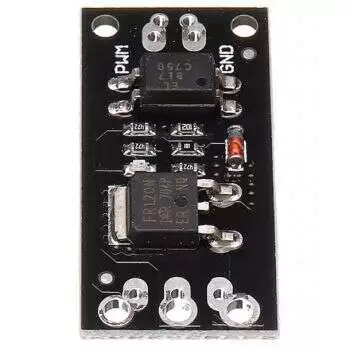

1 x FR120N Mosfet Control Module Replacement Relay
