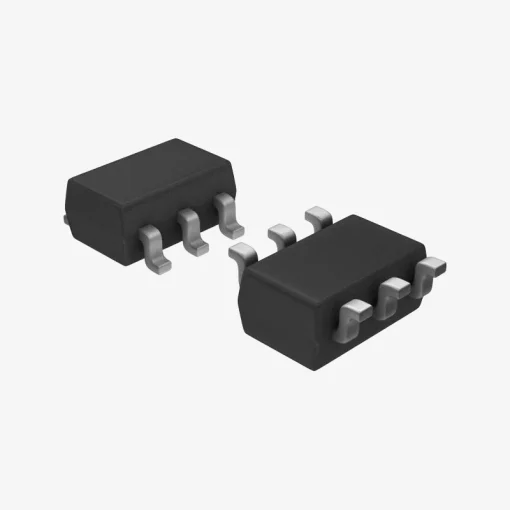

FS8205A 20V 6A 18mΩ@4.5V,6A 1.5W 2 N-Channel SOT-23-6 MOSFET SMD

FS8205A Dual N Channel Power Mosfet Lithium Battery Protection – SOT23-6 Package

Feature

• Advanced trench process technology
• High density cell design for ultra low on-resistance

Specifications:

• Part No: 8205A
• Transistor Type: Mosfet
• No of Channels: 2
• Drain-Source Voltage: 20V
• Gate-Source Voltage VGS: ±10V
• Continuous Drain Current ID: 6A
• Pulsed Drain Current (note 1) IDM: 25A
• Drain-source breakdown voltage: 19V
• Zero gate voltage drain current: 1µA
• Gate-body leakage current: ±100 nA
• Gate threshold voltage (note 3) 0.5 ~ 1.2V
• Drain-source on-resistance (note 3): 25 ~ 32mΩ
• Forward transconductance (note 3): 9S
• Diode forward voltage (note 3): 1.2V
• Junction Temperature: 150℃
• Storage Temperature: -55 ~ +150℃
• Package: Surface Mount
• Package: SOT23-6

Application:

• Battery Protection
• Load Switch
• Power Management

Datasheet: 8205A
