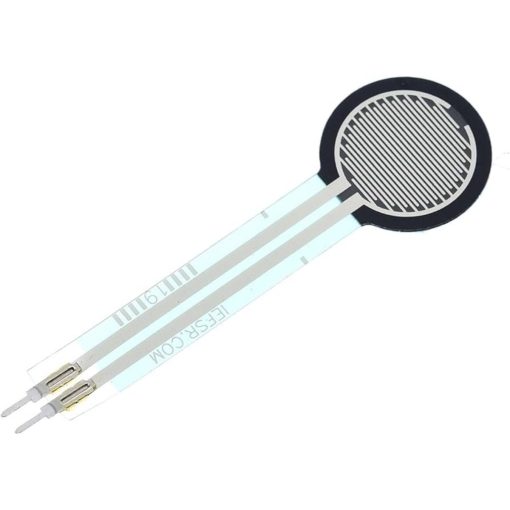

FSR-402 Flexible Force Sensitive Resistor 0.5″
The FSR-402 is a high-quality thin film pressure sensor that changes its resistance based on the applied force. This force-sensitive resistor features a circular sensing area with excellent sensitivity and durability, making it ideal for pressure detection, touch sensing, and force measurement applications.
Features
- Variable Resistance Technology
- High Sensitivity
- Flexible & Thin Profile
- Long Tail Configuration
- Durable Construction
Specifications
| Parameter | Value |
|---|---|
| Sensor Type | Force Sensitive Resistor |
| Active Area Diameter | 0.5 inch |
| Thickness | 0.5mm |
| Resistance Without Force | Greater than 1MΩ |
| Force Sensitivity Range | Approx. 100g to 10kg |
| Response Time | Less than 3µs |
| Operating Voltage | 3.3V to 5V |
| Output Type | Analog Resistance Change |
| Connector Type | 2-Pin Flexible Tail |
| Operating Temperature | -30°C to +70°C |
Applications
- Consumer Electronics.
- Medical Devices.
- Automotive.
- Robotics & Automation.
- Home Automation.
Package Included:
- FSR-402 Flexible Force Sensitive Resistor 0.5″.
