FUJITSU A5W-K Signal Relay 5VDC 1A 10 Pin

FUJITSU A5W-K Signal Relay 5VDC 1A 10 Pin

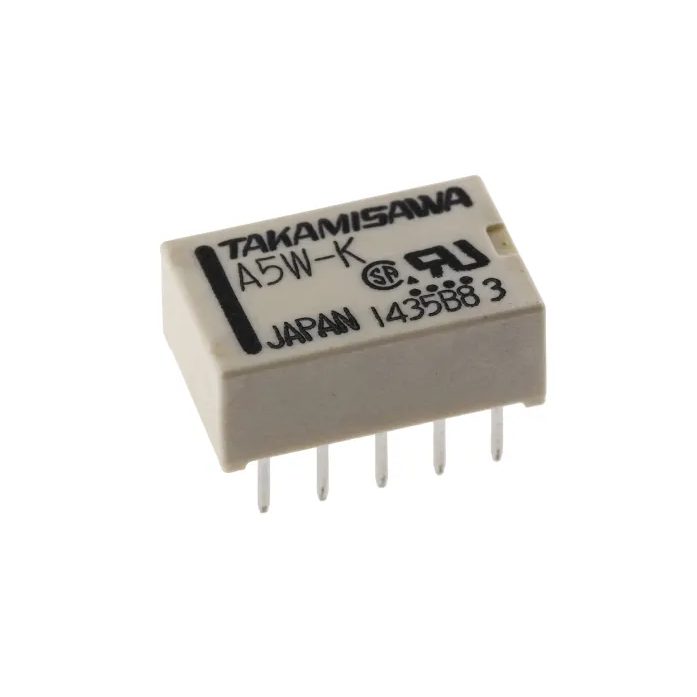

The FUJITSU A5W-K Signal Relay 5VDC 1A 10 Pin is a high-performance signal relay designed for reliable switching in low-power electronic applications. Operating at 5VDC, this relay features a 10-pin configuration with a 1A contact rating, making it suitable for precise signal transmission and control. It offers a compact form factor with high insulation resistance and low power consumption, ensuring stable operation in tightly packed circuit boards. The relay is ideal for applications such as telecommunications equipment, measurement instruments, and industrial control systems where dependable signal integrity is essential. Its durable construction and gold-clad contacts enhance performance and longevity.

Features:

• Compact Design Space-saving 10-pin layout ideal for high-density PCB installations.
• Low Power Consumption Efficient 5VDC coil operation for energy-saving performance.
• High Sensitivity Designed for precise signal switching in low-level applications.
• 1A Contact Rating Suitable for switching small loads with reliability.
• Gold-Clad Contacts Ensures excellent conductivity and long-term performance.
• High Insulation Resistance Provides strong electrical isolation between coil and contacts.
• Durable Build Designed for long electrical and mechanical life in demanding environments.
• RoHS compliant since date code: 0437B8

Dimensions:

Specifications:

• Brand: FUJITSU
• Manufacturer: Takamisawa (Japan)
• Model: A5W-K
• Product Main Category: General-Purpose Relay
• Relay Type: Signal Relay
• Contact Material: Silver Alloy
• Contact Termination: PCB
• Mounting Type: Through-hole
• Enclosure: Sealed plastic case
• Contact Form: DPDT (Double Pole Double Throw)
• Number of Pins: 10Pin
• Coil Voltage: 5VDC
• Current: 1A
• Contact Rating:
  • At 30VDC:  1A
  • At 120VAC:  0.5A
• Coil Resistance: 178 Ω
• Switching Capacity: 62.5VA / 30W
• Power Consumption: 140 mW
• Dielectric Strength: 1000VAC between open contacts
• Insulation Resistance(at 500VDC): 1000 MΩ
• Operating Temperature Range: -40°C to +85°C
• Dimensions:
  • Length: 14.7mm
  • Width: 9.4mm
  • Hight: 5.5mm

Package Contents:

• 1 X  FUJITSU A5W-K Signal Relay 5VDC 1A 10 Pin

Datasheet:

• FUJITSU A5W-K
