FUJITSU NA12W-K Signal Relay 12VDC 2A 8 Pin
The FUJITSU NA12W-K Signal Relay 12VDC 2A 8 Pin is a compact, high-performance 8-pin relay designed for switching low-level signals with high reliability. Operating on a 12VDC coil voltage, this relay is ideal for use in electronic and telecommunication circuits where stable performance and long-term durability are essential. It features a highly sensitive design with a low power consumption coil and a sealed enclosure for protection against dust and contaminants. The NA12W-K offers excellent electrical characteristics, including a high dielectric strength and fast response time, making it suitable for signal switching in instrumentation, automation, and control systems. Its standardized 8-pin layout ensures easy integration into PCBs and sockets.
Features:
- Compact and lightweight signal relay for space-saving PCB mounting.
- Low power consumption with a 12VDC coil voltage.
- High sensitivity and reliable signal switching.
- Fully sealed construction to protect against dust and environmental contaminants.
- High dielectric strength for enhanced safety and insulation.
- Suitable for low-level signal control in various electronic and telecommunication applications.
- Standard 8-pin configuration for easy installation and replacement.

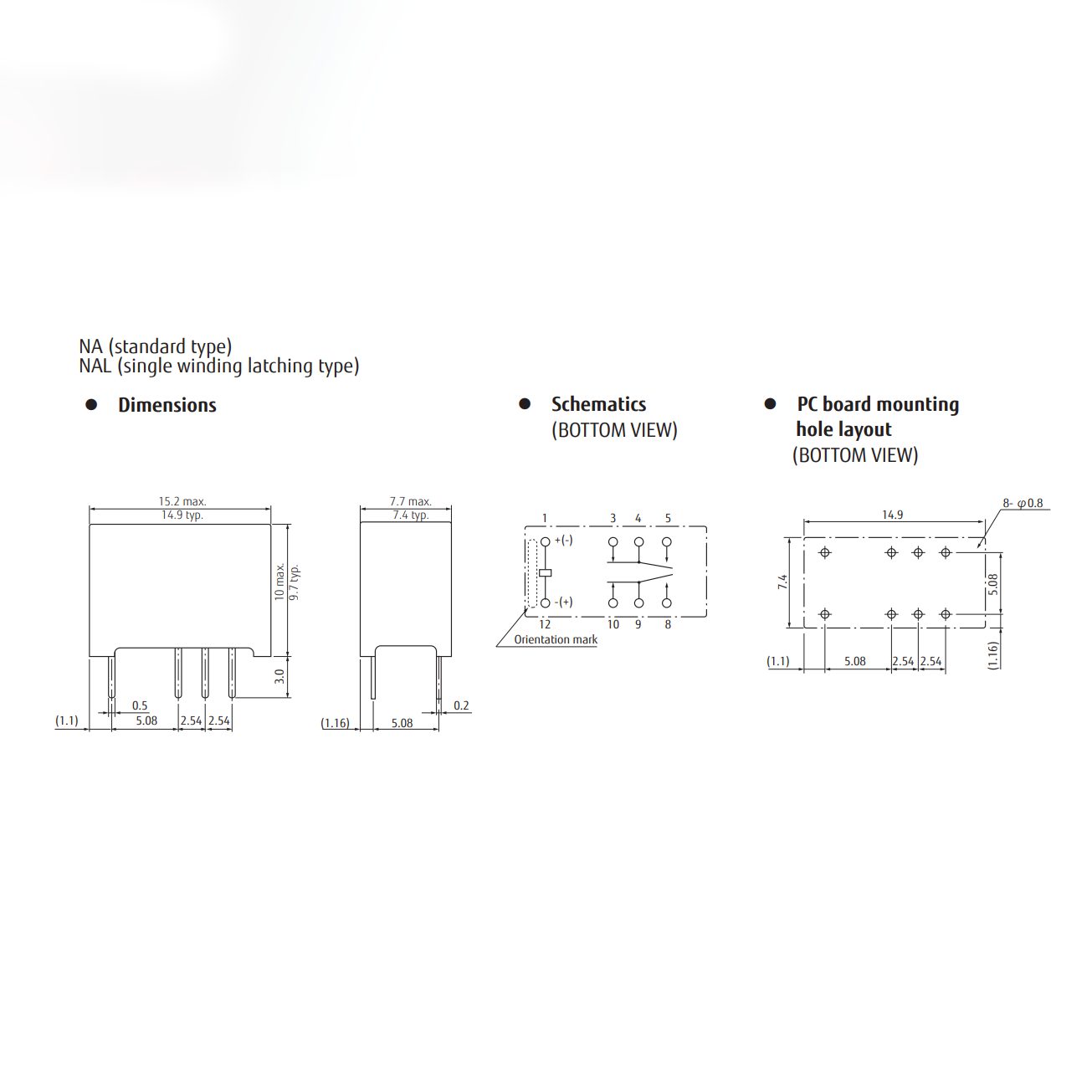

Dimensions:
Specifications:
- Brand: FUJITSU
- Manufacturer: Takamisawa (Japan)
- Model: NA12W-K
- Product Main Category: General-Purpose Relay
- Relay Type: Signal Relay
- Contact Material: Silver Alloy
- Contact Termination: PCB
- Mounting Type: Through-hole
- Enclosure: Sealed plastic case
- Contact Form: DPDT (Double Pole Double Throw)
- Number of Pins: 8Pin
- Coil Voltage: 12VDC
- Current: 2A
- Contact Rating:
- At 30VDC: 1A
- At 120VAC: 0.5A
- Coil Resistance: 1028 Ω
- Switching Capacity: 62.5VA / 30W
- Power Consumption: 80mW – 120 mW
- Dielectric Strength: 1000VAC between open contacts
- Insulation Resistance(at 500VDC): 1000 MΩ
- Operating Temperature Range: -40°C to +85°C
- Dimensions:
- Length: 14.9mm
- Width: 7.4mm
- Hight: 9.7mm
Applications:
- Telecommunication Equipment.
- Measurement and Test Instruments.
- Industrial Control Systems.
- Security and Surveillance Systems.
- Medical Electronics.
- Audio and Broadcasting Equipment.
- Computing and Data Processing Units.
- Consumer Electronics.
Package Contents:
- 1 X FUJITSU NA12W-K Signal Relay 12VDC 2A 8 Pin
