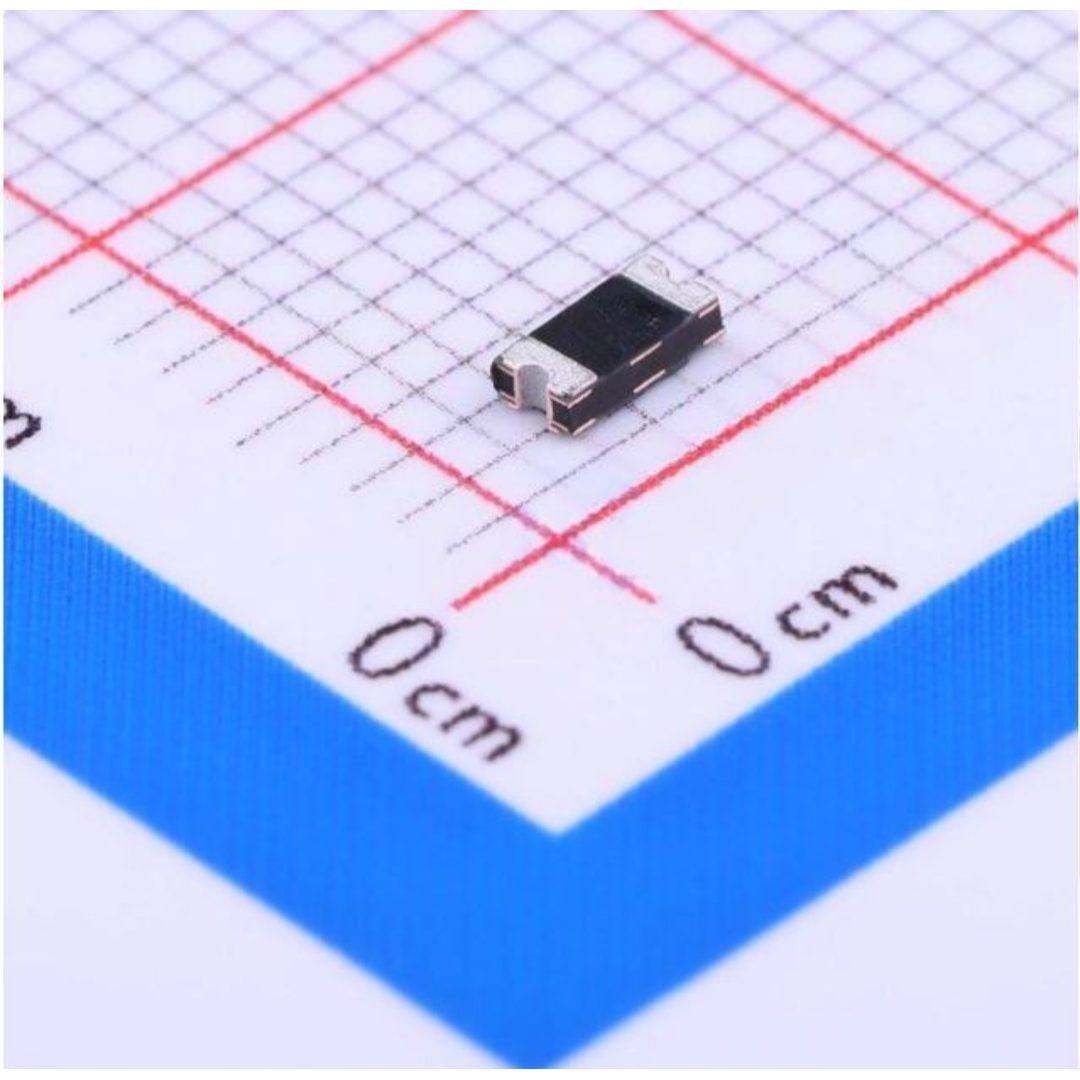

Resettable Fuses PTC 24V 200mA WT-1206-020 SMD
| Parameter | Value |
|---|---|
| Manufacturer | Weite |
| Type | SMD PTC Fuse |
| Model Number | WT-1206-020 |
| Datasheet | WT1206-020 |
3.00 EGP
Buy NowResettable Fuses PTC 24V 200mA WT-1206-020 SMD
The Resettable Fuses PTC 24V 200mA WT1206-020 SMD is a surface-mount PPTC resettable fuse engineered to protect electronic circuits from overcurrent events. It features a hold current of 200mA, meaning it can carry up to 200mA without tripping, and a trip current of 400mA, at which it transitions to a high-resistance state to limit current flow. The device supports a maximum voltage of 24VDC and can interrupt fault currents up to 100A, making it suitable for low-power applications requiring reliable protection.
Features:
- Compact 1206 package saves board space.
- RoHS compliant and lead-free.
- Halogen-free.
- Fast response to fault currents.
- Symmetrical design for easy integration.
Specifications:
|
Parameter |
Value |
|---|---|
|
Manufacturer |
Weite |
|
Model Number |
WT1206-020 |
|
Hold Current |
0.20A |
|
Trip Current |
0.40A |
|
Maximum Voltage |
24.00VDC |
|
Maximum Fault Current |
100.00A |
|
Typical Power Dissipation |
0.60W |
|
Maximum Time to Trip |
8.00s at 0.10A |
|
Initial Resistance (min) |
0.50Ω |
|
Post-Trip Resistance (max) |
2.60Ω |
|
Operating Temperature |
-40°C to +85°C |
|
Datasheet |
|
|
Certifications |

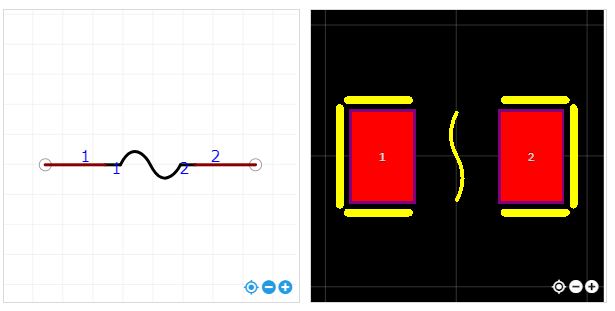

Dimensions & Marking & Foot Print:
| Parameter | Value |
|---|---|
| A | 3.00mm – 3.40mm |
| B | 1.40mm – 1.80mm |
| C | 0.65mm – 1.15mm |
| D | 0.25mm – 0.75mm |
| E | 0.10mm |
| Marking | XF |
Applications:
- USB port protection for USB 2.0, 3.0, and OTG.
- HDMI source protection.
- Protection for PDAs and digital cameras.
- Game console port protection.
- PC motherboards plug and play protection.
- Consumer electronics power lines.
