GD4528B Dual Monostable Multivibrator CMOS IC 15V 600µA DIP-16
The GD4528B is a high-performance CMOS Dual Retriggerable Resettable Monostable Multivibrator. Each of the two independent multivibrators features an active LOW input (), an active HIGH input (), and an overriding active LOW Clear Direct input (). The device is designed to provide precise output pulses where the width is determined by an external resistor-capacitor (RC) network.
✅Features
- Flexible Triggering
- Precision Timing
- High Consistency
- Wide Resistor Range
- Independent Duty Cycle
- Overriding Clear
📜📚Specifications
| Parameter | Test Conditions | Typical Value | Units |
|---|---|---|---|
| Operating Voltage (VDD) | Recommended range | 4.5 to 15 | V |
| Operating Temperature | Standard range | -40 to +85 | °C |
| External Timing Resistor (Rt) | Any VDD | 5 to 2000 | kOhm |
| External Timing Capacitor (Ct) | Any VDD | No Limits | F |
| Output Pulse Width Variation | VDD = 15V, Device to Device | 3 | % |
| Output Pulse Width Stability | -40°C to +85°C (VDD = 10V) | 1 | % |
| Propagation Delay (I0 to Q) | VDD = 10V | 90 | ns |
| Output Transition Time | VDD = 10V | 32 | ns |
| Quiescent Power Supply Current | VDD = 5V, 25°C | 20 | uA |
| Min. Negative Pulse Width (I0) | VDD = 10V | 32 | ns |
| Min. Positive Pulse Width (I1) | VDD = 10V | 32 | ns |

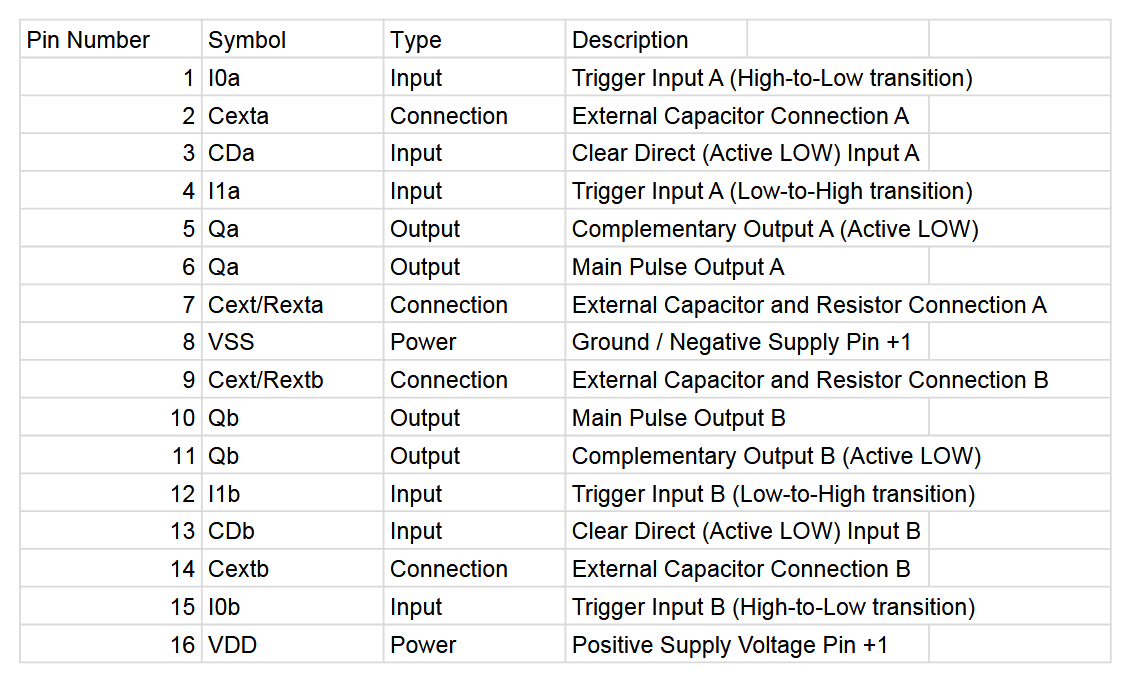

⚓Pin Configuration

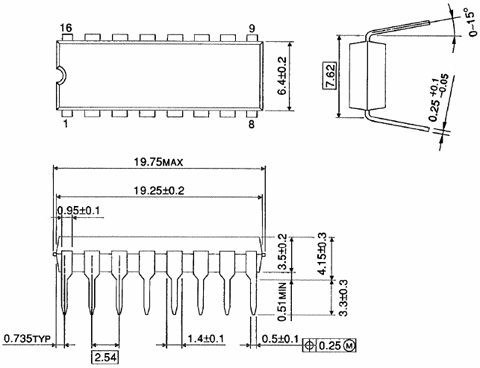

Dimensions are in mm
💻Applications
- Pulse Width Calculation
- Retriggerable Operation
- Remote Trimming
- Edge Triggering
🎁Package Content
- 1 x GD4528B Dual Monostable Multivibrator CMOS IC 15V 600µA DIP-16
