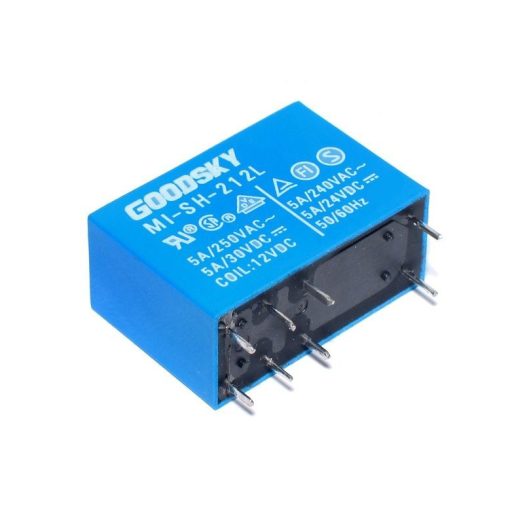

Good Sky MI-SH-212L DPDT Relay 12V 5A 8 Pin
The Good Sky MI-SH-212L DPDT Relay 12V 5A 8 Pin is a wash-tight (RT-III) two-pole power relay from the MI-2P family, featuring DPDT contacts rated for 5A switching at 250VAC and designed for demanding appliance and control applications with reinforced insulation, 5,000VAC coil-to-contact dielectric strength, 10,000V surge strength, and industry certifications including UL and VDE for reliable long-term operation.
Features
- Two-pole (MI-2P) DPDT contact arrangement suitable for versatile switching configurations.
- 5A rated switching capacity at 250VAC and 5A at 30VDC for resistive loads.
- Wash-tight RT-III sealing (SH suffix) for enhanced moisture resistance and industrial environments.
- Designed insulation distance ≥8mm and coil-to-contact dielectric strength ≥5,000VAC.
- Surge strength 10,000V (1.2×50µs) between coil and contact for transient robustness.
- UL approvals including 1/8HP at 120VAC/250VAC and TV-3 120VAC rating.
- Contact material: silver alloy for reliable conductivity and wear resistance.
- Compliant with RoHS and REACH; halogen-free and Class-F insulation options available.
Specifications
| Parameter | Value |
|---|---|
| Contact Rating | 5A, 250VAC; 5A, 30VDC |
| Contact Form | DPDT |
| Contact Material | AgAlloy |
| Switching Capacity | 1/8HP@120VAC/250VAC |
| Insulation Distance | ≥8mm |
| Dielectric Strength (Coil and Contact) | ≥5000VAC,1min |
| Between Contacts Dielectric Strength | 1000VAC, 1min |
| Surge Strength | 10000V (1.2×50µs) |
| Max Allowable Voltage | AC240V; DC110V |
| Max Allowable Current | 5A |
| Max Allowable Power | 1250VA; 150W |
| Operate Time | ≤20ms(LType) |
| Release Time | ≤8ms |
| Insulation Resistance | ≥100MΩ@500VDC |
| Electrical Life | 1×10^5Operations @ Rated Resistive Load |
| Mechanical Life | 1×10^7Operations (no Load) |
| Operating Temp Range | -30°C to +70°C |
| Humidity Range | 45%–85%RH |
| Vibration Endurance | 10–55Hz,±1.5mm |
| Shock Endurance | 1000m/S² |
Applications
- Cooking appliances, air conditioners, and domestic appliance control circuits.
- Audio equipment and consumer electronics requiring compact DPDT switching.
- Industrial control modules and relay-based automation panels.
- General purpose load switching and isolation in control systems.
- Environments requiring wash-tight or moisture-resistant relay assemblies.
