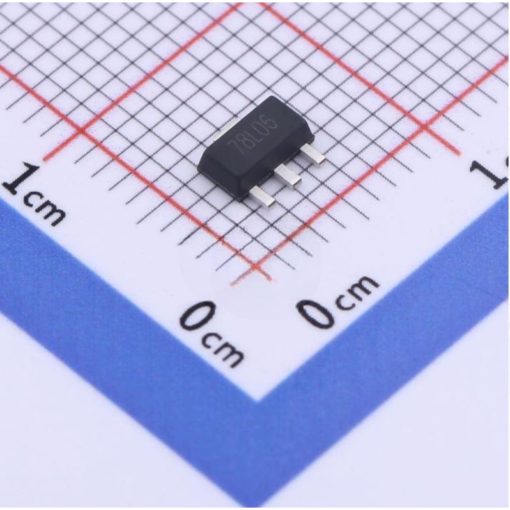

GOODWORK 78L06 100mA 48dB@(120Hz) Fixed 6V Positive 20V SOT-89-3 Voltage Regulators (LDO) SMD
The GOODWORK 78L06 is a three-terminal positive voltage regulator engineered to deliver a stable 6V output Capable of providing up to 100mA of output current, it operates with input voltages 20V. Encased in a compact SOT-89-3 package, this regulator is optimized for surface-mount technology (SMT), making it an excellent choice for space-constrained electronic designs such as portable devices, sensors, and microcontrollers.
Features:
- Fixed 6V output voltage for consistent power supply.
- High PSRR of 48dB @ 120Hz for minimal noise interference.
- Supports up to 100mA output current for low-power devices.
- Dropout voltage of 1.2V for improved efficiency.
- Input voltage up to 20V for versatile use.
Specifications:
| Parameter | Specification |
|---|---|
| Category | Power Management (PMIC)/Voltage Regulators – Linear, Low Drop Out (LDO) Regulators |
| Manufacturer | GOODWORK |
| Package | SOT-89-3 |
| Output Current | 100mA |
| Power Supply Rejection Ratio (PSRR) | 48dB@(120Hz) |
| Standby Current | 6mA |
| Voltage Dropout | 1.7V |
| Output Type | Fixed |
| Output Voltage | 6V |
| Output Configuration | Positive |
| Datasheet | 78L06 |
| Number of Outputs | 1 |
| Operating Temperature | 0℃~+150℃@(Tj) |
| Voltage – Supply | 20V |
| Certifications | Quality Management System |
Pin Configuration & Foot Print:
Applications:
- Three-terminal positive voltage regulator.
- Battery-powered devices requiring 6V output.
- Noise-sensitive applications, including audio circuits.
- Communication systems and control units.
