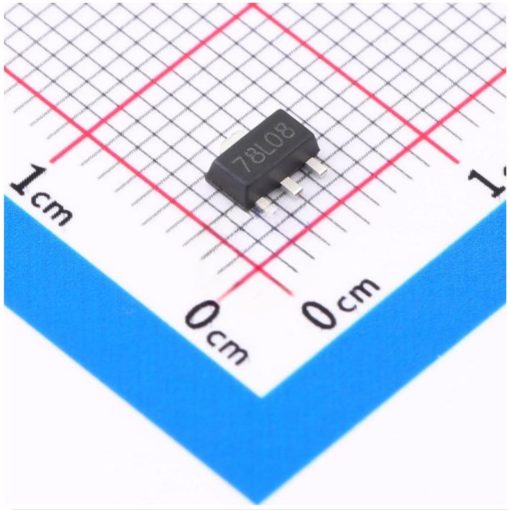

GOODWORK 78L08 100mA 46dB@(120Hz) Fixed 8V Positive 23V SOT-89 Voltage Regulators (LDO) SMD
The GOODWORK 78L08 is a three-terminal positive voltage regulator designed to deliver a stable 8V output . Capable of providing up to 100mA of output current, it operates with input voltages Up to 23V. Encased in a compact SOT-89 package, this regulator is optimized for surface-mount technology (SMT), making it an excellent choice for space-constrained electronic designs such as portable devices, sensors, and microcontrollers.
Features:
- Fixed 8V output voltage for stable power delivery.
- High PSRR of 46dB @ 120Hz for reduced noise interference.
- Supports up to 100mA output current for powering small devices.
- Dropout voltage of 1.7V for improved efficiency.
Specifications:
| Parameter | Specification |
|---|---|
| Category | Power Management (PMIC)/Voltage Regulators – Linear, Low Drop Out (LDO) Regulators |
| Manufacturer | GOODWORK |
| Package | SOT-89 |
| Output Current | 100mA |
| Power Supply Rejection Ratio (PSRR) | 46dB@(120Hz) |
| Standby Current | 4mA |
| Voltage Dropout | 1.7V |
| Output Type | Fixed |
| Output Voltage | 8V |
| Output Configuration | Positive |
| Datasheet | 78L08 |
| Number of Outputs | 1 |
| Operating Temperature | 0℃~+150℃@(Tj) |
| Voltage – Supply | 23V |
| Certifications | Quality Management System |
Pin Configuration and Foot Print:
Applications:
- Battery-powered devices requiring 8V output.
- Noise-sensitive applications such as audio circuits.
- Three-terminal positive voltage regulator.
