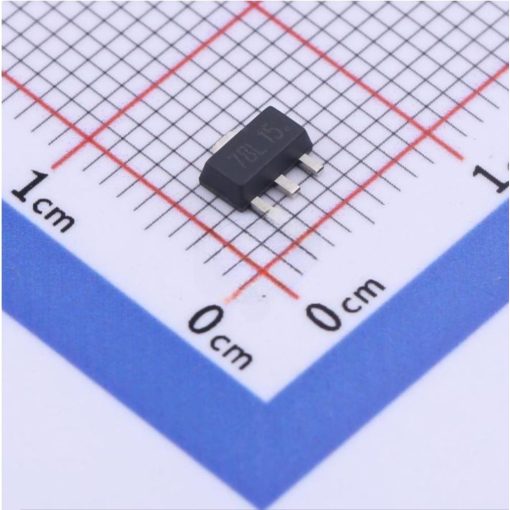

GOODWORK 78L15 100mA 39dB@(120Hz) Fixed 15V Positive 30V SOT-89-3 Voltage Regulators (LDO) SMD
The GOODWORK 78L15 is a three-terminal positive voltage regulator designed to deliver a stable 15V output Capable of providing up to 100mA of output current, it operates with input voltages ranging from 17V to 30V. Encased in a compact SOT-89-3 package, this regulator is optimized for surface-mount technology (SMT), making it an excellent choice for space-constrained electronic designs such as portable devices, sensors, and microcontrollers.
Features:
- Fixed 15V output voltage for stable power delivery.
- High PSRR of 39dB @ 120Hz for reduced noise.
- Supports up to 100mA output current for powering low-power devices.
- Dropout voltage of 1.7V for improved efficiency.
Specifications:
| Parameter | Specification |
|---|---|
| Category | Power Management (PMIC)/Voltage Regulators – Linear, Low Drop Out (LDO) Regulators |
| Manufacturer | GOODWORK |
| Package | SOT-89-3 |
| Output Current | 100mA |
| Power Supply Rejection Ratio (PSRR) | 39dB@(120Hz) |
| Standby Current | 4.6mA |
| Voltage Dropout | 1.7V |
| Output Type | Fixed |
| Output Voltage | 15V |
| Output Configuration | Positive |
| Datasheet |
78L15 |
| Number of Outputs | 1 |
| Operating Temperature | 0℃~+150℃@(Tj) |
| Voltage – Supply | 30V |
| Certifications | Quality Management SystemEnvironmental Management System |
Pin Configuration & Foot Print:
Applications:
- Three-terminal positive voltage regulator.
- Noise-sensitive applications such as audio circuits.
- Battery-powered devices requiring 15V output.
- Communication systems and control units.
