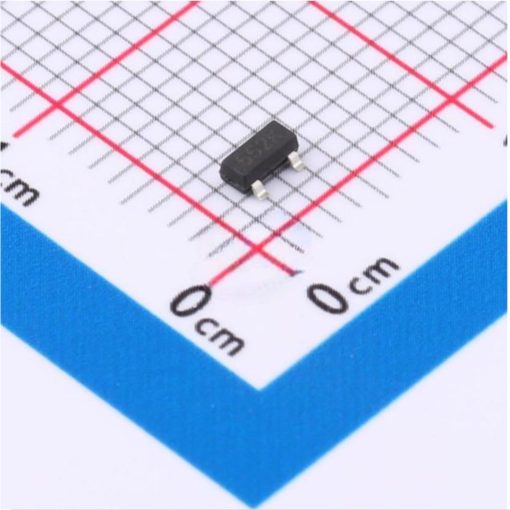

GOODWORK XC6206P332MR 40dB@(1kHz) 250mA Fixed 3.3V Positive 8V SOT-23 Voltage Regulators (LDO) SMD
The GOODWORK XC6206P332MR is a high-precision, low-dropout (LDO) linear voltage regulator engineered to deliver a stable 3.3V output with a maximum current of 200mA. It is designed for applications requiring efficient power management with minimal power loss, making it an excellent choice for battery-powered and portable electronic devices. The regulator operates within an input voltage range of 3.55V to 6.0V and maintains high output voltage accuracy of ±1% for outputs above 2.0V, ensuring reliable performance across various conditions.
Features:
- Maximum output current: 250mA
- Dropout voltage: 160mV@50mA Maximum
- operating voltage: 6.5V
- Output voltage range: 3.3V
- High accuracy: 2.5%
- Very low quiescent
- operating current: 3A (typical) Built-in overcurrent
- and short-circuit protection circuit Operating
- temperature range: 0C~70C
Specifications:
| Parameter | Specification |
|---|---|
| Category | Power Management (PMIC)/Voltage Regulators – Linear, Low Drop Out (LDO) Regulators |
| Manufacturer | GOODWORK |
| Package | SOT-23 |
| Datasheet | |
| Output Current | 200mA |
| Standby Current | 6μA |
| Voltage Dropout | 31mV@(10mA) |
| Output Type | Fixed |
| Output Voltage | 3.3V |
| Output Configuration | Positive |
| Number of Outputs | 1 |
| Voltage – Supply | 6.5V |
| Operating Temperature | 0℃~+70℃ |
| Features | Short Circuit Protection; Over Current Protection |
| Certifications | Quality Management System |
Pinout and Foot Print:
Applications:
- Smartphones and mobile phones.
- Portable game consoles.
- Digital still cameras and camcorders.
- Digital audio equipment.
- Reference voltage sources.
- Multi-function power supplies.
