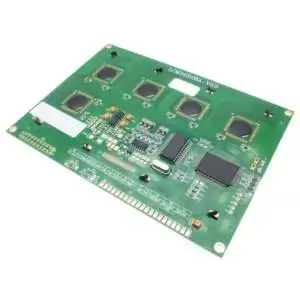

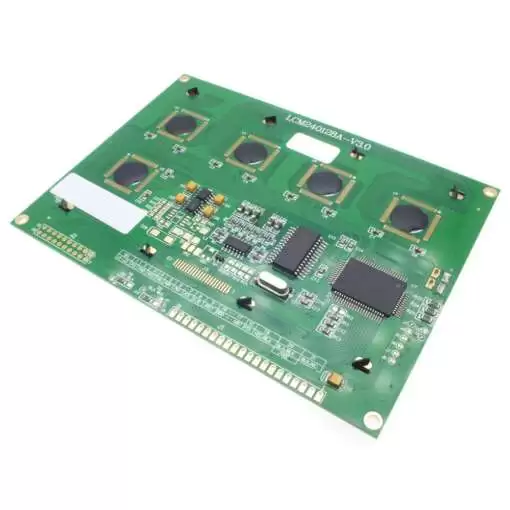

Description
LCD is blue background with 240×128 monochrome white pixels, UCI6963 controller, that is extremely common and well documented,8080 8-bit parallel interface, single led backlight with white color included can be dimmed easily with a resistor or PWM, stn- blue lcd negative, wide operating temperature range and wide view angle, rohs compliant, optional 4-wire resistive touch panel and its connector, optional 3.3v or 5v power supply and pin header connection.
It’s easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
Specifications:
| Part Number | LCM240128A |
| Display Format | 240×128 Dots |
| Interface | 8080 8-bit Parallel |
| IC or Equivalent | UCI6963 |
| Appearance | White on Blue |
| Diagonal Size | 4.7“ |
| Connection | Pin Header, FFC-Connector |
| Outline Dimension | 144.0(W)x104.0(H)x12.1(T)mm |
| Visual Area | 111.40×64.00mm |
| Active Area | 107.95(W)x57.55(H) |
| Dot (Pixel) Size | 0.40×0.40mm |
| Dot (Pixel) Pitch | 0.45×0.45mm |
| IC Package | COB |
| Display Type | STN-LCD Blue |
| Touch Panel Optional | Yes |
| Sunlight Readable | Yes |
| Viewing Direction | 6O’clock |
| Brightness(Typ) | 80cd/m2 |
| Backlight Color | White Color |
| Backlight Current (Typ) | 140mA |
| Power Supply(Typ) | 5V |
| Supply Current for LCM(Max) | 20mA |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |

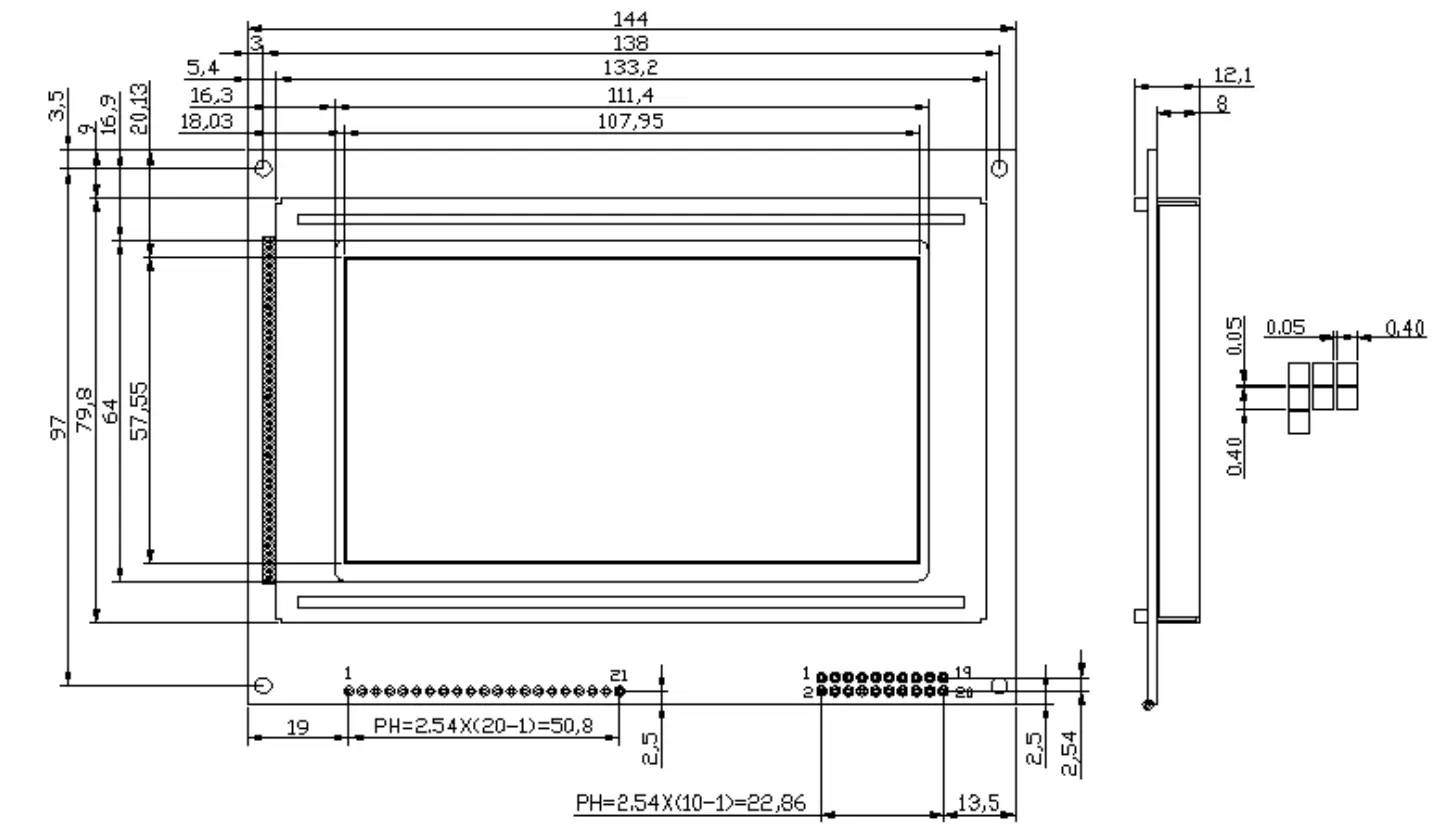

Drawing:

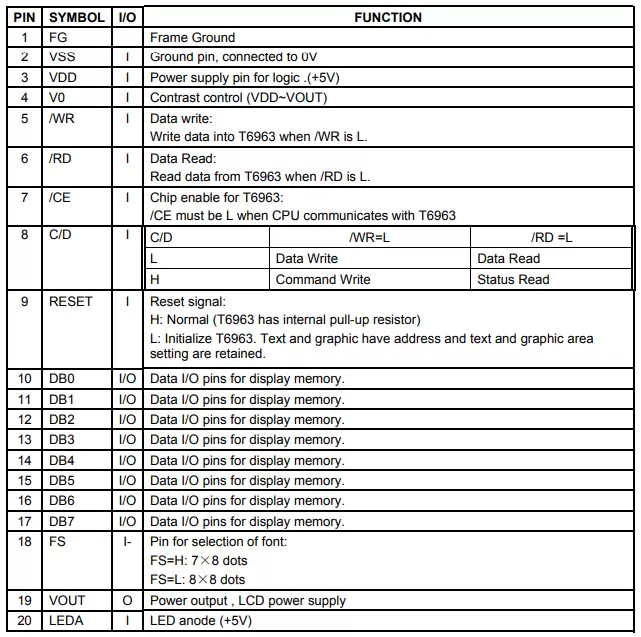

Pin Out
