GS1K SMA(DO-214AC) SMD Diodes – General Purpose

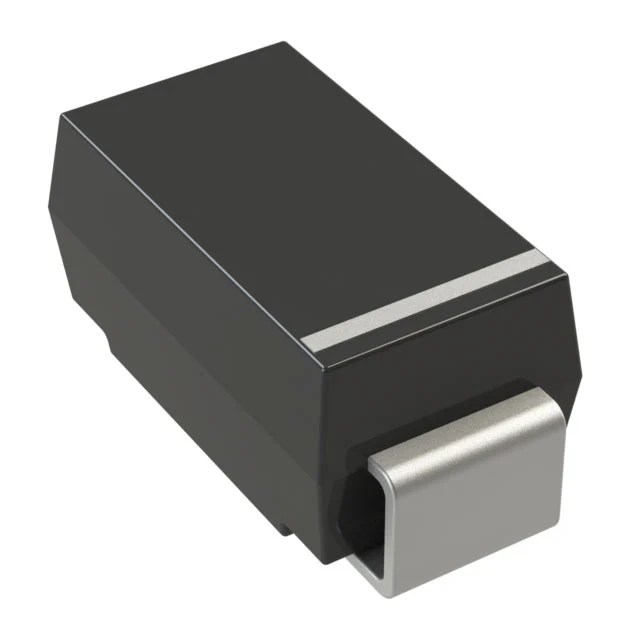

The GS1K SMA (DO-214AC) SMD Diode is a surface-mount general purpose rectifier diode designed for efficient AC/DC rectification in a variety of electronic power and signal applications. Manufactured in a standard SMA (DO-214AC) package, the GS1-K series offers a reliable and compact solution for designers requiring robust rectification performance in automated assembly environments
Features:
- Surface mount general purpose rectifier diode in SMA (DO-214AC) package.
- Repetitive peak reverse voltage up to 800 V.
- Average forward current rating of 1 A.
- Low forward voltage drop for efficient conduction.
- High forward surge capability up to 30 A.
- Glass passivated junction with low leakage characteristics.
Specifications:
| Parameter | Value |
|---|---|
| Maximum Repetitive Reverse Voltage | 800V |
| Maximum RMS Voltage | 560V |
| Maximum DC Blocking Voltage | 800V |
| Average Forward Rectified Current | 1A |
| Peak Forward Surge Current (8.3ms) | 30A |
| Maximum Instantaneous Forward Voltage | 1.1V |
| Maximum Reverse Current (at 25°C) | 5μA |
| Maximum Reverse Current (at 125°C) | 50μA |
| Typical Junction Capacitance | 15pF |
| Operating Temperature Range | -55 to150°C |
| Thermal Resistance (Junction to Ambient) | 88°C/W |
| Thermal Resistance (Junction to Lead) | 27°C/W |
| Package | SMA(DO-214AC) |

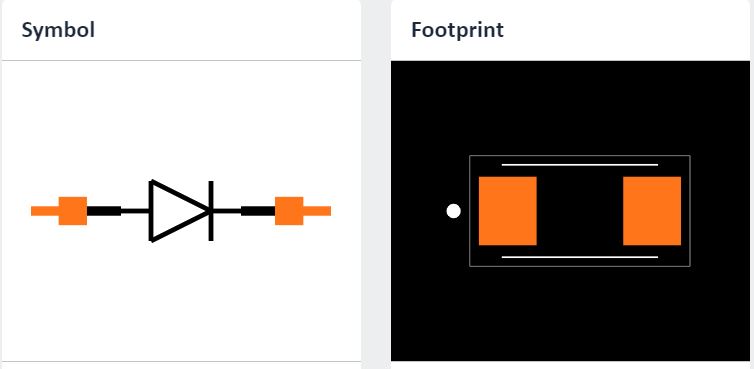

Pin Configuration:
Footprint:
Applications:
- Power supply rectification in consumer electronics.
- Freewheeling diodes in switching circuits.
- Polarity protection in battery-powered devices.
- Bridge rectifiers for AC-DC conversion.
- General purpose clamping and snubber networks in industrial controls.
